Alterra 570

Works Hard. Rides Smooth.

Unmatched comfort for the to-do list and the trail.

Highlights

Double A-Arm

Front and Rear Suspension

3000-lb

Winch

Electronic

Power Steering

Front and Rear

Steel Racks

Halogen

Headlights

Single-Rider

Alterra 570 EPS

A smooth ride ready for the next job or off-road journey.

  • Electric Power Steering
  • Double A-Arm Front and Rear Suspension
  • Class-Leading 10-inch Front and Rear Travel
  • 1,050-lb Towing Capacity
  • 545cc Liquid-Cooled Single-Cylinder EFI Engine

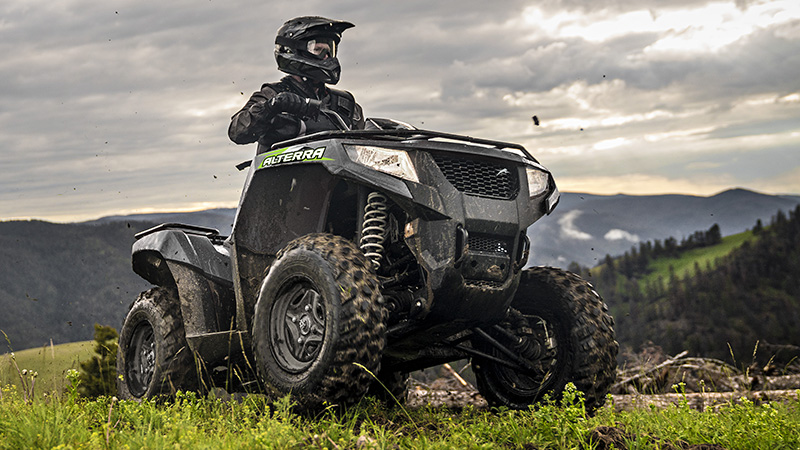

  • 11-inch Ground Clearance
  • Standard Accessories: Steel Front and Rear Rack, Standard Front Bumper, Standard Front Tow Hook

*Vehicle is coming soon. Please contact your local dealer for more information

**Freight and set-up cost not included

Alterra 570 EPS
  • Colors
Single-Rider

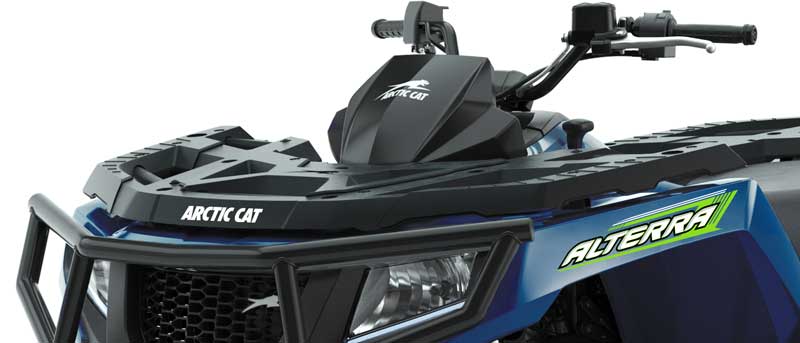

Alterra 570 EPS SE

  • Electric Power Steering
  • Double A-Arm Front and Rear Suspension
  • Class-Leading 10-inch Front and Rear Travel
  • 1,050-lb Towing Capacity
  • 545cc Liquid-Cooled Single Cylinder EFI Engine
  • 11-inch Ground Clearance
  • Standard Accessories: Overmolded Plastic Front and Rear Rack, Premium Front Bumper, HD Front Tow Hooks, 3000-lb WARN Winch

*Vehicle coming soon. Please contact your local dealer for more information

**Freight and set-up cost not included

Alterra 570 EPS SE
  • Colors
Alpine Accessory Kit

This kit includes:

  • Plow Mount Kit
  • Winch Mount Kit (EPS Model Only)
  • Plow Blade Kit
  • Handwarmer Kit

Alterra 570

Alterra 570

Vehicle Specs

Print Specs

Engine & Drivetrain

Alterra 570 EPS Alterra 570 EPS SE
Engine Type Liquid-Cooled, Single Cylinder Single Overhead Cam, Gas Engine
Displacement 545cc
Drive Train CVT
Drive System RTS (Rapid Traction System)
Engine Braking System Standard
Fuel System Electronic Fuel Injection (EFI)
Gear Selection H,L,N,R,P
Front Differential 2WD/4WD Differential
Rear Differential Spool

Steering & Suspension

Alterra 570 EPS Alterra 570 EPS SE
Steering Electronic Power Steering
Front Suspension Double A-Arm with 10 in. (25 cm) Travel
Rear Suspension Double A-Arm with 10 in. (25 cm) Travel
Brake System Single Lever Front, All Wheel Hydraulic Disc
Foot Brake Hydraulic Rear
Parking Brake Park in Transmission
Front Tires 25 x 8 - 12
Rear Tires 25 x 10 - 12
Wheels Steel Aluminum

Performance

Alterra 570 EPS Alterra 570 EPS SE
Total Capacity 515 lbs (233.6 kg)
Front Rack 100 lbs (45.3 kg)
Rear Rack 200 lbs (90.7 kg)
Towing Capacity 1,050 lbs (476 kg)

Dimensions

Alterra 570 EPS Alterra 570 EPS SE
Overall Length 83.4 in. (212 cm)
Overall Width 48.5 in. (123 cm)
Overall Height 49.5 in. (125.7 cm)
Overall Weight 699 lbs (317 kg) (Dry)
Wheel Base 52 in. (132 cm)
Ground Clearance 11 in. (28 cm)
Fuel Capacity 5.7 gal (21.6 L)
Hitch Standard/2 in. (5 cm) Receiver

Color Options

Alterra 570 EPS Alterra 570 EPS SE
Skid Plate Standard
Standard Colors Dynamic Charcoal Earth Blue

Features

Alterra 570 EPS Alterra 570 EPS SE
Standard Instrumentation Digital Gauge, Speedometer, Odometer, Tripmeter, RPM, Gear Indicator, Fuel Gauge, Low Fuel Warning, Clock, High Beam, Air Intake Temp, Coolant Temp, Coolant Temp Warning, Battery Voltage, Hour Meter
Additional Instrumentation N/A
Lighting Dual Beam Headlights, Dual Brake Lights/Taillights
Start Method Electric Start
Standard Accessories Steel Front and Rear Racks, Standard Front Bumper, Standard Front Tow Hooks Overmolded Front and Rear Racks, Premium Front Bumper, HD Front Tow Hooks, 3000-lb WARN Winch
