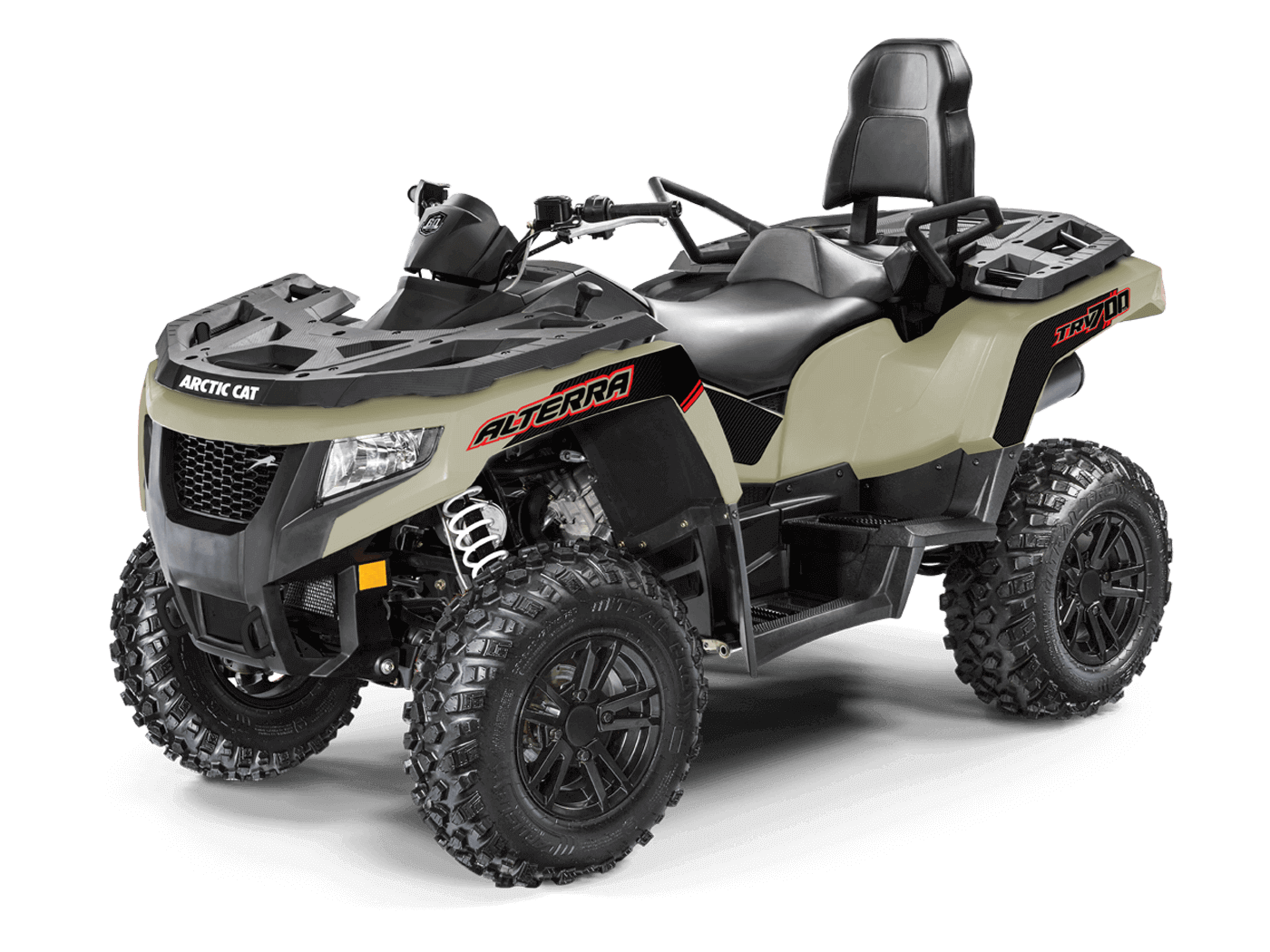

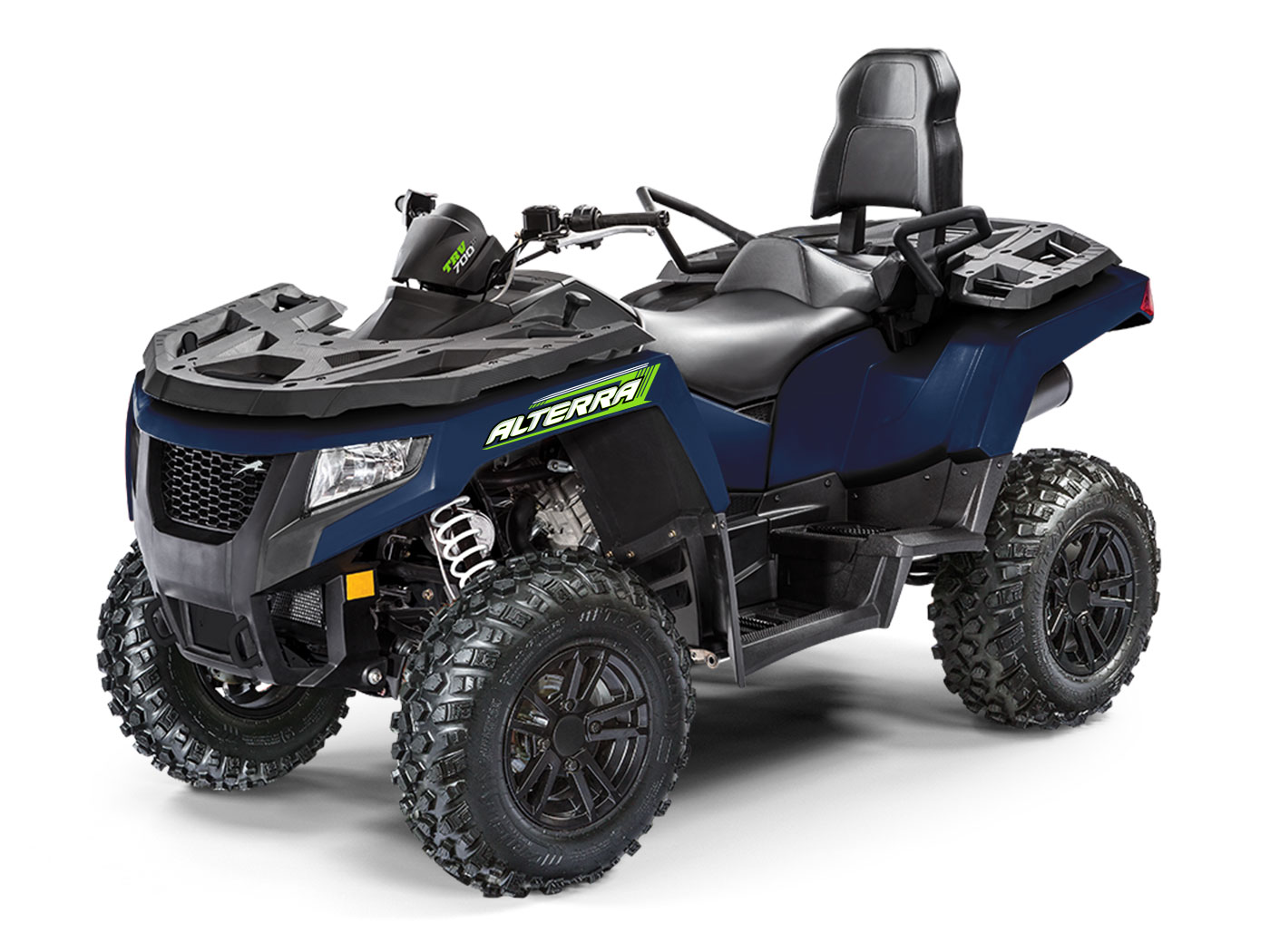

Alterra TRV 700
Good Times Call for Good Company
Hit the off road with plenty of power, and room for one more.
Highlights
2-Passenger
Seating
EFI
Engine
Double A-Arm
Front and Rear Suspension
1,050-lb
Towing Capacity
Electronic
Power Steering
2-Passenger Seating
The TRV 700 is factory-built to comfortably seat two passengers.
EFI Engine
A 700 class liquid-cooled single cylinder engine helps you haul two passengers with ease, improves fuel efficiency and puts a damper on loud engine noise.
Double A-Arm Front and Rear Suspension
Take on the trail with class-leading 10-inch front and rear travel and adjustable front shock absorbers.
1,050-lb Towing Capacity
Pull over half a ton with a front tow hook and 2-inch rear receiver.
11-inch Ground Clearance
Wit h more ground clearance, you can take on all the rough terrain you can find.

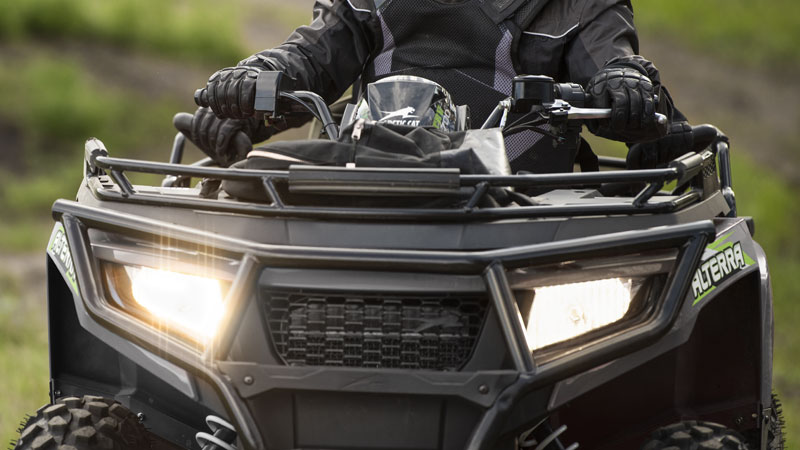

Electronic Power Steering
Take command of the trail with standard EPS for easy, responsive steering.

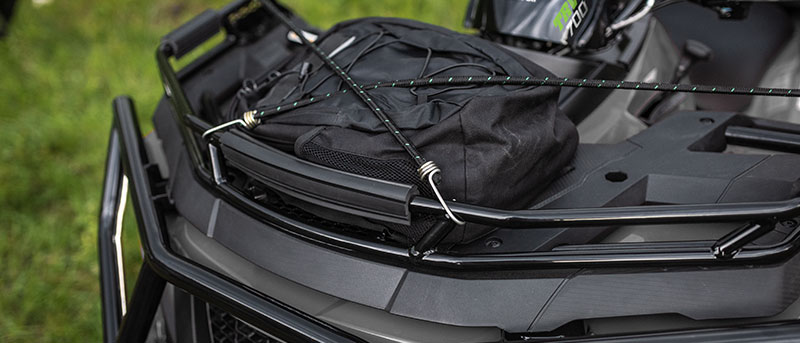

Front and Rear SpeedRacks™
Molded-in 100-lb front and 200-lb rear racks — with a SPEEDLOCK™ system that allows you to effortlessly attach accessories.
25 inch Tires
Lightweight and ready to take a beating in a variety of conditions.
60th Anniversary Badge
Celebrate 60 years of Arctic Cat with this commemorative badge.
Alpine Accessory Kit
Everything you need for your Alterra TRV 700 to be winter-ready.
12-Month Warranty
A year of rock-solid coverage so you can have peace of mind on the trail.

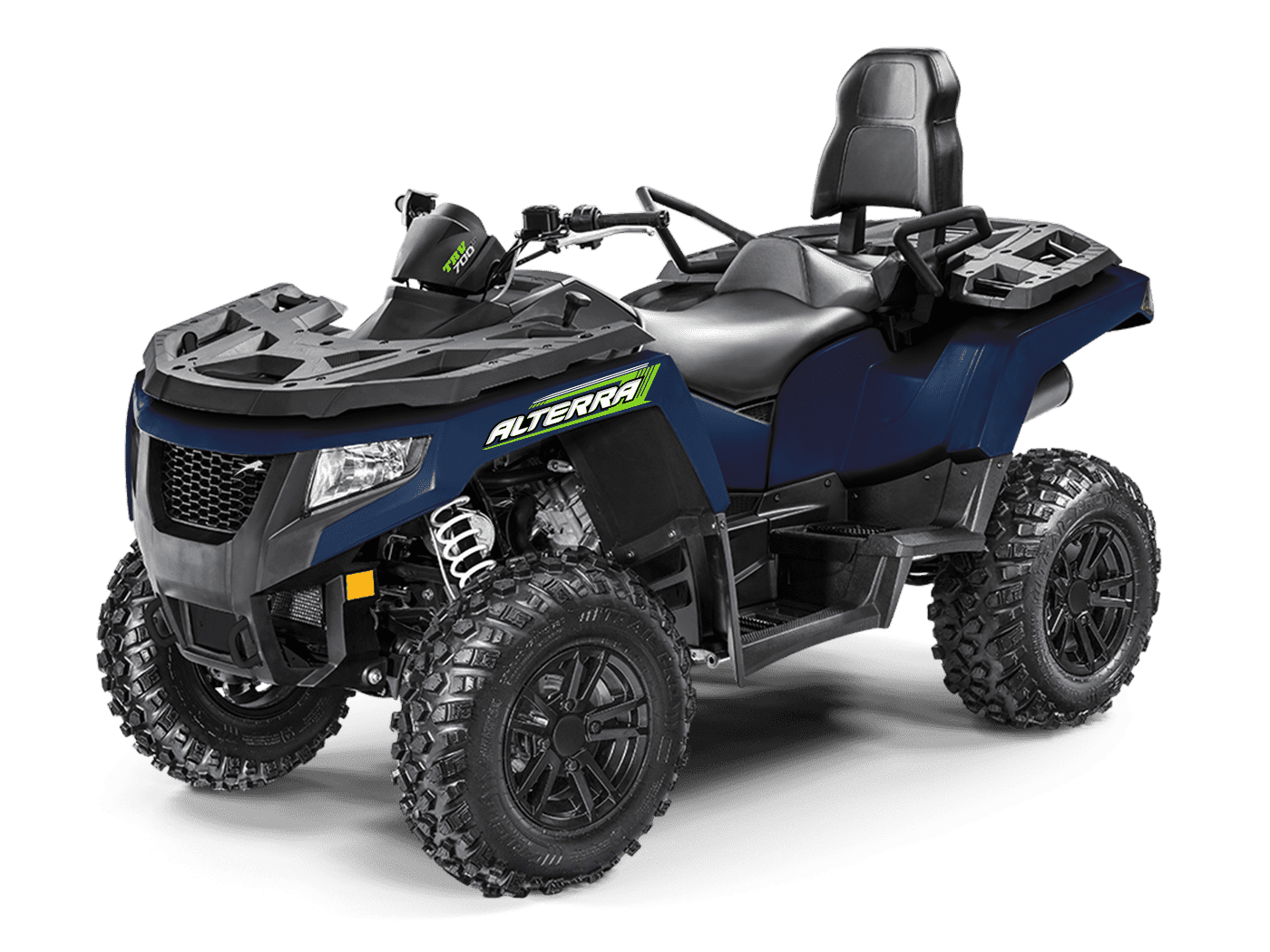

Alterra TRV 700
Vehicle Specs
Print SpecsEngine & Drivetrain
| Alterra TRV 700 | |
|---|---|
| Engine Type | Liquid-Cooled, Single Cylinder |
| Displacement | 695cc |
| Drive Train | CVT |
| Drive System | 2WD / 4WD Electric Actuation |
| Fuel System | EFI (Electronic Fuel Injection) |
| Gear Selection | H/L/N/R/P |
| Front Differential | 2WD / 4WD Selectable Locker |
| Rear Differential | Locked |
Steering & Suspension
| Alterra TRV 700 | |
|---|---|
| Steering | Electronic Power Steering |
| Front Suspension | Double A-Arm with 10-in. (25.4 cm) Travel |
| Rear Suspension | Double A-Arm with 10-in. (25.4 cm) Travel |
| Brake System | All Wheel Hydraulic Disc |
| Foot Brake | Foot Operated Rear Brake |
| Parking Brake | Park in Transmission |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
| Wheels | Aluminum |
Performance
| Alterra TRV 700 | |
|---|---|
| Total Capacity | 600 lbs (272.2 kg) |
| Front Rack | 100 lbs (45.4 kg) |
| Rear Rack | 200 lbs (90.7 kg) |
| Towing Capacity | 1,050 lbs (476 kg) |
Dimensions
| Alterra TRV 700 | |
|---|---|
| Overall Length | 91.1 in. (231.4 cm) |
| Overall Width | 47.8 in. (121.4 cm) |
| Overall Height | 57.4 in. (145.8 cm) |
| Overall Weight (Dry) | 788 lbs (357.4 kg) |
| Wheel Base | 58 in. (147.3 cm) |
| Ground Clearance | 11 in. (27.9 cm) |
| Fuel Capacity | 5.3 gal (20 L) |
| Hitch | Standard 2-in. Receiver |
Features
| Alterra TRV 700 | |
|---|---|
| Skid Plate | Full Length |
| Standard Instrumentation | Multifunctional Digital Gauge |
| Lighting | Dual Halogen Headlight and Dual Halogen Brakelgiht/Tailight |
| Start Method | Electric Start |
| Standard Accessories | Overmolded Plastic Front and Rear Rack, Front Tow Hooks |
