Alterra 570

Works Hard. Rides Easy.

Unmatched comfort for the to-do list and the trail.

Highlights

Double A-Arm

Front and Rear Suspension

3000-lb

Winch

Electronic

Power Steering

Front and Rear

Steel Racks

Halogen

Headlights

Single-Rider

Alterra 570 EPS

A smooth ride ready for the next job or off-road journey.

  • Electric Power Steering
  • Double A-Arm Front and Rear Suspension
  • Class-Leading 10-inch Front and Rear Travel
  • 1,050-lb Towing Capacity
  • 545cc Liquid-Cooled Single-Cylinder Closed-Loop EFI Engine
  • 11-inch Ground Clearance
  • Standard Accessories: HD Front Bumper, 3000-lb Winch, Halogen Headlights, Aluminum Wheels, Over-Molded Front and Rear Rack
Alterra 570 EPS
  • Colors

Alterra 570

Alterra 570

Vehicle Specs

Print Specs

Engine & Drivetrain

Alterra 570 Alterra 570 EPS
Engine Type Liquid-Cooled, Single Cylinder Single Overhead Cam, Gas Engine
Displacement 545cc
Drive Train CVT

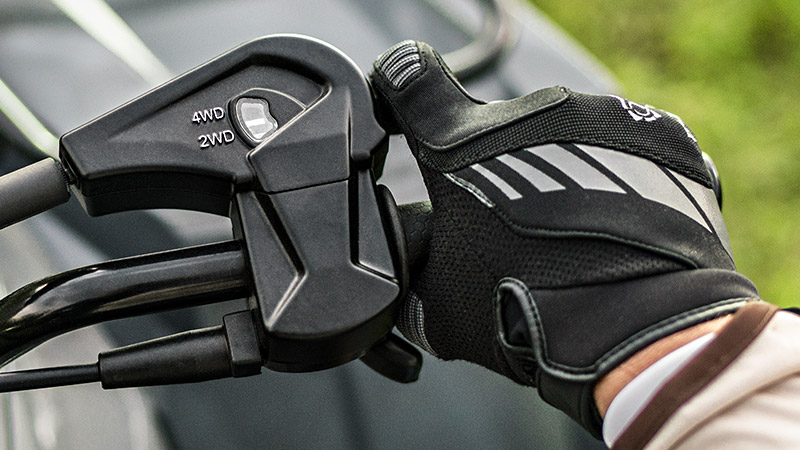

Drive System RTS (Rapid Traction System)
Engine Braking System Standard
Fuel System Electronic Fuel Injection (EFI)
Gear Selection H,L,N,R,P
Front Differential 2WD/4WD Differential
Rear Differential Rear Gear Case

Steering & Suspension

Alterra 570 Alterra 570 EPS
Steering N/A Electronic Power Steering
Front Suspension Double A-Arm with 10 in. (25 cm) Travel
Rear Suspension Double A-Arm with 10 in. (25 cm) Travel
Brake System Single Lever Front, All Wheel Hydraulic Disc
Foot Brake Hydraulic Rear
Parking Brake Park in Transmission
Front Tires 25 x 8 - 12
Rear Tires 25 x 10 - 12
Wheels Steel Aluminum

Performance

Alterra 570 Alterra 570 EPS
Total Capacity 515 lbs (233.6 kg)
Front Rack 100 lbs (45.3 kg)
Rear Rack 200 lbs (90.7 kg)
Towing Capacity 1,050 lbs (476 kg)

Dimensions

Alterra 570 Alterra 570 EPS
Overall Length 83.4 in. (212 cm)
Overall Width 48.5 in. (123 cm)
Overall Height 49.5 in. (125.7 cm)
Overall Weight 699 lbs (317 kg) (Dry)
Wheel Base 52 in. (132 cm)
Ground Clearance 11 in. (28 cm)
Fuel Capacity 5.7 gal (21.6 L)
Hitch Standard/2 in. (5 cm) Receiver

Color Options

Alterra 570 Alterra 570 EPS
Skid Plate Standard
Standard Colors Dynamic Grey/Medium Green Dynamic Charcoal/Medium Green

Features

Alterra 570 Alterra 570 EPS
Standard Instrumentation Digital Gauge, Speedometer, Odometer, Tripmeter, RPM, Gear Indicator, Fuel Gauge, Low Fuel Warning, Clock, High Beam, Air Intake Temp, Coolant Temp, Coolant Temp Warning, Battery Voltage, Hour Meter
Additional Instrumentation N/A
Lighting Dual Beam Headlights, Dual Brake Lights/Taillights
Start Method Electric Start
Standard Accessories Halogen Headlights HD Front Bumper, 3,000-lb Winch, Halogen Headlights, Over-Molded Front and Rear Rack
