Prowler 500

All-Purpose. All Day Long.

Versatile enough to shoulder a full workload and an end-of-day trail ride.

Highlights

Class-Leading

Enclosed Storage

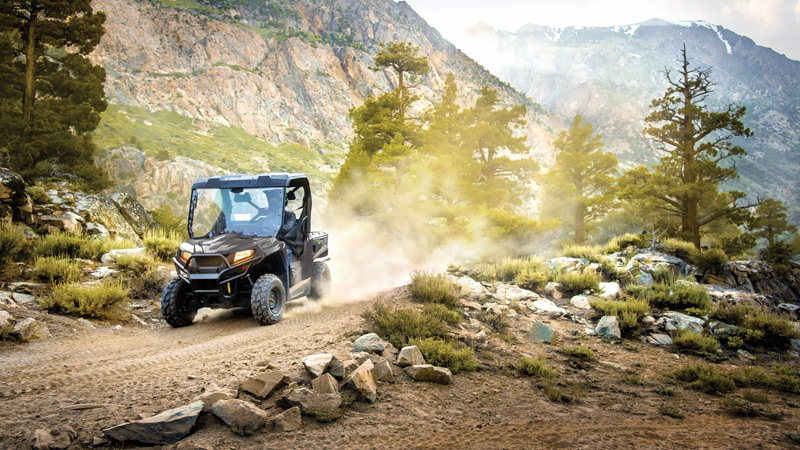

Single-Cylinder

Closed-Loop EFI Engine

500-Class

Power and Torque

Front and Rear

Double A-Arm Suspension

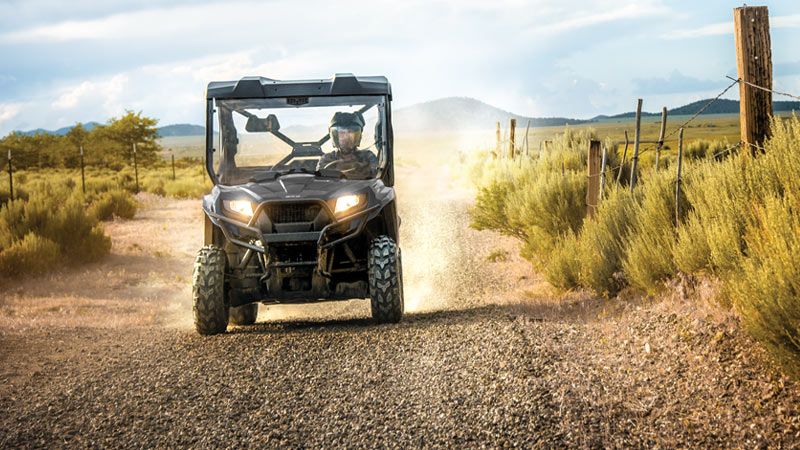

Compact

Nimble Design

Available Now

2-Passenger

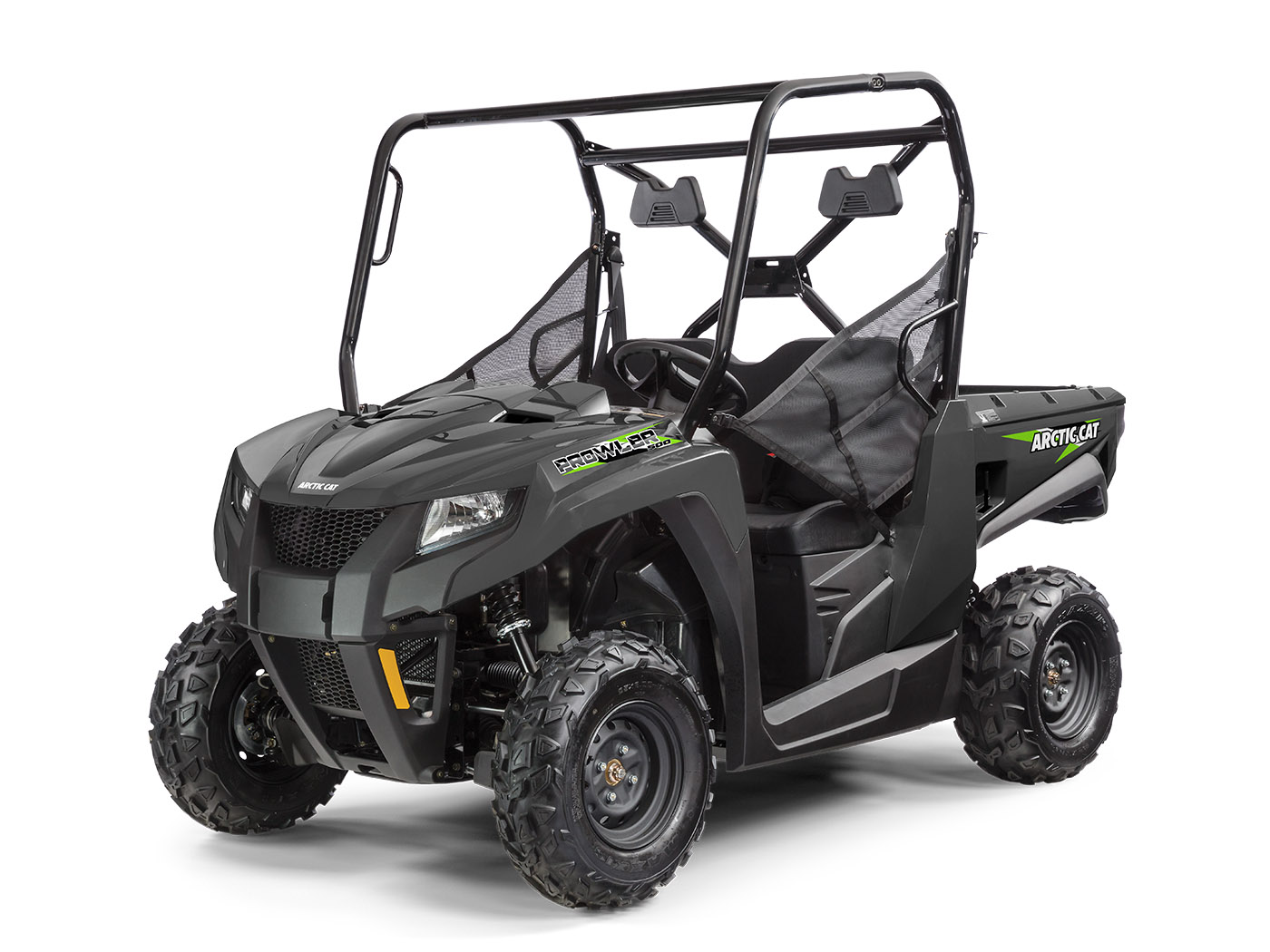

Prowler 500

Space for everything you need, power to haul it and an efficient engine to keep you going strong.

  • Class-Leading Enclosed Storage
  • 443cc Liquid Cooled Single Cylinder Closed-Loop EFI Engine
  • Front and Rear Double A-Arm Suspension
  • 1500-lb Towing Capacity
  • 500-lb Rear Cargo Capacity

*Freight and set-up cost not included

$9,399 Starting USD*
Prowler 500
  • Colors
Class-Leading Enclosed Storage

With under-hood storage, a fold-down tailgate compartment and extra room under the seats, there’s plenty of space to haul supplies, small tools and more.

Prowler 500

Prowler 500

Vehicle Specs

Print Specs

Engine & Drivetrain

Prowler 500
Engine Type Liquid-Cooled, Single Cylinder Single Overhead Cam, Gas Engine
Displacement 443cc
Drive Train CVT
Drive System Electric 2WD/4WD
Engine Braking System Standard
Fuel System Electronic Fuel Injection (EFI)
Gear Selection H, L, N, R, P
Front Differential 2/4 Differential with Electronic Actuator
Rear Differential Rear Gear Case

Steering & Suspension

Prowler 500
Steering Rack & Pinion, Tilt Steering Wheel
Front Suspension Double A-Arm with 7.5 in. (19.1 cm) Travel
Rear Suspension Double A-Arm with 7.5 in. (19.1 cm) Travel
Brake System 4-Wheel Hydraulic Disc
Parking Brake Park in Transmission
Front Tires 25 x 8-12
Rear Tires 25 x 10-12
Wheels Steel

Performance

Prowler 500
Total Capacity 1,000 lbs (453 kg)
Bed Load Capacity 500 lbs (226.8 kg)
Towing Capacity 1,500 lbs (680.4 kg)

Dimensions

Prowler 500
Overall Length 106.4 in. (270.3 cm)
Overall Width 56.4 in. (143.3 cm)
Overall Height 76.7 in. (194.8 cm)
Overall Weight 1,095 lbs (496.7 cm) (Dry)
Wheelbase 72 in. (183 cm)
Ground Clearance 10 in. (25 cm)
Fuel Capacity 8.5 gal (32.2 L)
Bed Dimensions (L x W x H) 29.5 x 46 x 12 in. (74.9 x 116.8 x 30.5 cm)
Hitch Standard/2 in. (5 cm) Receiver

Color Options

Prowler 500
Skid Plate Standard
Standard Colors Dynamic Charcoal/Medium Green

Features

Prowler 500
Instrumentation Digital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet

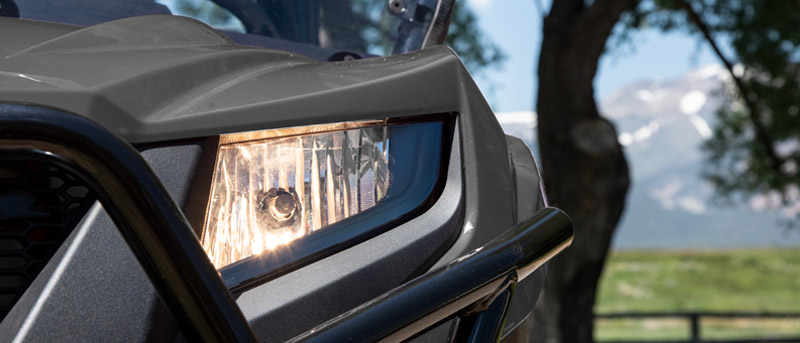

Headlights Dual Low/High Beam Halogen Headlights, Halogen Taillights
Seating Bench Seat, 2-Passenger
Storage Components Underhood Storage, Glove Box, Cargo Dump Bed
Additional Features 3-Point Seat Belts, Seat Belt Rev Limiter, Door Nets, Steel Tube ROPS, Headlights, Brake Lights, Passenger Grab Handle
