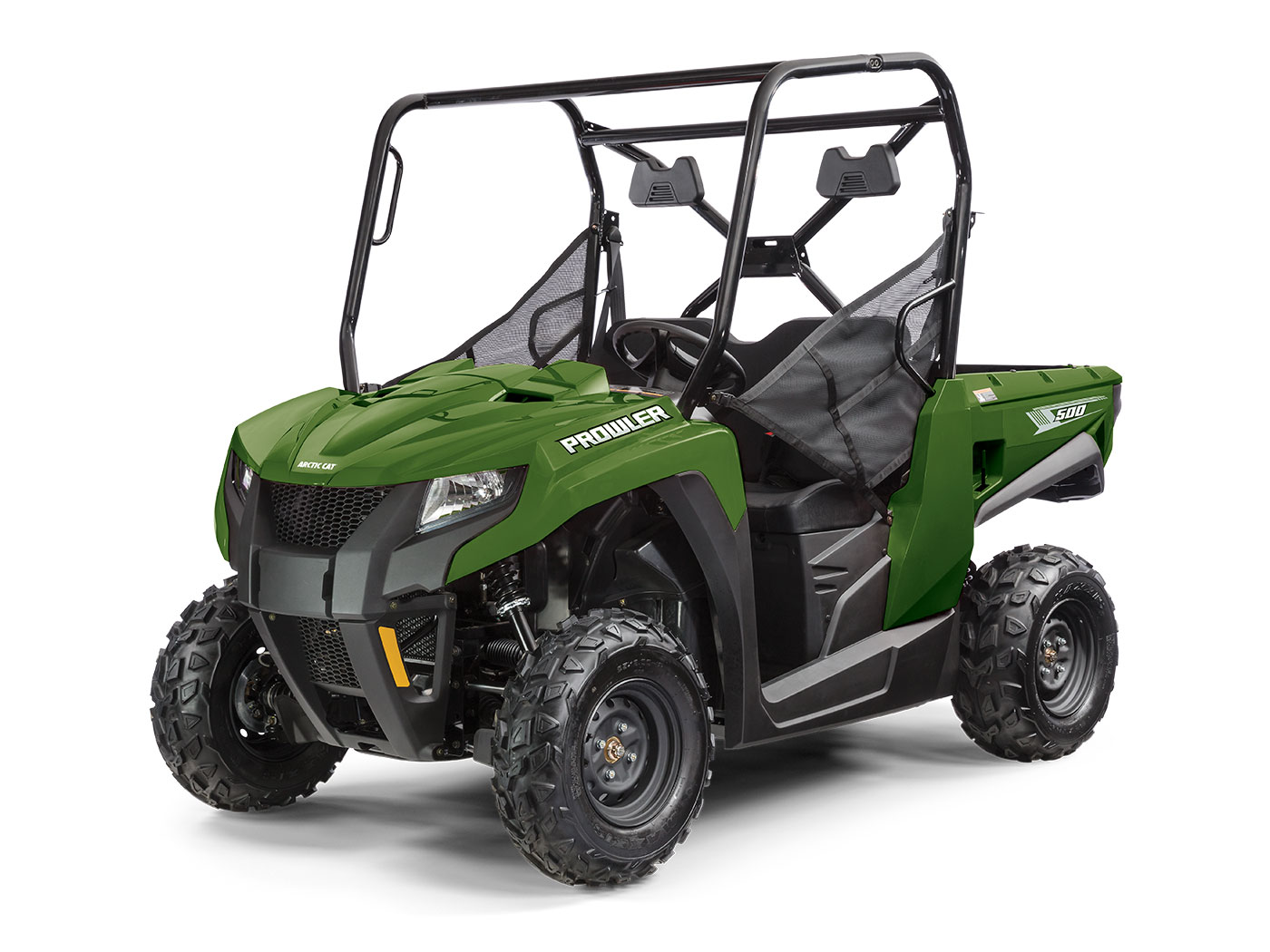

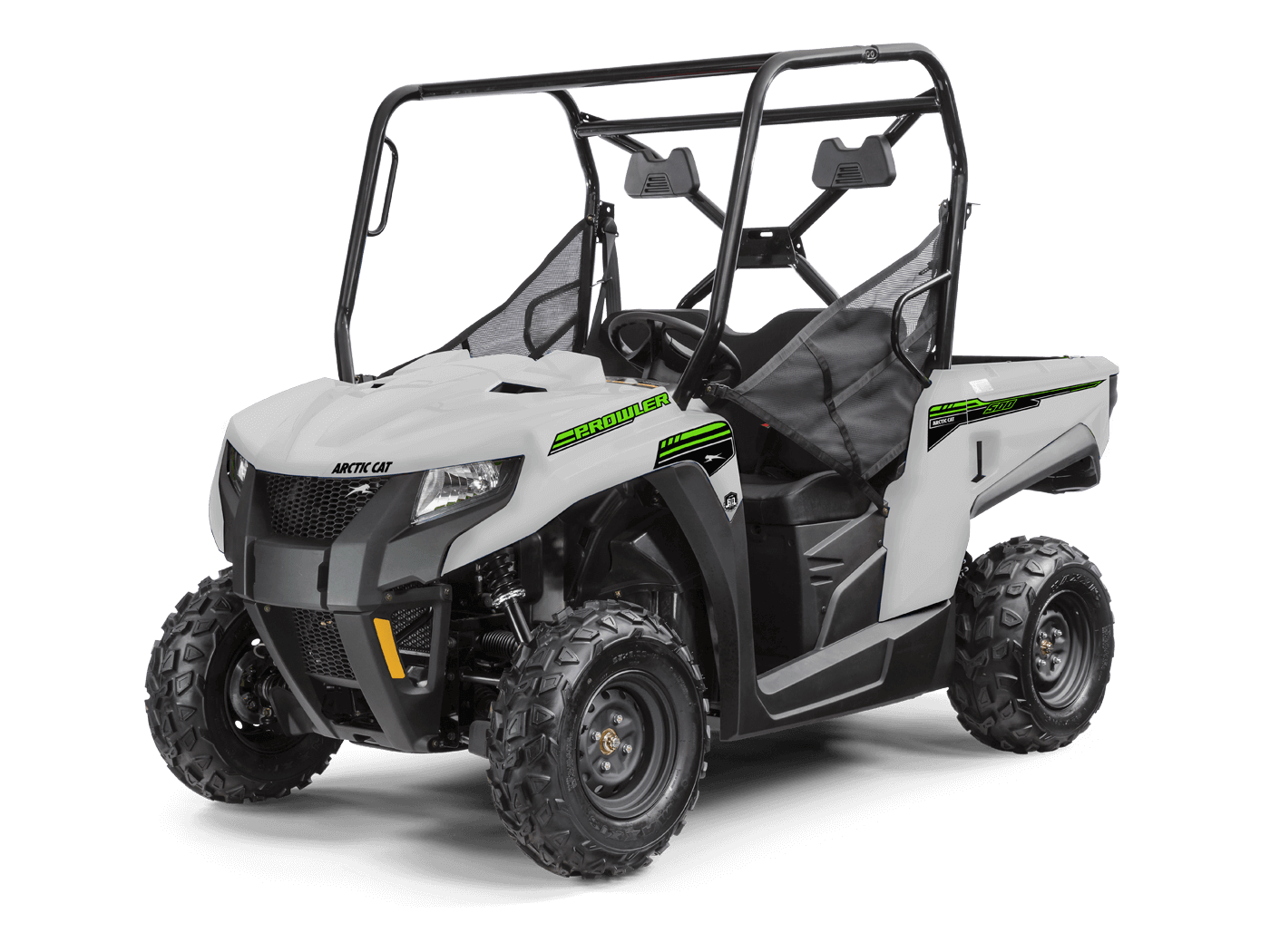

Prowler 500
All-Purpose. All Day Long.
Versatile enough to shoulder a full workload and an end-of-day trail ride.
Highlights
Class-Leading
Enclosed Storage
Single-Cylinder
EFI Engine
500-Class
Power and Torque
Front and Rear
Double A-Arm Suspension
Compact
Nimble Design
Class-Leading Enclosed Storage
Prowler 500 lets you pack in more gear than competitors, with locations all around the vehicle to store everything you need for the job.
SEE MORE

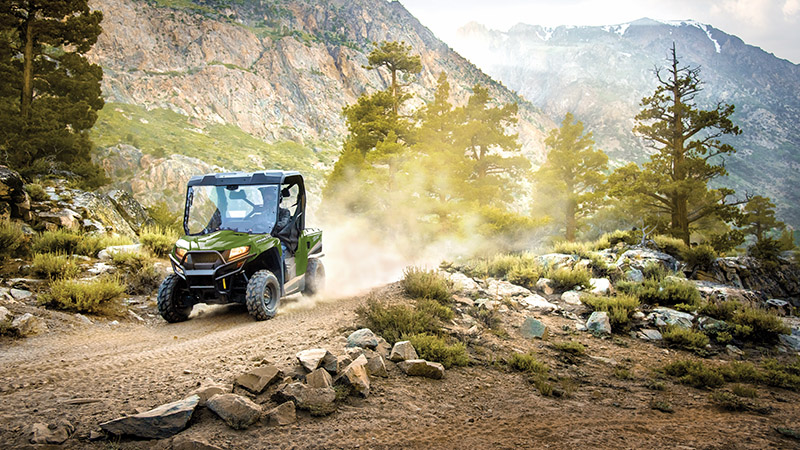

443cc EFI Engine
Fuel efficient, 500-class power and torque with a CVT drivetrain in a liquid cooled, single cylinder package.

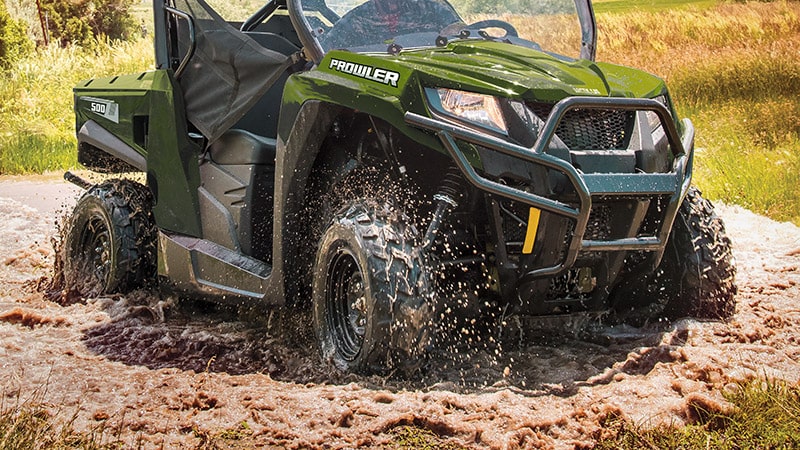

Front and Rear Double A-Arm Suspension
Made to put rough roads and rocky trails in their place.

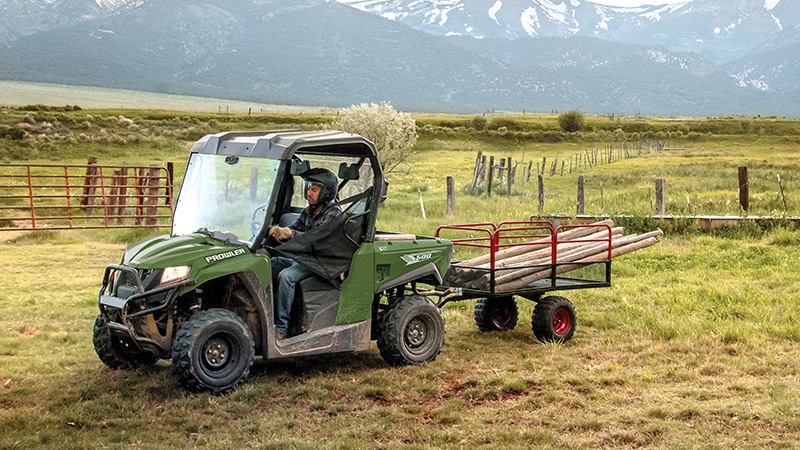

1500-lb Towing Capacity
Pull some serious weight on a 2-inch receiver to help tackle the toughest jobs.

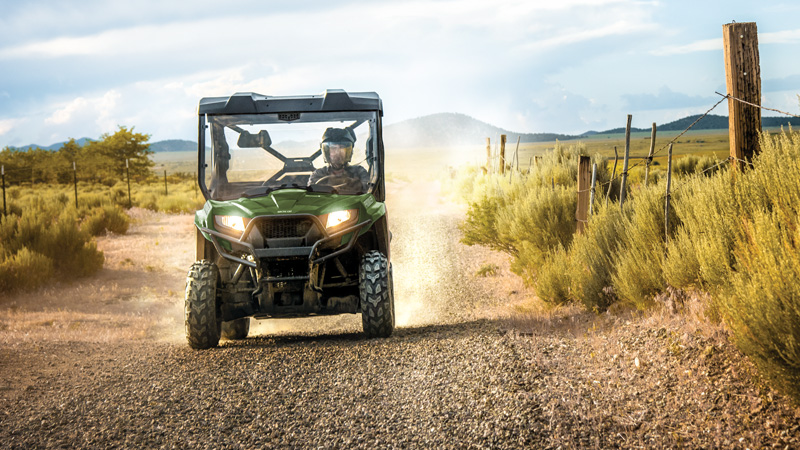

Compact Design
A 72-inch wheelbase and 56.4-inch width help Prowler 500 fit into narrow spaces — and a tight garage spot.

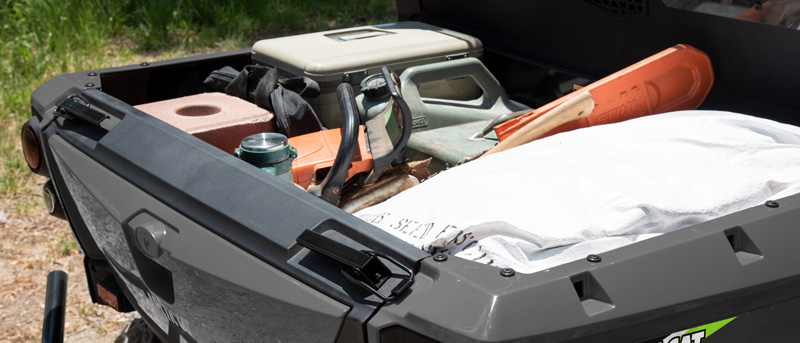

500-lb Rear Cargo Capacity
The durable bed is on-call for larger cargo and perfect for a hard day’s work.

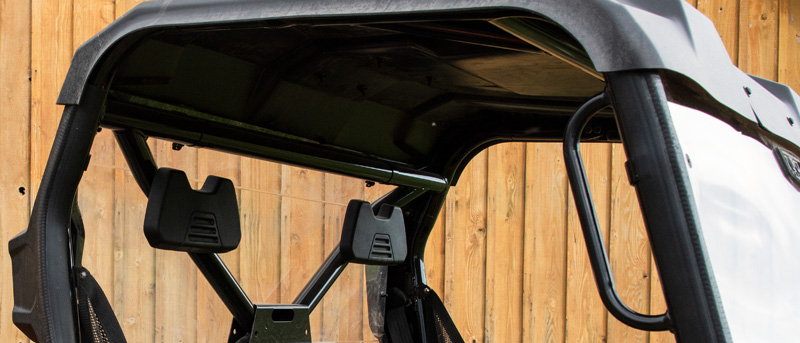

Steel Tube ROPs
Additional protection for both passengers with a durable, overhead steel frame.

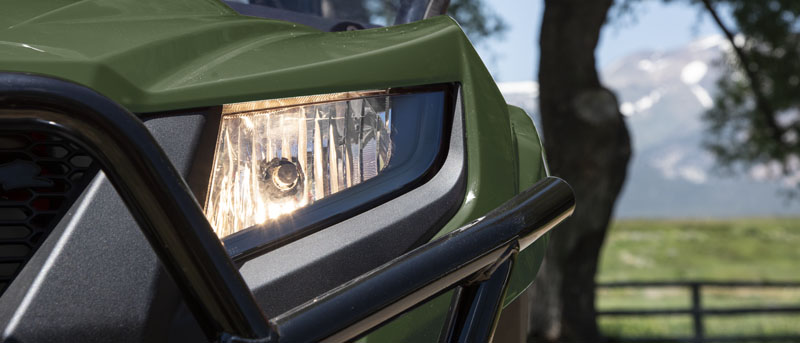

Dual Halogen Headlights
Brighter headlights for increased visibility and safety on the trail.
18-Month Warranty
18 months of rock-solid coverage so you can have peace of mind at work and on the trail.
Enforcer Accessory Kit
Give your Prowler 500 extra protection so you can ride with confidence.
See More
Protection Plus Kit
Give your Prowler 500 a premium look with a full cab system that allows you to ride no matter the conditions.
See More
Prowler 500
Vehicle Specs
Print SpecsEngine & Drivetrain
| Prowler 500 | |
|---|---|
| Engine Type | Liquid-Cooled, Single Cylinder Single Overhead Cam, Gas Engine |
| Displacement | 443cc |
| Drive Train | CVT |
| Drive System | Selectable 2WD/4WD |
| Engine Braking System | Front/ Rear Hydraulic |
| Fuel System | Electronic Fuel Injection (EFI) |
| Gear Selection | H, L, N, R, P |
| Front Differential | 2/4 Differential with Electronic Actuator |
| Rear Differential | Spool |
Steering & Suspension
| Prowler 500 | |
|---|---|
| Steering | Standard |
| Front Suspension | Double A-Arm with 7.5 in. (19.1 cm) Travel |
| Rear Suspension | Double A-Arm with 7.5 in. (19.1 cm) Travel |
| Brake System | 4-Wheel Hydraulic Disc |
| Parking Brake | Park in Transmission |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
| Wheels | Steel |
Performance
| Prowler 500 | |
|---|---|
| Total Capacity | 1,000 lbs (453 kg) |
| Bed Load Capacity | 500 lbs (226.8 kg) |
| Towing Capacity | 1,500 lbs (680.4 kg) |
Dimensions
| Prowler 500 | |
|---|---|
| Overall Length | 106.4 in. (270.3 cm) |
| Overall Width | 56.4 in. (143.3 cm) |
| Overall Height | 76.7 in. (194.8 cm) |
| Overall Weight | 1,095 lbs (496.7 cm) (Dry) |
| Wheelbase | 72 in. (183 cm) |
| Ground Clearance | 10 in. (25 cm) |
| Fuel Capacity | 8.5 gal (32.2 L) |
| Bed Dimensions (L x W x H) | 29.5 x 46 x 12 in. (74.9 x 116.8 x 30.5 cm) |
| Hitch | Standard/2 in. (5 cm) Receiver |
Features
| Prowler 500 | |
|---|---|
| Instrumentation | Digital Gauge, Analog Speedometer, Odometer, Tachometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet |
| Headlights | Dual Low/High Beam Halogen Headlights, Halogen Taillights |
| Seating | Bench Seat, 2-Passenger |
| Storage Components | Underhood Storage, Glove Box, Cargo Dump Bed |
| Additional Features | 3-Point Seat Belts, Seat Belt Rev Limiter, Door Nets, Steel Tube ROPS, Headlights, Brake Lights, Passenger Grab Handle |
