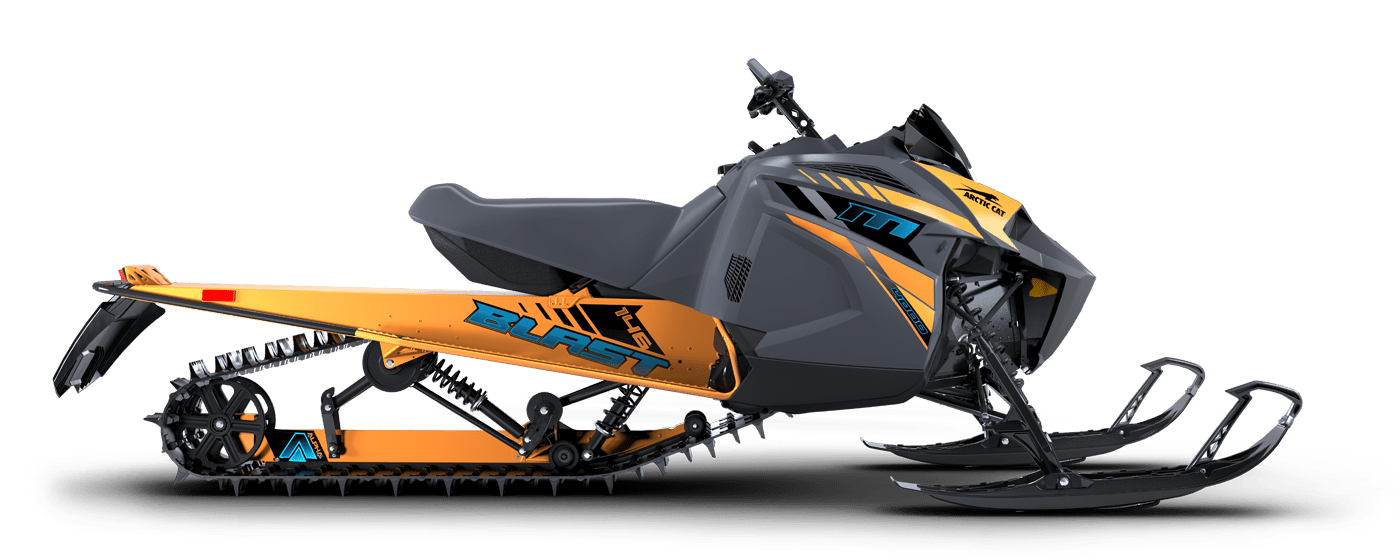

BLAST M

A Mid-Sized Sled Built for the Mountain, with Legendary ALPHA ONE Suspension

BLAST™ M sets the standard for mid-sized sleds. Armed with the incredible maneuverability of ALPHA ONE™ Single-Beam Rear Suspension, it makes it easier for all types of riders to take on challenging terrain.

Highlights

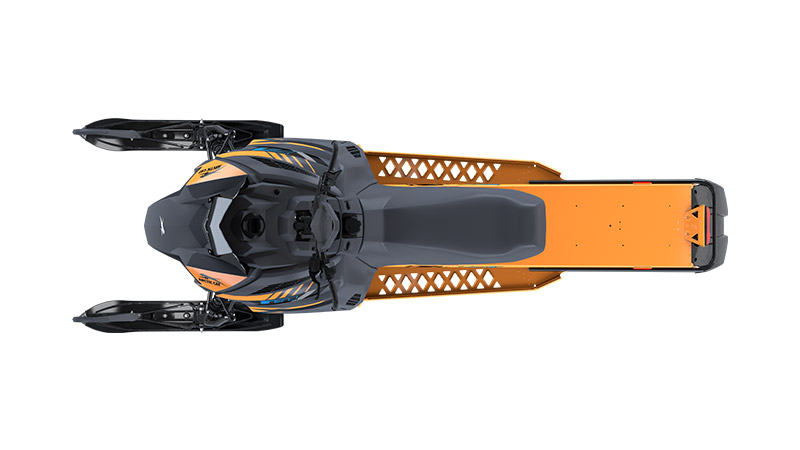

Lightweight, Mid-Sized

Frame

Single-Cylinder 2-Stroke EFI

Engine

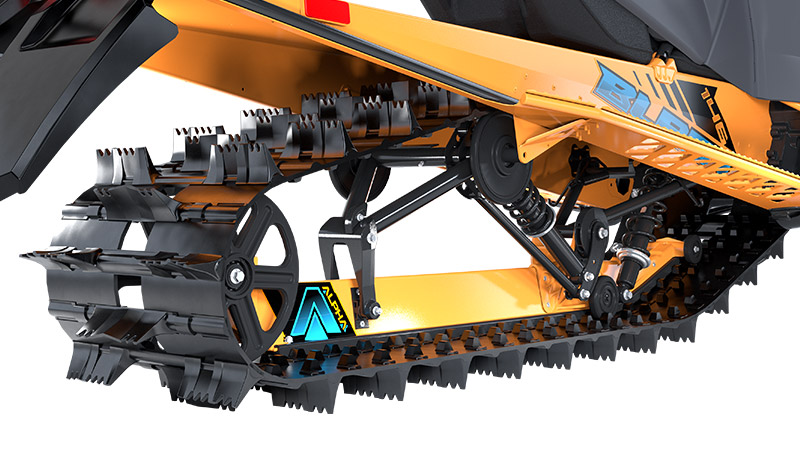

ALPHA ONE

Single-Beam Rear Suspension

Turn-Key

Electric Start

Push-Button

Reverse

Blast M 4000

A mid-sized sled that combines an industry-first 400cc single-cylinder EFI 2-stroke engine with ALPHA ONE Single-Beam Rear Suspension to deliver unrivaled maneuverability on the mountain.

Blast M 4000

PRO KIT-Black

Everything you need to tear up the backcountry including:

  • Pro Climb Bumper
  • Mountain Pack
  • Handlebar Bag

Blast M 4000: Special Edition

The same features as the BLAST M 4000 (a 400cc single-cylinder EFI 2-stroke engine and ALPHA ONE Single-Beam Rear Suspension), plus a graphics package that takes national pride to new heights.

Blast M 4000: Special Edition

PRO KIT-Black

Everything you need to tear up the backcountry including:

  • Pro Climb Bumper
  • Mountain Pack
  • Handlebar Bag
Single-Cylinder 2-Stroke EFI Engine

With an industry-first design that’s compact and lightweight (under 50 pounds), this EFI engine brings 65-hp (397cc) performance to every ride. A 3-stage exhaust valve system takes this power to the next level, delivering improved throttle response and better overall engine performance. As a liquid-cooled engine, it thrives in low-snow conditions – and a counter balance shaft eliminates most engine vibration. The result—a lightweight-but-mighty power source that fuels a ride like no other.

BLAST M

BLAST M

Vehicle Specs

Print Specs

Engine

BLAST M
Engine Type 4000 Series, 2-Stroke
Displacement 397cc
Cooling Liquid
Cylinders 1
Bore x Stroke 85 x 70 mm
Lubrication Electric Injection
Ignition Digitally Controlled CDI
Engine Stator Output 270W @ 3000 RPM
Fuel Delivery Electronic Fuel Injected (EFI)
Exhaust APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler
Fuel Capacity 11.7 gal.
Oil System Capacity 3.25 qt.
Coolant System Capacity 4.6 qt.
Minimum Octane 91

Powertrain

BLAST M
Drive Clutch CVTech Trailbloc
Driven Clutch CVTech Invance
Drive System Arctic Drive System
Brakes Stealth Hydraulic Master Cylinder w/ Lightweight Caliper
Clutch Calibration 0-5,000 ft.
Gearing 19/50
Chain Pitch 90
Track Drive Sprocket 8 Tooth, 2.86 Pitch, Involute
Reverse Push-Button Engine

Suspension

BLAST M

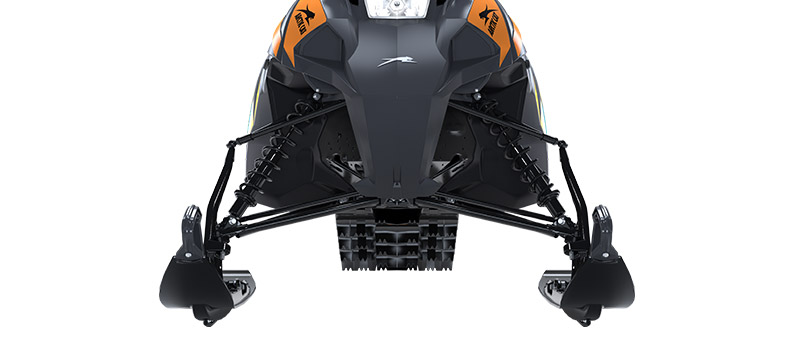

Front Suspension Arctic Mountain Suspension (AMS)
Ski Shocks Hydraulic Twin Tube
Sway Bar N/A
Front Travel 8.3 in.
Rear Suspension ALPHA-ONE Rear Suspension
Front Track Shock Hydraulic Twin Tube
Rear Track Shock Hydraulic Twin Tube
Rear Travel 12 in.

Dimensions

BLAST M
Overall Chassis Length 128 in.
Overall Chassis Width 44-46 in.
Overall Chassis Height 38.5 in.
Estimated Dry Weight
Track Type Challenger
Track Width 15 in.
Track Length 146 in.
Lug 2.00 in.
Pitch 2.86 in.
Ski Stance 37-39 in. - Adjustable

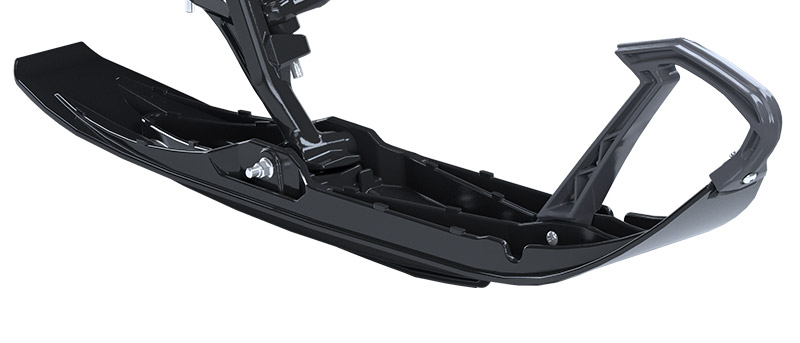

Ski Type/Width G2 ProClimb - 7
Runner Type Single Runner

Instrumentation

BLAST M
Type of Gauge Digital
Speedometer Digital
Tachometer Digital
Odometer Digital
Fuel Digital
Oil Indicator Light
Coolant Indicator Light
Clock N/A
Battery Voltage N/A
Altimeter N/A
Hours Digital

Features

BLAST M
Color Camo/White/ Fire Red (Limited), Dynamic Charcoal/Orange
Heat Exchanger Front/ Long Tunnel
Starter Electric- Key
Handlebars Hooked with Grab Handle, 4.5 in. Riser
Lighting Halogen 1-Bulb
Seating Mid-Size
Storage Components
Additional Accessories Front Bumper, Goggle Holder, Hand Guards, Ice Scratchers, Mirrors, Rear Rack, Rear Storage, Sno Pro Brake Lever, Tow Hitch
Standard Accessories Hand & Thumb Warmers, Steering, Tether Switch
Windshield 4 in. Low-Height
