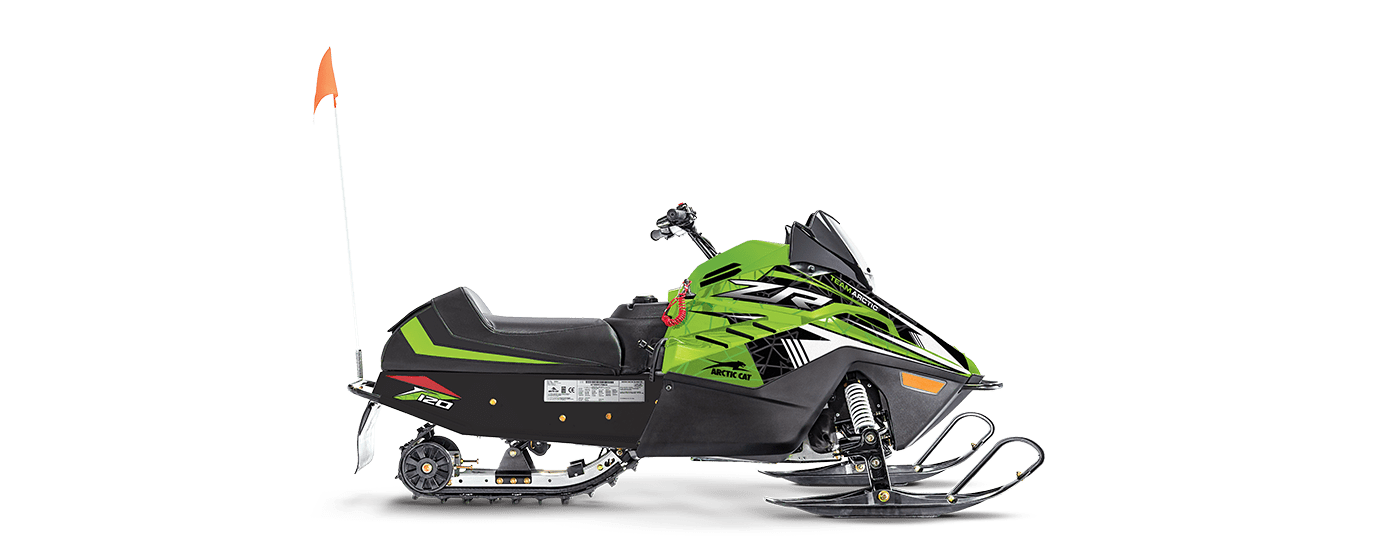

ZR 120

A Fun First Ride for Young Snowmobilers

ZR® 120’s compact frame packs enough power and excitement to make your young rider’s first experience unforgettable.

Highlights

123cc

4-Stroke Engine

Youth-Sized

Design

Handwarmers

with Comfort Grips

Safety Flag

and Tether Switch

In-Seat

Storage

ZR 120

Powerful 123cc engine for younger first-time riders.

ZR 120

Vehicle Specs

ZR 120
Engine Type 120, 4-Stroke
Displacement 123cc
Cooling Air
Cylinders 1
Bore x Stroke 56 x 50 mm
Lubrication Oil Sump
Ignition CDI
Engine Starter Output 55 W @ 3600 RPM
Fuel Delivery B-18 Carburetor
Exhaust Muffler
Fuel Capacity 0.5 gal.
Oil System Capacity 0.6 qt.
Coolant System Capacity N/A
Minimum Octane 87
ZR 120
Drive Clutch Arctic Centrifugal
Driven Clutch N/A
Drive System N/A
Brakes Adjustable Band
Clutch Calibration 0-5,000 ft.
Gearing N/A
Chain Pitch N/A
Track Drive Sprocket 4 Tooth, 2.59 Pitch, Exvolute
Reverse N/A
ZR 120

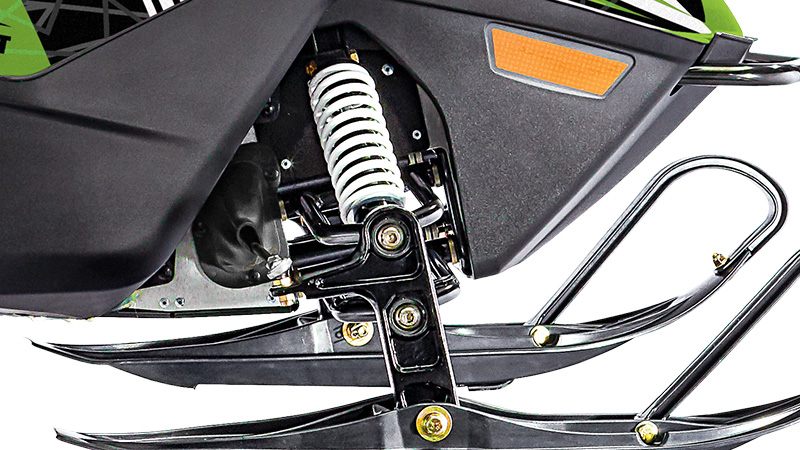

Front Suspension Arctic Wishbone Suspension (AWS)
Ski Shocks Hydraulic Twin Tube
Sway Bar N/A
Front Travel 4.5 in.
Rear Suspension Slide-Rail, Adjustable Torsion Spring
Front Track Shock N/A
Rear Track Shock N/A
Rear Travel 4.5 in.
ZR 120
Overall Chassis Length 73 in.
Overall Chassis Width 35-37 in.
Overall Chassis Height 34 in.
Estimated Dry Weight 167 lbs.
Track Type Cobra
Track Width 10 in.
Track Length 67 in.
Lug 0.75 in.
Pitch 2.59 in.
Ski Stance 29.5-31.5 in. - Adjustable
Ski Type/Width Youth - 5 in.
Runner Type Single Runner
ZR 120
Type of Gauge N/A
Speedometer N/A
Tachometer N/A
Odometer N/A
Fuel N/A
Oil N/A
Coolant N/A
Clock N/A
Battery Voltage N/A
Altimeter N/A
Hours N/A
ZR 120
Color Medium Green, Yellow
Heat Exchanger N/A
Starter Manual
Handlebars Straight
Lighting Halogen 1-Bulb
Seating Youth 120
Storage Components In-Seat
Additional Accessories N/A
Standard Accessories Brake Disc, Hand Warmers, Safety Flag, Steering, Tether Switch, Youth Front Bumper
Windshield 4 in. Low-Height
