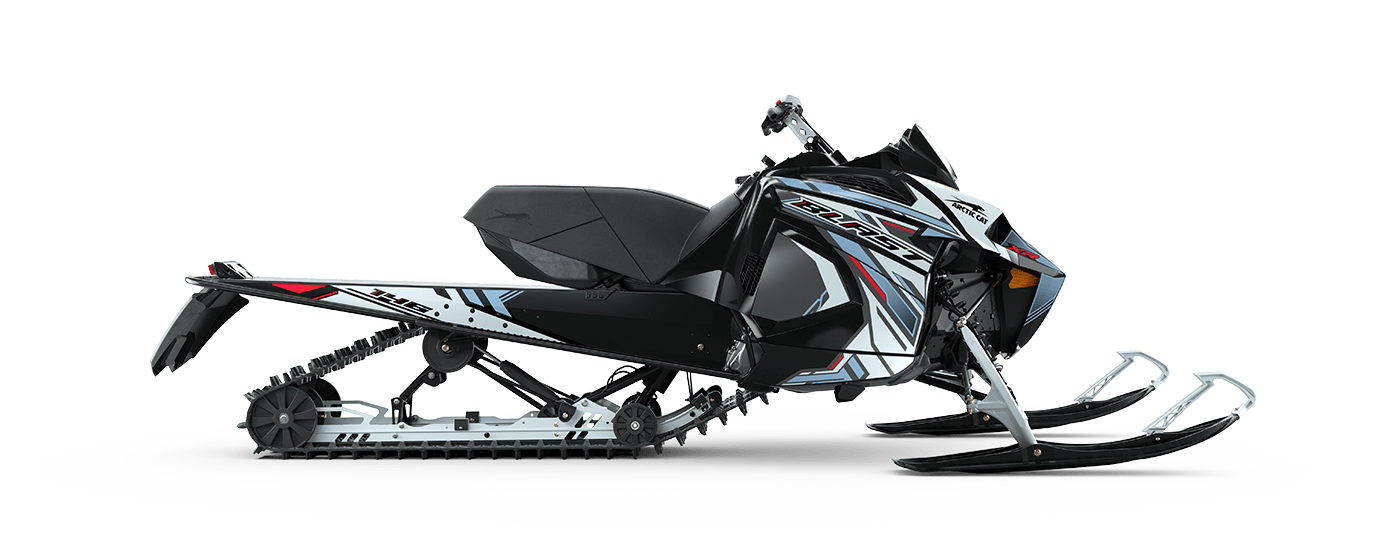

BLAST XR
The Versatile Mid-Sized Sled for Tackling Trails and Deep Snow
For unsurpassed crossover versatility, BLAST® XR is the ultimate ride. Built for all types of riders on all types of terrain, this is the perfect mid-sized sled for exploring more. So whether you're a thrill-seeker, a sightseer, or a first-timer, BLAST XR is easy to maneuver and control, and you're guaranteed to have the time of your life.
Watch VideoHighlights
Lightweight, Mid-Sized
Chassis
Single-Cylinder
2 EFI Engine
Cobra 146" Track
With 1.6" Lug
Turn-Key
Electric Start
Slide-Rail
Suspension
RESPONSIVE, POWERFUL DRIVE
SINGLE-CYLINDER 2-STROKE EFI ENGINE
A 397cc single-cylinder 2-stroke engine with 65-class horsepower and Electronic Fuel Injection offers quicker, more responsive power that gives you a smoother take off every time.
ELIMINATES BUMPY RIDES
SLIDE-RAIL REAR SUSPENSION
This responsive rear suspension uses a full 12.5 inches of travel to absorb any bumps on the trail. With support like this, every ride will be so stable and smooth, the only thing you'll notice is how great the ride is.
ENHANCED MANEUVERABILITY
LIGHTWEIGHT, MID-SIZED CHASSIS
There's nothing better than a snowmobile that's easy to handle. With its lightweight, mid-sized chassis, the BLAST XR gives you more control over your ride, whether you're exploring trails or powering through deep snow.
QUICK AND CONVENIENT
TURN-KEY ELECTRIC START AND TETHER
The BLAST XR comes with a convenient turn-key electric start and magnetic tether switch that will stop the engine if disconnected, offering a quick start and additional safety.
CAPABLE, EFFORTLESS HANDLING
BEST-IN-CLASS POWER-TO-WEIGHT RATIO
The BLAST XR offers enhanced maneuverability with plenty of power to transition from trail to deep snow with ease. The 65-class horsepower C-TEC2™ 397cc engine is paired with a lightweight, mid-sized chassis for a best-in-class power-to-weight ratio.
NEXT LEVEL VISIBILITY
Retrieving data. Wait a few seconds and try to cut or copy again.
The BLAST XR comes equipped with a lower-profile, race-ready windshield. Designed to enhance your visability, this makes sure you don't miss the incredible views, important trail markers, or anything else on your ride.
EASILY ACCESS INFORMATION
DIGITAL GAUGE
Everything you need to know is now in one place. Be fully aware of everything going on with your vehicle with this easy-to-read, digital display.
BLAST XR
Vehicle Specs
Print SpecsEngine
| BLAST XR 4000 | |
|---|---|
| Engine Type | 4000, 2-Stroke |
| Displacement | 397cc |
| Cooling | Liquid |
| Cylinders | 1 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electronic Injection |
| Ignition | Digitally Controlled CDI |
| Engine Stator Output | 270W @ 3000 RPM |
| Fuel Delivery | Electronic Fuel Injected (EFI) |
| Exhaust | APV w/ Tuned Pipe, Pipe Sensor, Manifold & Stainless Steel Muffler |
| Fuel Capacity | 11.7 gal. |
| Oil System Capacity | 3.25 qt. |
| Coolant System Capacity | 5.0 qt. |
| Minimum Octane | 91 |
Powertrain
| BLAST XR 4000 | |
|---|---|
| Drive Clutch | CVTech Trailbloc |
| Driven Clutch | CV Tech Invance |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder w/ Lightweight Caliper |
| Clutch Calibration | 0-5,000 ft. |
| Gearing | 19/50 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 8 Tooth, 2.86 Pitch, Involute |
| Reverse | Push-Button Engine |
Suspension
| BLAST XR 4000 | |
|---|---|
| Front Suspension | Arctic Mountain Suspension (AMS) |
| Ski Shocks | Hydraulic Twin Tube |
| Sway Bar | N/A |
| Front Travel | 7.2 in. |
| Rear Suspension | Slide-Rail, Dual Shock and Adjustable Torsion Springs |
| Front Track Shock | Hydraulic Twin Tube |
| Rear Track Shock | Hydraulic Twin Tube |
| Rear Travel | 12.5 in. |
Dimensions
| BLAST XR 4000 | |
|---|---|
| Overall Chassis Length | 128 in. |
| Overall Chassis Width | 44-45 in. |
| Overall Chassis Height | 45 in. |
| Track Type | Cobra |
| Track Width | 15 in. |
| Track Length | 146 in. |
| Lug | 1.60 in. |
| Pitch | 2.86 in. |
| Ski Stance | 37.5-38.5 in. -Adjustable |
| Ski Type/Width | Trail- 6 in. |
| Runner Type | Single Runner |
Instrumentation
| BLAST XR 4000 | |
|---|---|
| Type of Gauge | Digital |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | N/A |
| Clock | N/A |
| Battery Voltage | N/A |
| Altimeter | N/A |
| Hours | Digital |
Features
| BLAST XR 4000 | |
|---|---|
| Color | Black/Gun Metal Blue |
| Heat Exchanger | Front/Long Tunnel |
| Starter | Turnkey Electric Start |
| Handlebars | Hooked |
| Lighting | Halogen 1-Bulb |
| Seating | Mountain |
| Standard Accessories | Hand & Thumb Warmers, Brake Disc, Standard Steering, Tether Switch, |
| Windshield | 4 in. Low Height |
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
