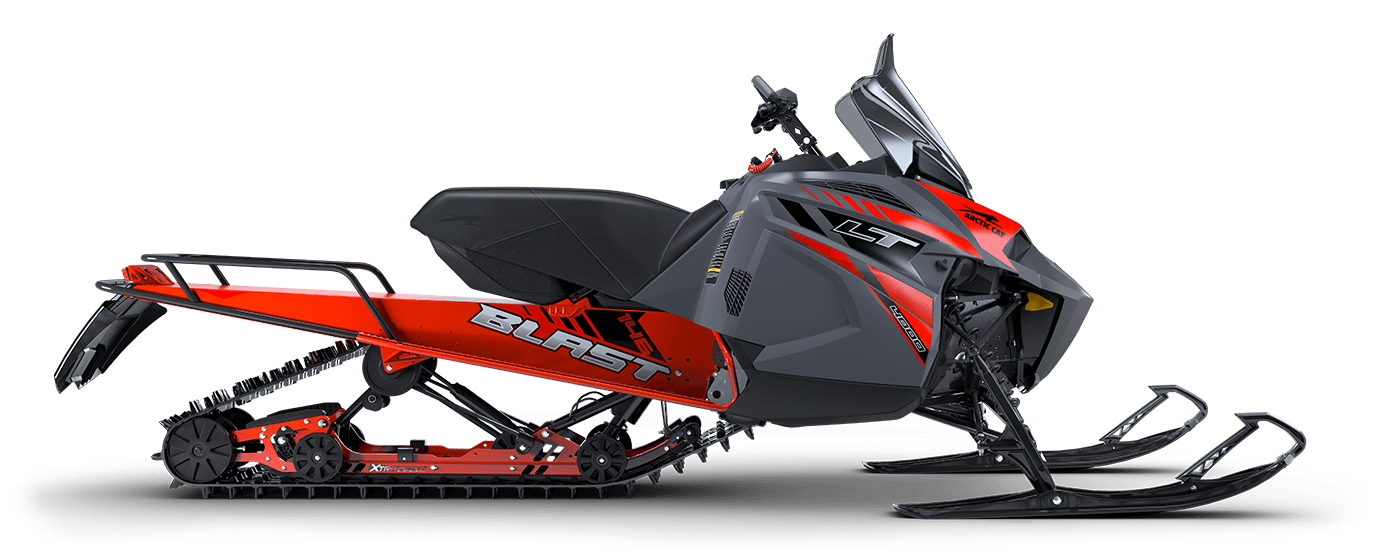

BLAST LT
Unrivaled Work-Hard, Play-Hard Versatility in a Mid-Sized Sled
BLAST™ LT is built for working and riding on your terms. With a collection of productivity-focused features, it helps you get things done faster. And when the job is finished, this lighter, more responsive sled offers a fun action-packed experience to any rider.
Highlights
Lightweight, Mid-Sized
Frame
Single-Cylinder 2-Stroke EFI
Engine
XTRA-ACTION
Rear Suspension
Turn-Key
Electric Start
Push-Button
Reverse
XTRA-ACTION SUSPENSION
This highly versatile suspension glides over rough snow and provides easier backing, plus you can lock the skid to get extra traction from the track.
LIGHTER WEIGHT, MID-SIZED CHASSIS
Easy handling and maneuverability is what this ride is all about, with a size that lets more riders capture more thrills.
TALL, VERSATILE SEATS
A higher seatback offers added support when riding alone, while an available 2-up accessory seat offers versatility for tandem trips.
REAR RACK
Pack up gear, tools and supplies for whatever your day demands.
Electric Start
The convenience and ease of electric start lets you get up and moving right away.
BEST-IN-CLASS POWER-TO-WEIGHT RATIO
An unprecedented frame design combines with an unrivaled engine to deliver an action-packed ride that the industry’s never seen.
15.5” MID-HEIGHT WINDSHIELD
Added protection from the wind lets you enjoy more of the ride.
DIGITAL GAUGE
Quickly access vehicle information on one easy-to-read display.
COBRA 146” TRACK WITH 1.6” LUG
This track was engineered with a unique lug shape and pattern to deliver the perfect balance of traction and float in loose snow, The result is improved powder performance and less track noise.
BLAST LT
Vehicle Specs
Print SpecsEngine
| BLAST LT 4000 | |
|---|---|
| Engine Type | 4000 series 2-stroke |
| Displacement | 397cc |
| Cooling | Liquid |
| Cylinders | 1 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electronic Injection |
| Ignition | Digitally Controlled CDI |
| Engine Stator Output | 270W @ 3000 RPM |
| Fuel Delivery | Electronic Fuel Injected (EFI) |
| Exhaust | APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler |
| Fuel Capacity | 11.7 gal. |
| Oil System Capacity | 3.25 qt. |
| Coolant System Capacity | 4.6 qt. |
| Minimum Octane | 91 |
Powertrain
| BLAST LT 4000 | |
|---|---|
| Drive Clutch | CVTech Trailbloc |
| Driven Clutch | CVTech Invance |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder w/ Lightweight Caliper |
| Clutch Calibration | 0-5,000 ft |
| Gearing | 19/50 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 8 tooth, 2.86 pitch, involute |
| Reverse | Push-button Engine |
Suspension
| BLAST LT 4000 | |
|---|---|
| Front Suspension | Arctic Mountain Suspension (AMS) |
| Ski Shocks | Hydraulic Twin Tube |
| Sway Bar | N/A |
| Front Travel | 7.2 in. |
| Rear Suspension | XTRA-ACTION Rear Suspension with Dual Shocks & Adjustable Torsion Springs |
| Front Track Shock | Hydraulic Twin Tube |
| Rear Track Shock | Hydraulic Twin Tube |
| Rear Travel | 12.5 in. |
Dimensions
| BLAST LT 4000 | |
|---|---|
| Overall Chassis Length | 128 in. |
| Overall Chassis Width | 44-45in. |
| Overall Chassis Height | 50.5 in. |
| Estimated Dry Weight | |
| Track Type | Cobra |
| Track Width | 15 in. |
| Track Length | 146 in. |
| Lug | 1.60 in. |
| Pitch | 2.86 in. |
| Ski Stance | 37.5-38.5 Adjustable |
| Ski Type/Width | Trail- 6 in. |
| Runner Type | Single Runner |
Instrumentation
| BLAST LT 4000 | |
|---|---|
| Type of Gauge | Digital |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | Indicator Light |
| Clock | N/A |
| Battery Voltage | N/A |
| Altimeter | N/A |
| Hours | Digital |
Features
| BLAST LT 4000 | |
|---|---|
| Color | Dynamic Charcaol/Fire Red |
| Heat Exchanger | Front/ Long Tunnel |
| Starter | Electric- Key |
| Handlebars | Hooked with Grab Handle, 4.5 in. Riser |
| Lighting | Halogen 1-Bulb |
| Seating | Mountain |
| Storage Components | |
| Additional Accessories | Handguards, Ice Scratchers, Mirrors, Passenger Seat, Passenger Wind Deflectors, Rear Storage, Sno Pro Brake Lever |
| Standard Accessories | Hand & Thumb Warmer, Rear Rack, Tether Switch |
| Windshield | 15.5 in. Mid-Height |
