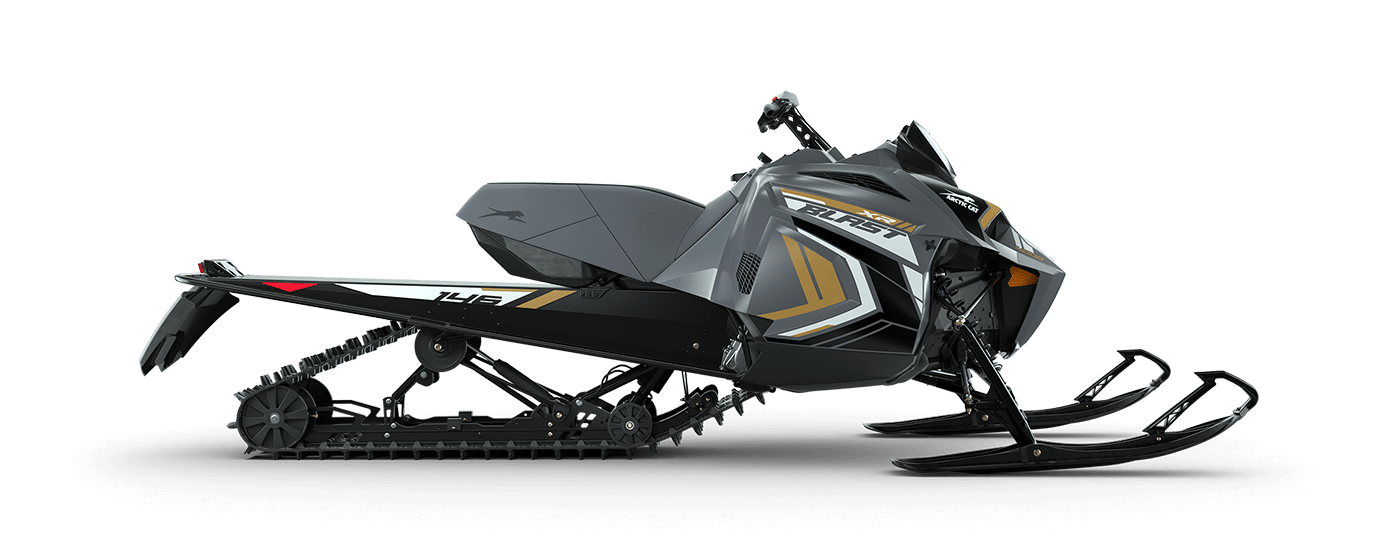

BLAST XR

A Mid-Sized Sled Built for the Trail and the Backcountry, with Comfort and Speed Included

BLAST XR

BLAST™ XR comes standard with crossover versatility. Equipped with slide-rail, dual shock rear suspension, and a non-articulating twin rail frame, it makes it easier for all types of riders to face the most challenging of terrain.

Watch Video

Highlights

Lightweight, Mid-Sized

Chassis

Single-Cylinder

2 EFI Engine

Cobra 146" Track

With 1.6" Lug

Turn-Key

Electric Start

Slide-Rail

Suspension

BLAST XR 4000

An electrifying mid-sized sled powered by an industry-first 400cc single-cylinder EFI 2 stroke engine.

BLAST XR 4000

TRAIL BLAZER KIT

Make sure you're prepared for the season with this kit that includes:

  • Proclimb Front Bumper
  • Trail Pack
  • High Windscreen
BLAST XR EFI Engine

Single Cylinder 2-Stroke EFI Engine

An engine the industry's never seen, this powerhouse drives a responsive, exciting ride like you've never experienced.

Learn More
Single Cylinder 2-Stroke EFI Engine

With an industry-first design that's compact and lightweight (under 50 pounds), this EFI engine brings 65-hp (397cc) performance to every ride. A 3-stage exhaust valve system take this power to the next level, delivering improved throttle response and better overall engine performance. As a liquid-cooled engine, it thrives in low-snow conditions -- and a counterbalance shaft eliminates most engine vibration. The result -- a lightweight-but-mighty power source that fuels a ride like no other

BLAST XR Slide Rail Suspension

Slide-Rail Suspension

With a full 12.5 inches of travel, this responsive rear suspension soaks up any bump on the trail to keep the ride stable and smooth.

BLAST XR Mid Size Chassis

Lighter Weight, Mid-Sized Chassis

Easy handling maneuverability is what this ride is all about, with a size that lets more riders capture more thrills.

60th Anniversary Decal

60th Year Anniversary Decal

Celebrate 60 years of Arctic Cat with this commemorative decal.

BLAST XR Electric Start

Turn-Key Electric Start

The convenience and ease of electric start lets you get up and moving right away.

Best In Class Power to Weight Ratio Blast XR

Best-in-Class Power-to-Weight Ratio

An unprecedented frame design combines with an unrivaled engine to deliver an action-packed ride that's easier to handle.

BLAST XR Race Height Windshield

4.0" Race-Height Windscreen

A lower-profile, race-ready windshield gives you a new level of visibility (XR Model Only).

BLAST XR Digital Gauge

Digital Guage

Quickly access vehicle information on one, easy-to-read display.

BLAST XR

BLAST XR

Vehicle Specs

Print Specs

Engine

BLAST XR 4000
Engine Type 4000 Series, 2-Stroke
Displacement 397cc
Cooling Liquid
Cylinders 1
Bore x Stroke 85 x 70 mm
Lubrication Electronic Injection
Ignition Digitially Controlled CDI
Engine Stator Output 270W @ 3000 RPM
Fuel Delivery Electronic Fuel Injected (EFI)
Exhaust APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler
Fuel Capacity 11.7 gal.
Oil System Capacity 3.25 qt.
Coolant System Capacity 5.0 qt.
Minimum Octane 91

Powertrain

BLAST XR 4000
Drive Clutch CVTech Trailbloc
Driven Clutch CVTech Invance
Drive System Arctic Drive System
Brakes Stealth Hydraulic Master Cylinder w/ Lightweight Caliper
Clutch Calibration 0-5,000 ft.
Gearing 19/50
Chain Pitch 90
Track Drive Sprocket 8 Tooth, 2.86 pitch, Involute
Reverse Push-Button Engine

Suspension

BLAST XR 4000
Front Suspension Arctic Mountain Suspension (AMS)
Ski Shocks Hydraulic Twin Tube
Sway Bar N/A
Front Travel 7.2 in.
Rear Suspension Slide-Rail, Dual Shock and Adjustable Torsion Springs
Front Track Shock Hydraulic Twin Tube
Rear Track Shock Hydraulic Twin Tube
Rear Travel 12.5 in.

Dimensions

BLAST XR 4000
Overall Chassis Length 128 in.
Overall Chassis Width 44-45 in.
Overall Chassis Height 50.5 in.
Track Type Cobra
Track Width 15 in.
Track Length 146 in.
Lug 1.60 in.
Pitch 2.86 in.
Ski Stance 37.5-38.5 in. Adjustable
Ski Type/Width Trail - 6 in.
Runner Type Single Runner

Instrumentation

BLAST XR 4000
Type of Gauge Digital
Speedometer Digital
Tachometer Digital
Odometer Digital
Fuel Digital
Oil Indicator Light
Coolant Indicator Light
Clock N/A
Battery Voltage N/A
Altimeter N/A
Hours Digital

Features

BLAST XR 4000
Color Black/Gold
Heat Exchanger Front/ Long Tunnel
Starter Turnkey Electric Start
Handlebars Hooked with Grab Handle, 4.5 in. Riser
Lighting Halogen 1-Bulb
Seating Mid-Size
Storage Components
Additional Accessories Front Bumper, Goggle Holder, Handguards, Ice Scratchers, Mirrors, Rear Rack, Rear Storage, Sno Pro Brake Lever, Tow Hitch
Standard Accessories Hand & Thumb Warmer, Tether Switch
Windshield 4 in. Low-Height
