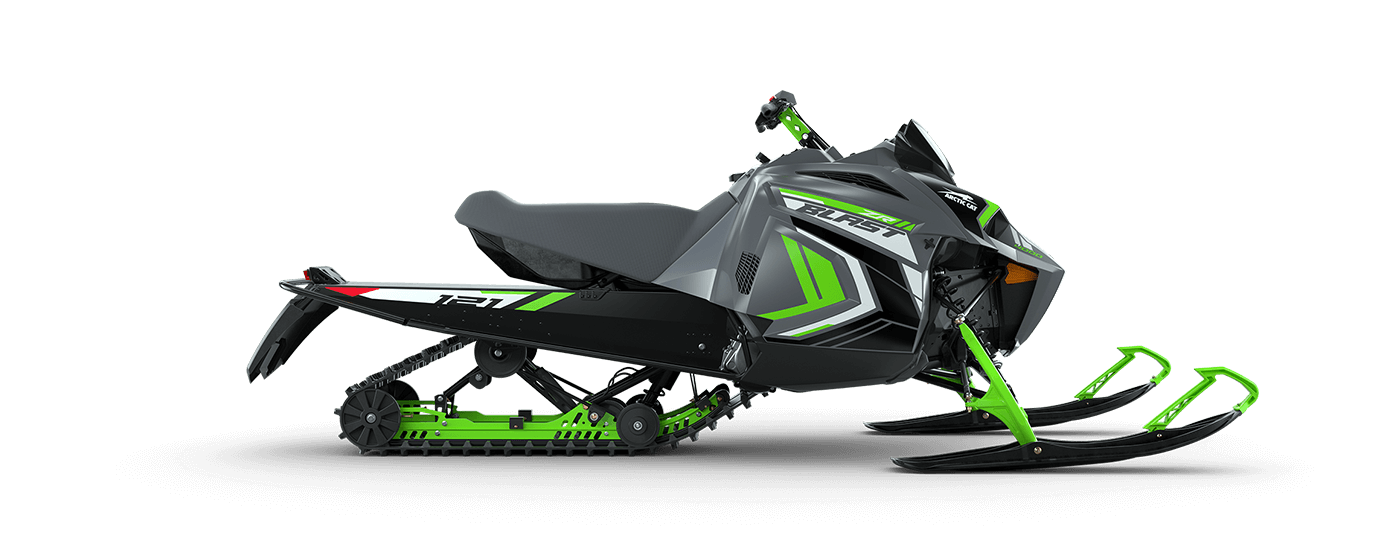

BLAST ZR
A Mid-Sized Trailblazer with a Ride Like No Other
BLAST™ ZR® opens up more trails to more riders. Loaded with many of the same features as the racing champions that came before it, the BLAST delivers easier handling and a more responsive ride like you’ve never experienced.
Watch VideoHighlights
Lightweight, Mid-Sized
Chassis
Single-Cylinder 2-Stroke EFI
Engine
Slide-Rail
Suspension
Turn-Key
Electric Start
Push-Button
Reverse
SINGLE-CYLINDER 2-STROKE EFI ENGINE
An engine the industry’s never seen, this powerhouse drives a responsive, exciting ride like you’ve never experienced.
Learn More
SLIDE-RAIL SUSPENSION
With a full 10.7 inches of travel, this responsive rear suspension soaks up any bump on the trail to keep the ride stable and smooth.
Lighter Weight, Mid-Sized Chassis
Easy handling and maneuverability is what this ride is all about, with a size that lets more riders capture more thrills.
Turn-Key Electric Start
The convenience and ease of electric start lets you get up and moving right away.
BEST-IN-CLASS POWER-TO-WEIGHT RATIO
An unprecedented frame design combines with an unrivaled engine to deliver an action-packed ride that's easier to handle.
4.0” RACE-HEIGHT WINDSCREEN
A lower-profile, race-ready windshield gives you a new level of visibility.
DIGITAL GAUGE
Quickly access vehicle information on one easy-to-read display.
60th Anniversary Decal
Celebrate 60 years of Arctic Cat with this commemorative decal.
BLAST ZR
Vehicle Specs
Print SpecsEngine
| BLAST ZR 4000 | |
|---|---|
| Engine Type | 4000 Series, 2-Stroke |
| Displacement | 397cc |
| Cooling | Liquid |
| Cylinders | 1 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electronic Injection |
| Ignition | Digitially Controlled CDI |
| Engine Stator Output | 270W @ 3000 RPM |
| Fuel Delivery | Electronic Fuel Injected (EFI) |
| Exhaust | APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler |
| Fuel Capacity | 11.7 gal. |
| Oil System Capacity | 3.25 qt. |
| Coolant System Capacity | 4.6 qt. |
| Minimum Octane | 91 |
Powertrain
| BLAST ZR 4000 | |
|---|---|
| Drive Clutch | CVTech Trailbloc |
| Driven Clutch | CVTech Invance |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder w/ Lightweight Caliper |
| Clutch Calibration | 0-5,000 ft. |
| Gearing | 19/50 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 9 Tooth, 2.52 pitch, Involute |
| Reverse | Push-Button Engine |
Suspension
| BLAST ZR 4000 | |
|---|---|
| Front Suspension | Arctic Mountain Suspension (AMS) |
| Ski Shocks | Hydraulic Twin Tube |
| Sway Bar | N/A |
| Front Travel | 7.2 in. |
| Rear Suspension | Slide-Rail, Dual Shock and Adjustable Torsion Springs |
| Front Track Shock | Hydraulic Twin Tube |
| Rear Track Shock | Hydraulic Twin Tube |
| Rear Travel | 10.7 in. |
Dimensions
| BLAST ZR 4000 | |
|---|---|
| Overall Chassis Length | 115 in. |
| Overall Chassis Width | 44-45 in. |
| Overall Chassis Height | 38 in. |
| Track Type | Standard |
| Track Width | 14 in. |
| Track Length | 121 in. |
| Lug | 1 in. |
| Pitch | 2.52 in. |
| Ski Stance | 37.5-38.5 in. Adjustable |
| Ski Type/Width | Trail - 6 in. |
| Runner Type | Single Runner |
Instrumentation
| BLAST ZR 4000 | |
|---|---|
| Type of Gauge | Digital |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | Indicator Light |
| Clock | N/A |
| Battery Voltage | N/A |
| Altimeter | N/A |
| Hours | Digital |
Features
| BLAST ZR 4000 | |
|---|---|
| Color | Dynamic Charcoal/Medium Green, Dynamic Charcoal/Blue |
| Heat Exchanger | Front/ Long Tunnel |
| Starter | Turnkey Electric Start |
| Handlebars | Hooked with Grab Handle, 4.5 in. Riser |
| Lighting | Halogen 1-Bulb |
| Seating | Mid-Size |
| Storage Components | |
| Additional Accessories | Front Bumper, Goggle Holder, Handguards, Ice Scratchers, Mirrors, Rear Rack, Rear Storage, Sno Pro Brake Lever, Tow Hitch |
| Standard Accessories | Hand & Thumb Warmer, Tether Switch |
| Windshield | 4 in. Low-Height |
