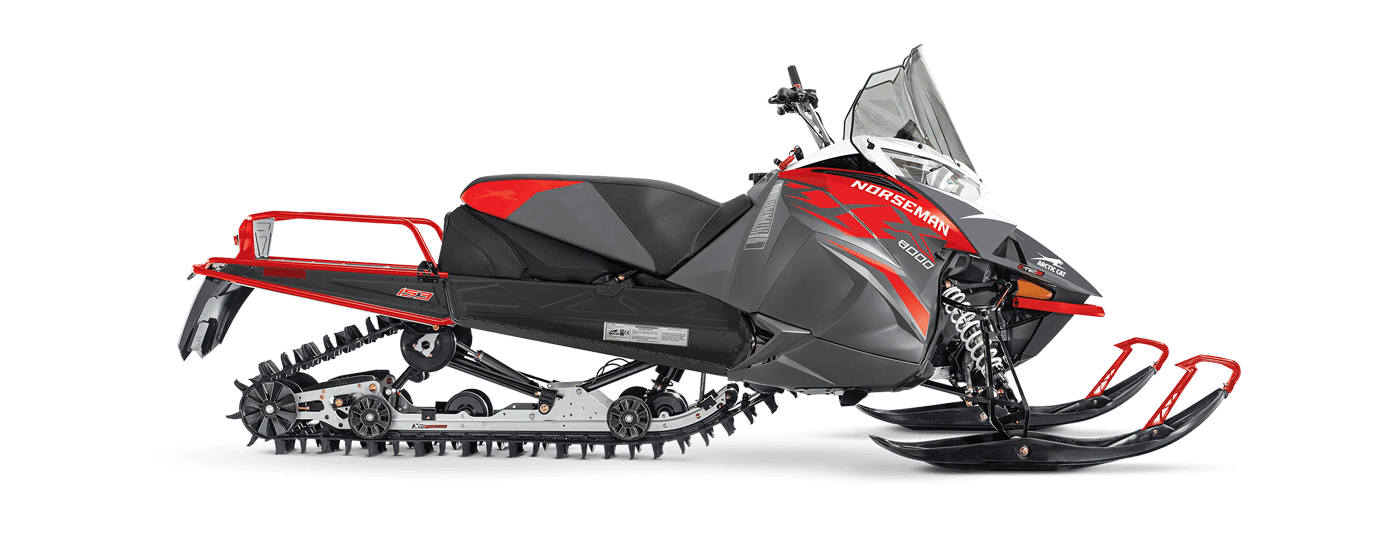

Norseman
Sport Utility with a Work Ethic
Wherever you’re working, expect the unexpected – just not from your snowmobile. Norseman tackles any trail or task with dependable power, all-purpose hauling, and anything else you need to get the job done.
Highlights
8000-Series
C-TEC2 Engine
XTRA-ACTION
Adjustable Rear Suspension
Painted Chassis
Prevents Corrosion
Wide Skis
Stay on Top of the Snow
8000 Series C-TEC2 Engine
The 8000-series engine packs serious power into the Norseman X 8000.
35.5-41.5 Adjustable Ski Stance
Easily adjust your ski stance for maximum adaptability.
Painted Chassis
Work hard, play hard, and keep your snowmobile looking top-notch with a painted chassis.
ADAPT CVT System
Lightweight narrow design that increases performance and belt life. The all-new Arctic Cat ADAPT CVT system provides improved throttle response and smooth power delivery.
Watch Video
XTRA-ACTION Adjustable Rear Suspension
The XTRA-ACTION Adjustable Rear Suspension ensures you have the best maneuverability on the trails and ultimate traction for towing and hauling.
Electric Push Button Start
The convenience and ease of electric start let you get up and moving right away.
60th Anniversary Decal
Celebrate 60 years of Arctic Cat with this commemorative decal.
Norseman
Vehicle Specs
Print SpecsEngine
| Norseman X 8000 | |
|---|---|
| Engine Type | 8000 Series, 2-Stroke |
| Displacement | 794cc |
| Cooling | Liquid |
| Cylinders | 2 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electric Injection |
| Ignition | Digitally Controlled CDI |
| Engine Stator Output | 270 W @ 3000 RPM |
| Fuel Delivery | Next Generation C-Tec2 |
| Exhaust | APV with tuned pipe, pipe sensor and stainless steel manifold and muffler |
| Fuel Capacity | 13.7 gal. |
| Oil System Capacity | 3.25 qt. |
| Coolant System Capacity | 6.2 qt. |
| Minimum Octane | 91 |
Powertrain
| Norseman X 8000 | |
|---|---|
| Drive Clutch | ADAPT CVT |
| Driven Clutch | ADAPT CVT |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder |
| Clutch Calibration | 0-5,000 ft. |
| Gearing | 19/50 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 8 Tooth, 3.0 pitch, exvolute |
| Reverse | Push-Button Engine |
Suspension
| Norseman X 8000 | |
|---|---|
| Front Suspension | Arctic Race Suspension (ARS) |
| Ski Shocks | Arctic Cat IFP 1.5 |
| Sway Bar | N/A |
| Front Travel | 9 in. |
| Rear Suspension | XTRA-ACTION Rear Suspension with adjustable torsion springs, and Torque-Sensing Link rear arm, Overload Spring kit |
| Front Track Shock | Arctic Cat IFP 1.5 |
| Rear Track Shock | Arctic Cat IFP 1.5 |
| Rear Travel | 13.5 in. |
Dimensions
| Norseman X 8000 | |
|---|---|
| Overall Chassis Length | 132 |
| Overall Chassis Width | 45.5-51.5 |
| Overall Chassis Height | 52 in. |
| Track Type | Power Claw |
| Track Width | 15 in. |
| Track Length | 153 in. |
| Lug | 2.25 in |
| Pitch | 3 |
| Ski Stance | 35.5-41.5 Adjustable |
| Ski Type/Width | ProUte - 10/8 |
| Runner Type | Single Runner |
Instrumentation
| Norseman X 8000 | |
|---|---|
| Type of Gauge | Deluxe Digital |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | Digital/Indicator Light |
| Clock | Digital |
| Battery Voltage | Digital |
| Altimeter | Digital |
| Hours | Digital |
Features
| Norseman X 8000 | |
|---|---|
| Color | Fire Red |
| Heat Exchanger | Front/Long Tunnel |
| Starter | Electric Push Button |
| Handlebars | Hooked with Grab Handle, 6.5 in. Riser |
| Lighting | Dual Halogen 2-Bulb |
| Seating | Mountain |
| Storage Components | Tunnel Bag |
| Additional Accessories | Goggle Holder, Handguards, Mirrors, Passenger Footrests, Passenger Seat, Passenger Wind Deflector, Visor Plug-ins |
| Standard Accessories | Hand & Thumb Warmers, Front Sport Bumper, Tow Hitch, Wind Deflectors, Ice Scratchers, Rear Overload Springs, Rear Rack, Tether Switch, 12V Outlet, Tunnel Bag |
| Windshield | 14 in. Mid-height |
*Price includes a one year warranty. Price does not include freight or set-up fees.
