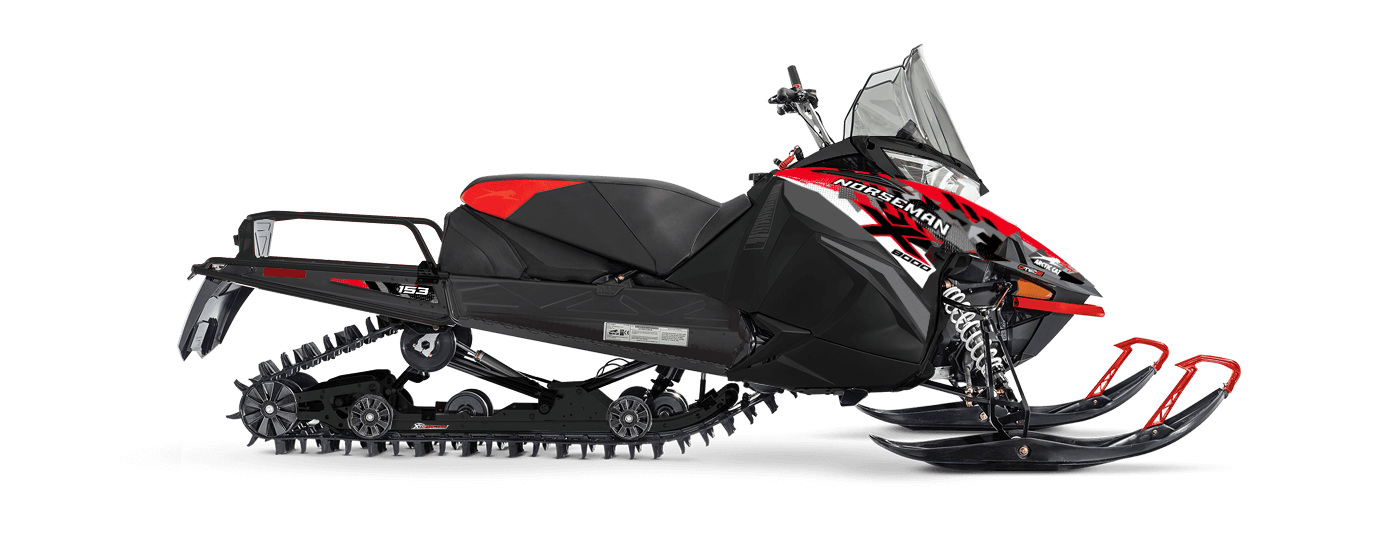

Norseman X
Designed to Work Smarter
Ready to tackle your work with ease? The Norseman is the ultimate tool to get the job done. No matter the task, this powerful sled will rise to the challenge and take your work to the next level. Built for towing, hauling, climbing, and more, the Norseman is the ultimate do-everything snowmobile for the ultimate go-getter.
Highlights
8000-Series
C-TEC2 Engine
XTRA-ACTION
Adjustable Rear Suspension
Painted Chassis
To Prevent Corrosion
Wide Skis
Stay on Top of the Snow
SERIOUS POWER
8000 SERIES C-TEC2 ENGINE
The 8000-series, C-TEC2 twin cylinder, two-stroke engine is the heart and soul of the Norseman. This heavy-duty engine is designed with the most difficult tasks in mind- hauling, towing and climbing through the snow. It delivers enough power to get the job done every time.
VERSATILE DESIGN
35.5"- 41.5" ADJUSTABLE SKI STANCE
The adjustable ski stance allows the Norseman to adapt to whatever conditions it may face. This exceptional versatility makes it simple to switch from task to task, regardless of how different they may be.
STRIKING APPEARANCE, INTENTIONAL DESIGN
PAINTED CHASSIS
Just because the Norseman is designed to work hard doesn’t mean it can’t look good in the process. Keep your snowmobile looking top-notch with a painted chassis. Not only does it look striking, but this paint also prevents corrosion, keeping your vehicle in excellent condition over time and reducing standard wear-and-tear.
SMOOTH PERFORMANCE
ADAPT CVT SYSTEM
The lightweight, durable ADAPT™ CVT System is the only self-adjusting clutch available on a stock sled. ADAPT has an idler bearing that keeps belt temperature down, helping belts stay tighter and giving you a smoother takeoff and consistent power delivery at slow speeds.
HEAVY-DUTY SUPPORT
XTRA-ACTION ADJUSTABLE REAR SUSPENSION
The XTRA-ACTION Adjustable Rear Suspension is built to tackle any challenge or condition you face. The adaptable design can be locked for increased traction while towing heavier loads or unlocked for improved flotation when backing up in deep snow.
QUICK, EASY START
ELECTRIC PUSH BUTTON START
The convenience and ease of electric start lets you get up and moving right away.
Norseman X
Vehicle Specs
Print SpecsEngine
| Norseman X 8000 | |
|---|---|
| Engine Type | 8000, 2-Stroke |
| Displacement | 794cc |
| Cooling | Liquid |
| Cylinders | 2 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electronic Injection |
| Ignition | Digitally Controlled CDI |
| Engine Stator Output | 270W @ 3000 RPM |
| Fuel Delivery | Dual Stage Injector |
| Exhaust | APV w/ Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler |
| Fuel Capacity | 13.7 gal. |
| Oil System Capacity | 3.25 qt. |
| Coolant System Capacity | 6.2 qt. |
| Minimum Octane | 91 |
Powertrain
| Norseman X 8000 | |
|---|---|
| Drive Clutch | ADAPT |
| Driven Clutch | ADAPT |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder |
| Clutch Calibration | 0-5,000 ft. |
| Gearing | 21/49 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 8 Tooth, 3.0 Pitch, Exvolute |
| Reverse | Push-Button Engine |
Suspension
| Norseman X 8000 | |
|---|---|
| Front Suspension | Arctic Race Suspension (ARS) |
| Ski Shocks | Arctic Cat IFP 1.5 |
| Sway Bar | N/A |
| Front Travel | 9 in. |
| Rear Suspension | XTRA-ACTION Rear Suspension with adjustable torsion springs, and Torque-Sensing Link Rear Arm |
| Front Track Shock | Arctic Cat IFP 1.5 |
| Rear Track Shock | Arctic Cat IFP 1.5 |
| Rear Travel | 13.5 in. |
Dimensions
| Norseman X 8000 | |
|---|---|
| Overall Chassis Length | 132 in. |
| Overall Chassis Width | 45.5-51.5 in. |
| Overall Chassis Height | 52 in. |
| Track Type | Powerclaw |
| Track Width | 15 in. |
| Track Length | 153 in. |
| Lug | 2.25 in. |
| Pitch | 3.00 in. |
| Ski Stance | 35.5-41.5 in. Adjustable |
| Ski Type/Width | ProUte - 10/8 |
| Runner Type | Single Runner |
Instrumentation
| Norseman X 8000 | |
|---|---|
| Type of Gauge | Deluxe Digital |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | Digital/ Indicator Light |
| Clock | Digital |
| Battery Voltage | Digital |
| Altimeter | Digital |
| Hours | Digital |
Features
| Norseman X 8000 | |
|---|---|
| Color | Black/Fire Red |
| Heat Exchanger | Front/Long Tunnel |
| Starter | Electric Push-Button |
| Handlebars | Hooked w/ Grab Handle |
| Lighting | Dual Halogen 2-Bulb |
| Seating | Mountain |
| Standard Accessories | Norseman Bag, 12V Outlet, Sport Front Bumper, Hand & Thumb Warmer, Brake Disc, Standard Steering, Rear Rack, Tether Switch, Pivot Tow Hitch |
| Windshield | 14 in. Mid-Height |
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
