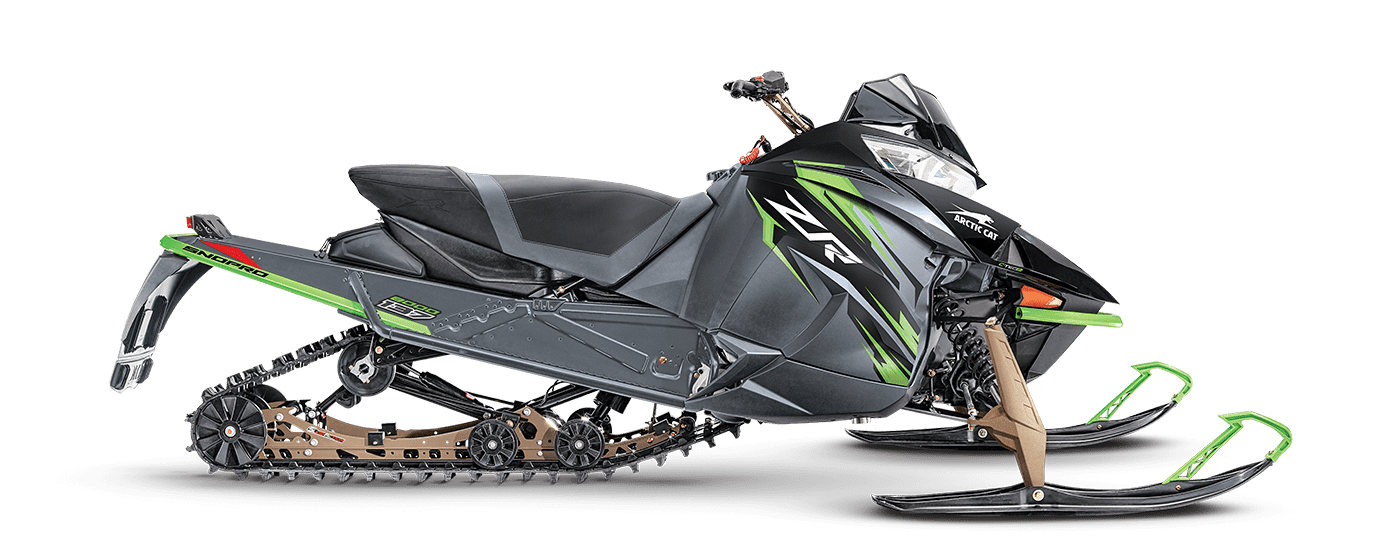

ZR Sno Pro

An Aggressively Calibrated Trail Snowmobile with Firm Suspension

Dial up any trail on the map and tackle it with confidence. ZR Sno Pro’s aggressively calibrated Arctic Cat® IFP ski shocks and rear shocks give you a firm, solid ride that hugs the trail.

Highlights

Firm Suspension

for Aggressive Riding

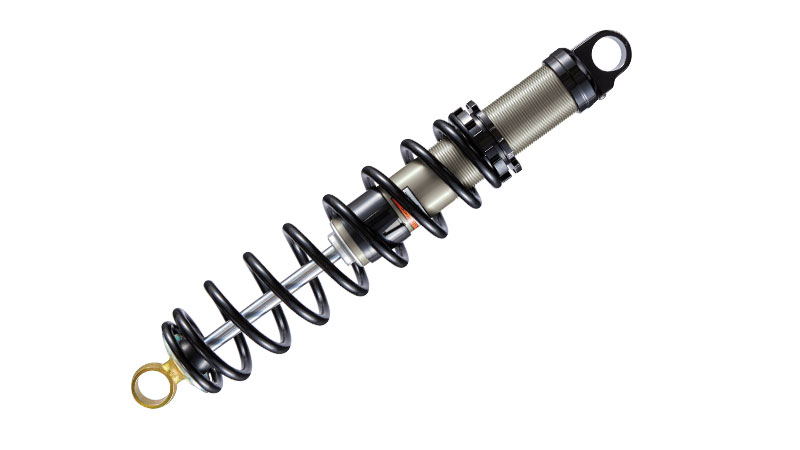

Arctic Cat IFP

Gas Shocks

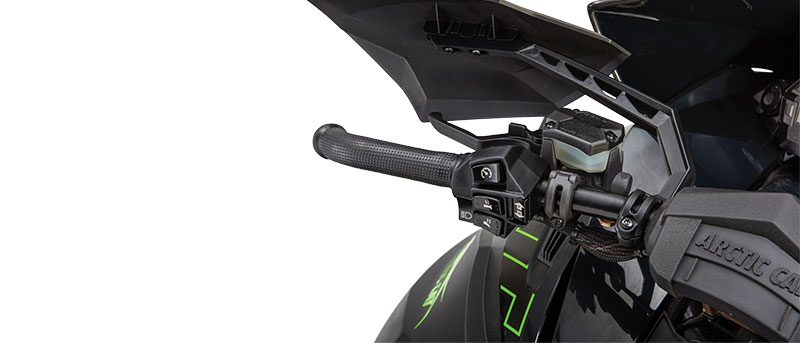

Push-Button

Electric Start

ARS II

Front Suspension

137" SLIDE-ACTION

Rear Suspension

ZR 8000 Sno Pro

The most powerful ZR Sno Pro®, with our next-gen 8000-Series CTEC2™ engine for a new level of clean 2-stroke engine performance.

ZR 8000 Sno Pro

ZR 6000 Sno Pro

Powered by the 6000-Series 599cc C-TEC2™ engine with Dual-Stage Injection (DSI) that leads the 125-HP class in performance.

ZR 6000 Sno Pro
Lowered Ride Height and 1.0" Ripsaw Track

With a lower ride height, the ZR Sno Pro is built for speed, letting  you hug every turn, and race down every straightaway. Plus, it features a 1.0-inch Ripsaw Track to enhance speed, traction and handling. Its aggressive, angled lugs grip the trail, while the chopped design provides unmatched handling, acceleration and hard packed surfaces. The narrow lug base reduces rolling when you open it up. Built for long-term durability over miles and miles of rides, the Ripsaw Track makes the most of ZR Sno Pro's power and precision.

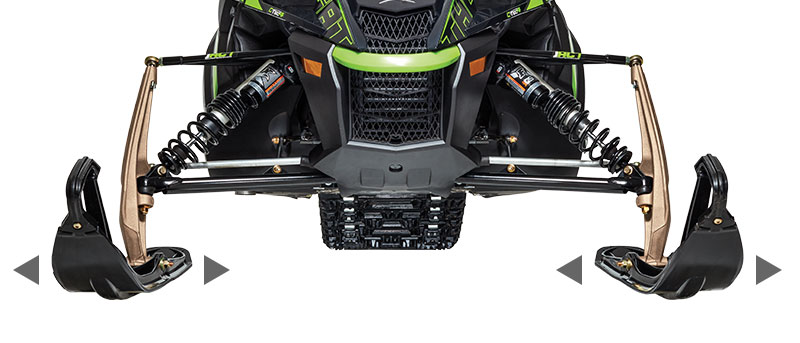

ARS II Front Suspension

The next level of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence on- or off-trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.

SLIDE-ACTION Rear Suspension

Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front arm won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, plus three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.

ZR Sno Pro Engine Lineup

Choose from two powerful, capable engine families for your ZR Limited. The new 8000-Series C-TEC4 delivers the next level of ultra-clean, ultra-responsive Arctic Cat 2-stroke engine performance with enhanced 165-hp class power and precision oil. Designed by designed by Arctic Cat and built in St. Cloud, Minn, this new 794cc C-TEC2 twin also features new cylinders, pistons, combustion chamber, flywheel, and fuel rail, plus a new fuel calibration strategy and Arctic Power Valve system with 3-stage control of the auxiliary exhaust ports via side valves.

Or opt for the 6000-Series 599cc C-TEC2 Engine with Dual-Stage Injection (DSI)  the first clean technology Arctic Cat 2-stroke engine and the leader in 125-hp class performance.

Both engines feature:

  • ECM-controlled electronic oil pump
  • Batteryless EFI
  • Exhaust Pop Temperature Sensor (EPTS)
  • Knock Sensor
  • Engine Reverse Technology
  • An exceedingly robust, lightweight design

Vehicle Specs

ZR 6000 Sno Pro ZR 8000 Sno Pro
Engine Type 6000 C-TEC2, 2-Stroke 8000 C-TEC2, 2-Stroke
Displacement 599cc 794cc
Cooling Liquid
Cylinders 2
Bore x Stroke 73.8 x 70 mm 85 x 70 mm
Lubrication Electronic Injection
Ignition Digitally Controlled CDI
Engine Starter Output 270 W @ 3000 RPM
Fuel Delivery Dual Stage Injection
Exhaust APV with Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler
Fuel Capacity 11.7 gal.
Oil System Capacity 3.25 qt.
Coolant System Capacity 6 qt.
Minimum Octane 91
ZR 6000 Sno Pro ZR 8000 Sno Pro
Drive Clutch TEAM Rapid Response II
Driven Clutch TEAM Rapid Reaction BOSS
Drive System Arctic Drive System
Brakes Stealth Hydraulic Master Cylinder
Clutch Calibration 0-5,000 ft.
Gearing 22/48 21/41
Chain Pitch 90 86
Track Drive Sprocket 9 Tooth, 2.86 Pitch, Involute
Reverse Push-Button Engine
ZR 6000 Sno Pro ZR 8000 Sno Pro
Front Suspension Arctic Race Suspension (ARS) II
Ski Shocks Arctic Cat IFP 1.5
Sway Bar Standard
Front Travel 10 in.
Rear Suspension SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm and Adjustable Torsion Springs SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm and Adjustable Torsion Springs
Front Track Shock Arctic Cat IFP 1.5
Rear Track Shock Arctic Cat IFP 2.0
Rear Travel 13.5 in.
ZR 6000 Sno Pro ZR 8000 Sno Pro
Overall Chassis Length 125 in.
Overall Chassis Width 48-49 in.
Overall Chassis Height 48 in.
Estimated Dry Weight 504 lbs. 513 lbs.
Track Type Ripsaw
Track Width 15 in.
Track Length 137 in.
Lug 1 in.
Pitch 2.86 in.
Ski Stance 42-43 in. - Adjustable
Ski Type/Width Trail - 6 in.
Runner Type Single Runner with Carbide
ZR 6000 Sno Pro ZR 8000 Sno Pro
Type of Gauge Deluxe Digital
Speedometer Digital
Tachometer Digital
Odometer Digital
Fuel Digital
Oil Indicator Light
Coolant Digital/Indicator Light
Clock Digital
Battery Voltage Digital
Altimeter Digital
Hours Digital
ZR 6000 Sno Pro ZR 8000 Sno Pro
Color Charcoal/Green
Heat Exchanger Front/Long Tunnel
Starter Electric Push-Button Electric Push Button
Handlebars Hooked, 5.5 in. Riser
Lighting Dual Halogen 2-Bulb
Seating High Performance
Storage Components Tunnel Bag
Additional Accessories Goggle Holder, Handguards, Ice Scratchers, Mirrors, Passenger Seat, Rear Rack, Side Panel Wind Deflectors, Sno Pro Hooked Brake Lever, Tow Hitch, Tunnel Flare, Visor Plug-Ins
Standard Accessories 12V Outlet, Hand and Thumb Warmers, Sport Front Bumper, Standard Brake Disc, Standard Steering, Tether Switch 12V Outlet, Hand and Thumb Warmers, Sport Front Bumper, Standard Brake Disc, Standard Steering, Tether Switch

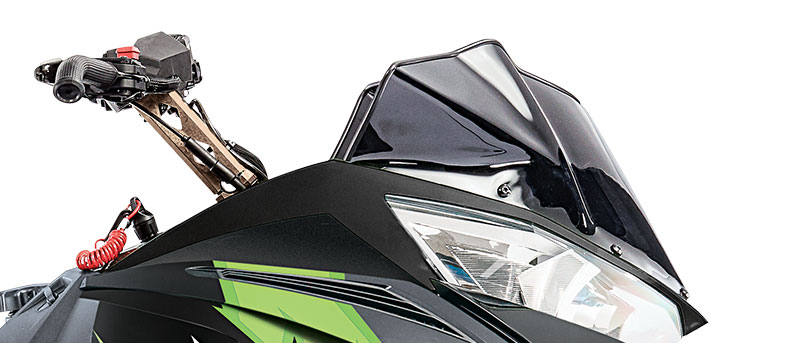

Windshield 5.5 in. Race Height 5.5 in. Race-Height
