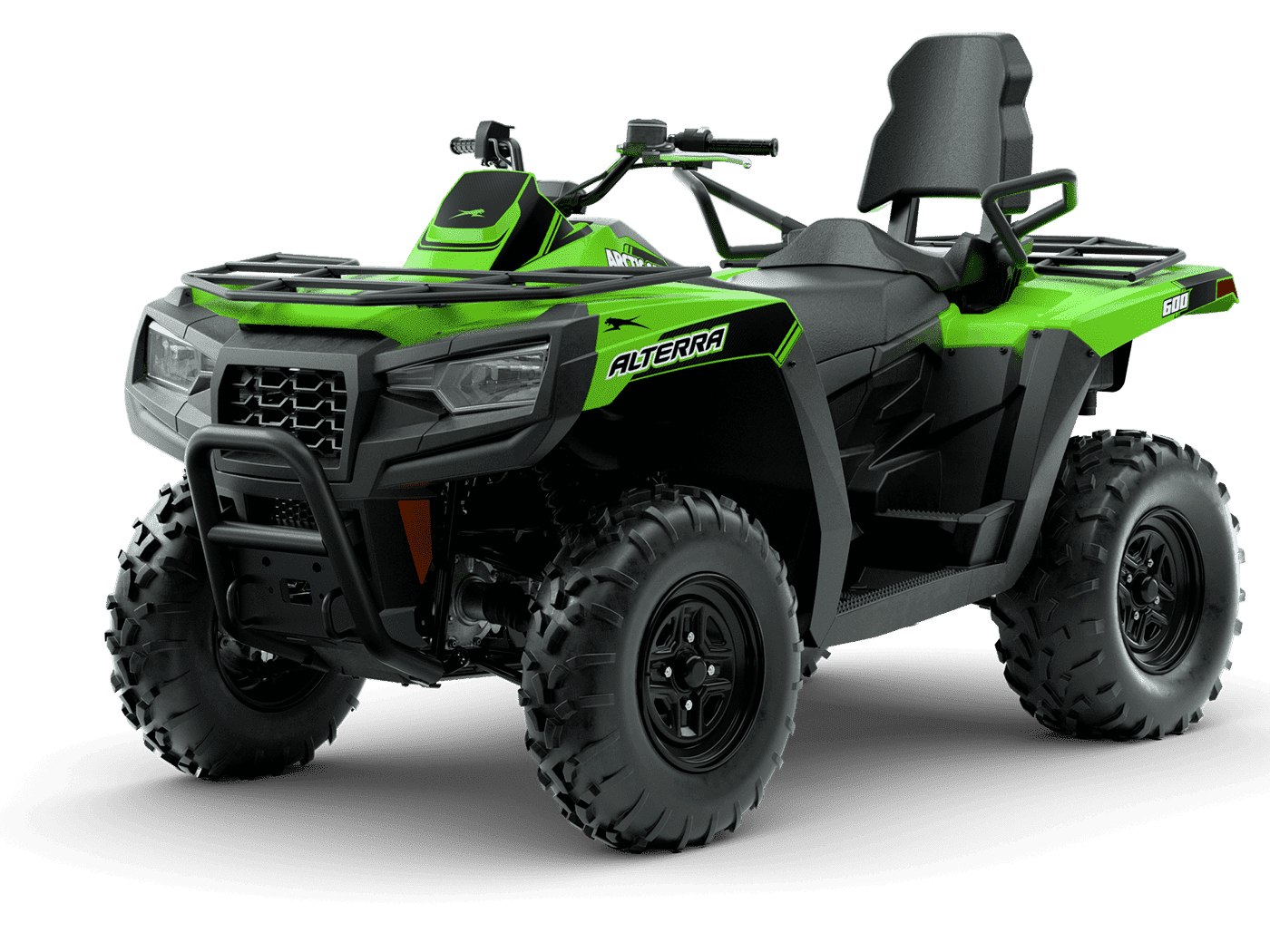

Alterra 600 TRV
Explore More Together
If you want an ATV that offers more power, control, balance, comfort, and space for two riders, the Alterra 600 TRV is your perfect match.
Shopping Tools
Alterra 600 TRV
Vehicle Specs
Print SpecsEngine & Drivetrain
| Alterra 600 TRV EPS | Alterra 600 TRV XT | Alterra 600 TRV LTD | |
|---|---|---|---|
|
Engine Type
|
Liquid-Cooled, Single Cylinder | ||
|
Displacement
|
600cc | ||
|
Drive Train
|
CVT | ||
|
Drive System
|
2WD / 4WD Electric Actuation | ||
|
Fuel System
|
EFI (Electronic Fuel Injection) | ||
|
Gear Selection
|
H/L/N/R/P | ||
|
Front Differential
|
2WD / 4WD Open | 2WD / 4WD Open | 2WD / 4WD Selectable Locker |
|
Rear Differential
|
Locked | ||
Steering & Suspension
| Alterra 600 TRV EPS | Alterra 600 TRV XT | Alterra 600 TRV LTD | |
|---|---|---|---|
|
Steering
|
Electronic Power Steering | ||
|
Front Suspension
|
Double A-Arm with 8.75 in. (22.2 cm) Travel | ||
|
Rear Suspension
|
Double A-Arm with 8.75 in. (22.2 cm) Travel | ||
|
Brake System
|
Dual Front Hydraulic Disc, Single Rear Hydraulic Disc | ||
|
Foot Brake
|
Foot Operated Rear Brake | ||
|
Parking Brake
|
Park in Transmission | ||
|
Front Tires
|
25 x 8-12 | 25 x 8-12 | 26 x 9 - 14 |
|
Rear Tires
|
25 x 10-12 | 25 x 10-12 | 26 x 11 - 14 |
|
Wheels
|
Steel | Aluminum | Aluminum |
Performance
| Alterra 600 TRV EPS | Alterra 600 TRV XT | Alterra 600 TRV LTD | |
|---|---|---|---|
|
Total Capacity
|
600 lb (272.1 kg) | ||
|
Front Rack
|
100 lbs (45.4 kg) | ||
|
Rear Rack
|
200 lbs (90.7 kg) | ||
|
Towing Capacity
|
1,050 lbs (476 kg) | ||
Dimensions
| Alterra 600 TRV EPS | Alterra 600 TRV XT | Alterra 600 TRV LTD | |
|---|---|---|---|
|
Overall Length
|
95.7 in (243 cm) | 91.1 in (231.4 cm) | 91.1 in (231.4 cm) |
|
Overall Width
|
48.8 in (123.9 cm) | ||
|
Overall Height
|
50.1 in (127.3 cm) | 50.1 in (127.3 cm) | 51.1 in (129.8 cm) |
|
Overall Weight (Dry)
|
853.1 lbs | 836.1 lbs | 897.5 lbs |
|
Wheel Base
|
58 in. (147.3 cm) | ||
|
Ground Clearance
|
11.3 in. (28.7 cm) | 11.3 in (28.7 cm) | 12.25 in (31.1 cm) |
|
Fuel Capacity
|
5.7 gal (21.6 L) | ||
|
Hitch
|
Standard 2-in. Receiver | ||
Color Options
| Alterra 600 TRV EPS | Alterra 600 TRV XT | Alterra 600 TRV LTD | |
|---|---|---|---|
|
Standard Colors
|
Medium Green/Black | Phantom Gray | Fossil |
Features
| Alterra 600 TRV EPS | Alterra 600 TRV XT | Alterra 600 TRV LTD | |
|---|---|---|---|
|
Skid Plate
|
Full Length | ||
|
Standard Instrumentation
|
Multifunctional Digital Gauge | ||
|
Lighting
|
Dual Halogen Headlights, Single LED Brake Light/Taillight | Dual Halogren Headlights, Single LED Brake Light/Taillight | Dual Halogen Headlights with LED Accents, Single LED Brake Light/Taillight |
|
Start Method
|
Electric Start | ||
|
Standard Accessories
|
Overmolded Plastic Front and Rear Rack, Front Tow Hooks | Overmolded Plastic Front and Rear Rack, Front Tow Hooks | Overmolded Plastic Front and Rear Rack, Front Tow Hooks, Locking Front Differential |
Vehicle specifications are subject to change.
