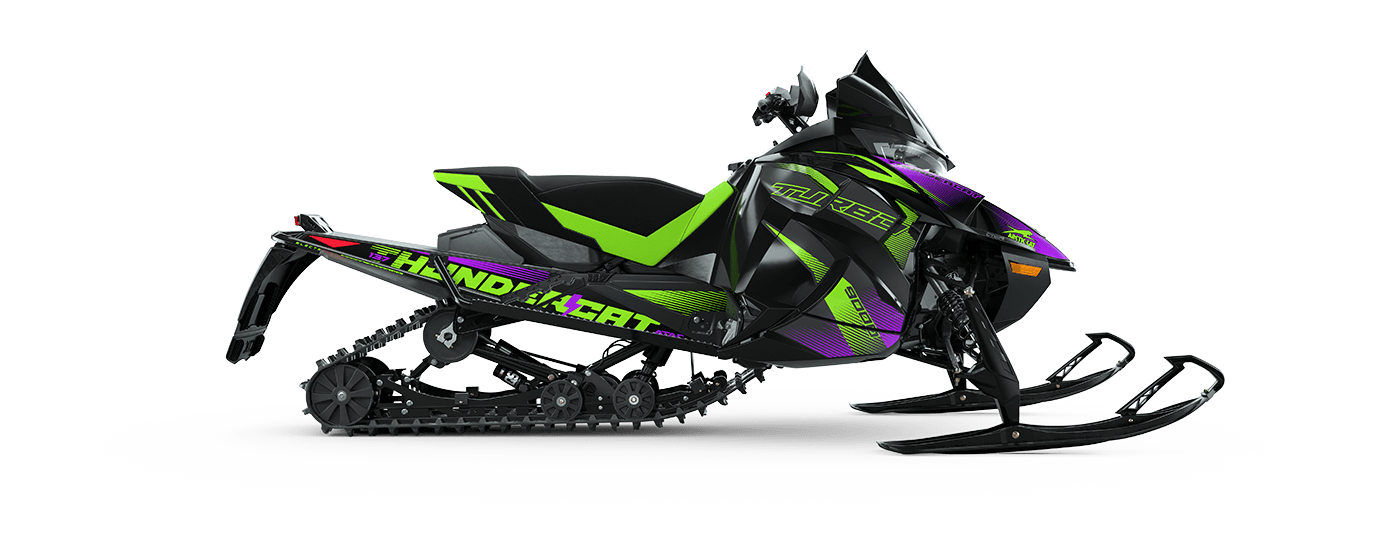

ZR Thundercat

The World’s Fastest Production Snowmobile

With the fastest, fiercest snowmobile on the planet, you'll be untouchable. The ZR® Thundercat is the ultimate ride for the speed demon in your family.

Watch Video

ZR 9000 Thundercat

  • 9000-Series C-TEC4 Turbocharged Engine
  • ATAC Adjustable On-the-Fly Suspension
  • Electronic Power Steering

ZR 9000 Thundercat

ZR Thundercat

ZR Thundercat

Vehicle Specs

Print Specs

Engine

ZR 9000 Thundercat
Engine Type
9000, 4-Stroke
Displacement
998cc
Cooling
Liquid
Cylinders
3-Turbocharged
Bore x Stroke
80 x 66.2 mm
Lubrication
Dry Sump
Ignition
Digital Controlled Coil Induction
Engine Stator Output
545 W @ 5000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI)
Exhaust
Turbocharger with stainless steel muffler
Fuel Capacity
9.9 gal.
Oil System Capacity
3.8 qt.
Coolant System Capacity
6.2 qt.
Minimum Octane
91

Powertrain

ZR 9000 Thundercat
Drive Clutch
ADAPT
Driven Clutch
ADAPT
Drive System
Arctic Drive System
Brakes
Stealth Hydraulic Master Cylinder
Clutch Calibration
0-10,000 ft.
Gearing
24/50
Chain Pitch
92
Track Drive Sprocket
9 Tooth, 2.86 Pitch, Exvolute
Reverse
Push-Button

Suspension

ZR 9000 Thundercat
Front Suspension
ARS II w/ ATAC
Ski Shocks
FOX 1.5 ZERO iQS
Sway Bar
Standard
Front Travel
9 in.
Rear Suspension
SLIDE-ACTION with 3 wheel rear axle assembly, coupling blocks, Torque-Sensing Link rear arm, adjustable torsion springs, and ATAC Adjustable On-the-Fly Suspension
Front Track Shock
Arctic Cat IFP 1.5
Rear Track Shock
FOX 2.0 ZERO iQS
Rear Travel
13.5 in.

Dimensions

ZR 9000 Thundercat
Overall Chassis Length
125 in.
Overall Chassis Width
48-49 in.
Overall Chassis Height
52 in.
Track Type
Ripsaw II
Track Width
15 in.
Track Length
137 in.
Lug
1.25 in.
Pitch
2.86 in.
Ski Stance
42-43 in. Adjustable
Ski Type/Width
Trail- 6 in.
Runner Type
Long dual runner 4-bolt w/carbide

Instrumentation

ZR 9000 Thundercat
Type of Gauge
Deluxe Digital
Speedometer
Digital
Tachometer
Digital
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Digital/ Indicator Light
Clock
Digital
Battery Voltage
Digital
Altimeter
Digital
Hours
Digital

Features

ZR 9000 Thundercat
Color
Black
Heat Exchanger
Front/Long Tunnel
Starter
Electric Push-Button
Handlebars
Hooked
Lighting
LED w/ Accent Light
Seating
High Performance
Standard Accessories
12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmer, Team Arctic Handguard, Heated Driver's Seat, Standard Brake Disc, EPS-Standard Steering, Tether Switch, Tunnel Flare
Windshield
11 in. Mid-Height
