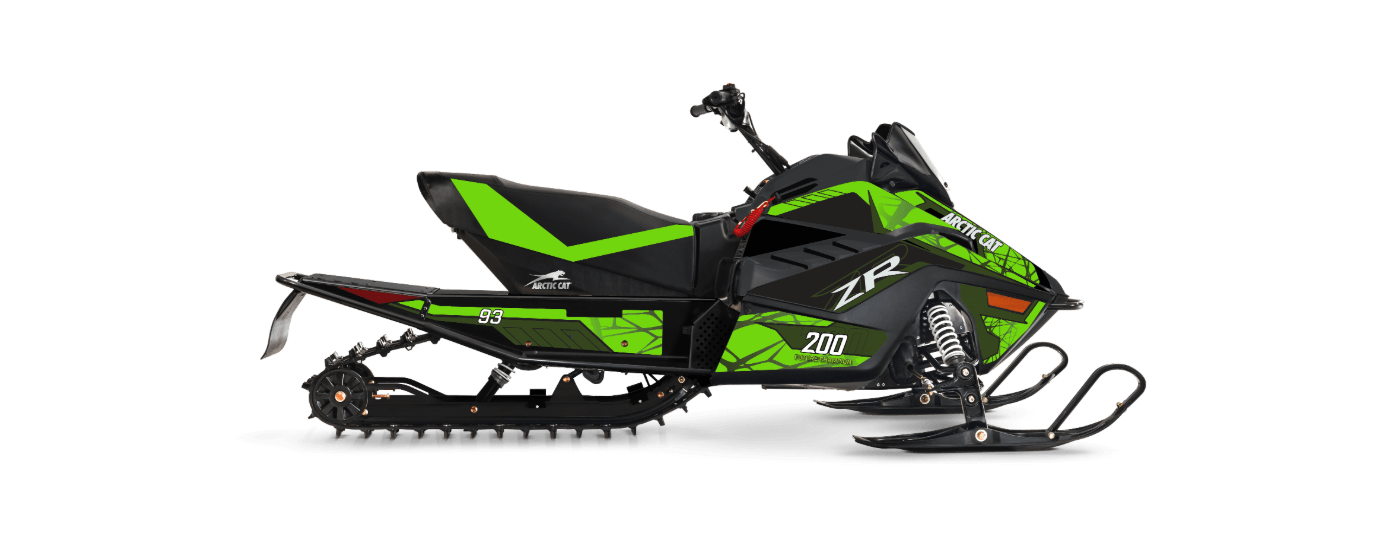

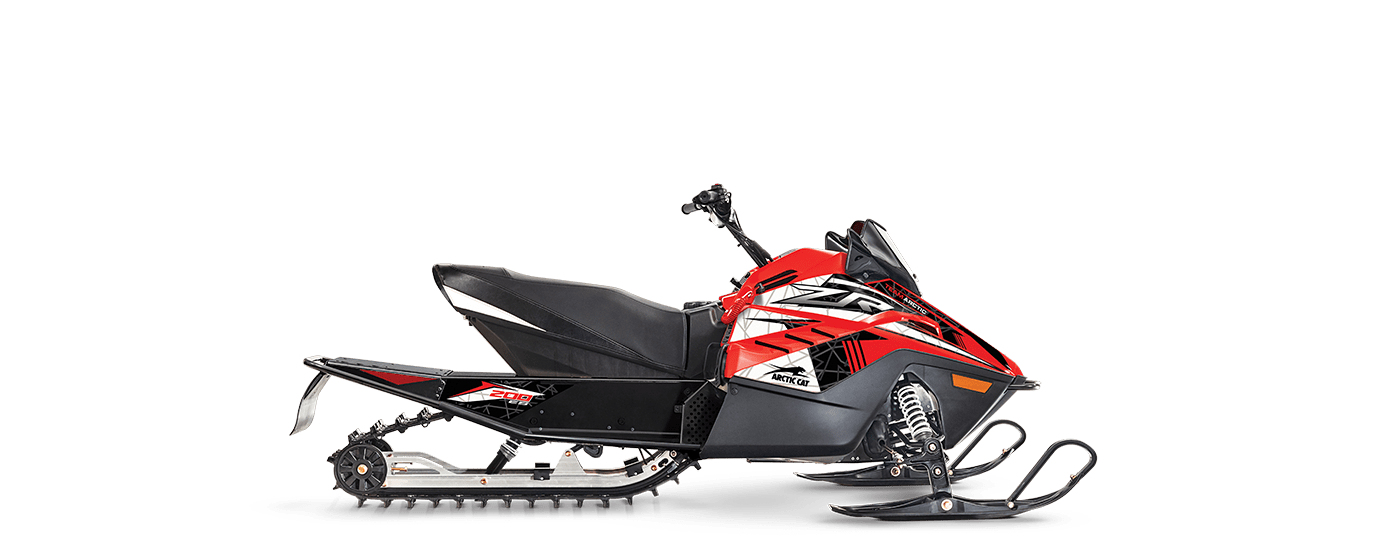

Trail-Certified, High-Performance Youth Snowmobile
For young riders who are ready to hit the trail with their parents, tackle deep snow or cruise the backyard, ZR® 200 is the ultimate ride. It’s SSCC trail-certified and features electric start to deliver the next level of snowmobile experience.
For Unparalleled Control
192cc 4-Stroke Engine
Don't let the size fool you. ZR 200 is packed with a powerful 192cc air-cooled, single-cylinder engine that doles out enough power for a fun day on the trail.
The Snowmobile Safety and Certification Committee (SSCC) gives the ZR 200 a full trail certification that lets your young rider go almost everywhere you can go.
Arctic 200 Drive System™
Get optimal power and performance with RPM-sensing drive clutch, torque-sensing driven clutch and belt-drive gearcase.
A-Arm Front Suspension
With 4.5 inches of travel and the reinforced strength of an A-Arm design, the front suspension gives young riders the same capabilities as our full-size snowmobiles.
Slide-Rail Rear Suspension
With a full 8.5 inches of travel, this responsive rear suspension soaks up any bump on the trail to keep the ride stable and smooth.
1.0-inch lugs deliver great traction and flotation in a full range of conditions.
29.5"-31.5" Adjustable Ski Stance
A 29.5-31.5-inch adjustable ski stance and deep-keel plastic skis lets you take your first corners confidently.
Turn-Key Electric Start
The convenience and ease of electric start lets you get up and moving right away.
60th Anniversary Decal
Celebrate 60 years of Arctic Cat with this commemorative decal.
Vehicle SpecsPrint Specs
|Engine Type||200, 4-Stroke|
|Bore x Stroke||70 x 50 mm|
|Engine Stator Output||96 W @ 3000 RPM|
|Fuel Delivery||BS-25 Carburetor|
|Fuel Capacity||2.2 gal.|
|Oil System Capacity||0.6 qt.|
|Coolant System Capacity||N/A|
|Drive Clutch||Arctic 5.25 in. Diameter (RPM Sensing)|
|Driven Clutch||Arctic 6.75 in. Diameter (Roller Cam)|
|Drive System||Arctic 200 Drive System|
|Brakes||Hydraulic Brake/Disc on Driveshaft|
|Clutch Calibration||0-5,000 ft.|
|Track Drive Sprocket||5 Tooth, 2.59 Pitch, Exvolute|
|Front Suspension||Arctic Wishbone Suspension (AWS)|
|Ski Shocks||Hydraulic Twin Tube|
|Front Travel||4.5 in.|
|Rear Suspension||Slide-Rail, Adjustable Torsion Spring, Coil-Over Rear Shock|
|Front Track Shock||N/A|
|Rear Track Shock||Hydraulic Twin Tube|
|Rear Travel||8.5 in.|
|Overall Chassis Length||84 in.|
|Overall Chassis Width||35-37 in.|
|Overall Chassis Height||36 in.|
|Track Width||10 in.|
|Track Length||93 in.|
|Ski Stance||29.5-31.5 in. - Adjustable|
|Ski Type/Width||Youth - 5 in.|
|Runner Type||Single Runner|
|Type of Gauge||N/A|
|Color||Fire Red, Dynamic Charcoal/ Medium Green|
|Starter||Turnkey Electric Start|
|Additional Accessories||Handguards, Rear Rack, Rear Storage|
|Standard Accessories||Brake Disc, Hand Warmers, Tether Switch, Youth Front Bumper|
|Windshield||4 in. Low-Height|
*Price includes a one year warranty. Price does not include freight or set-up fees.
