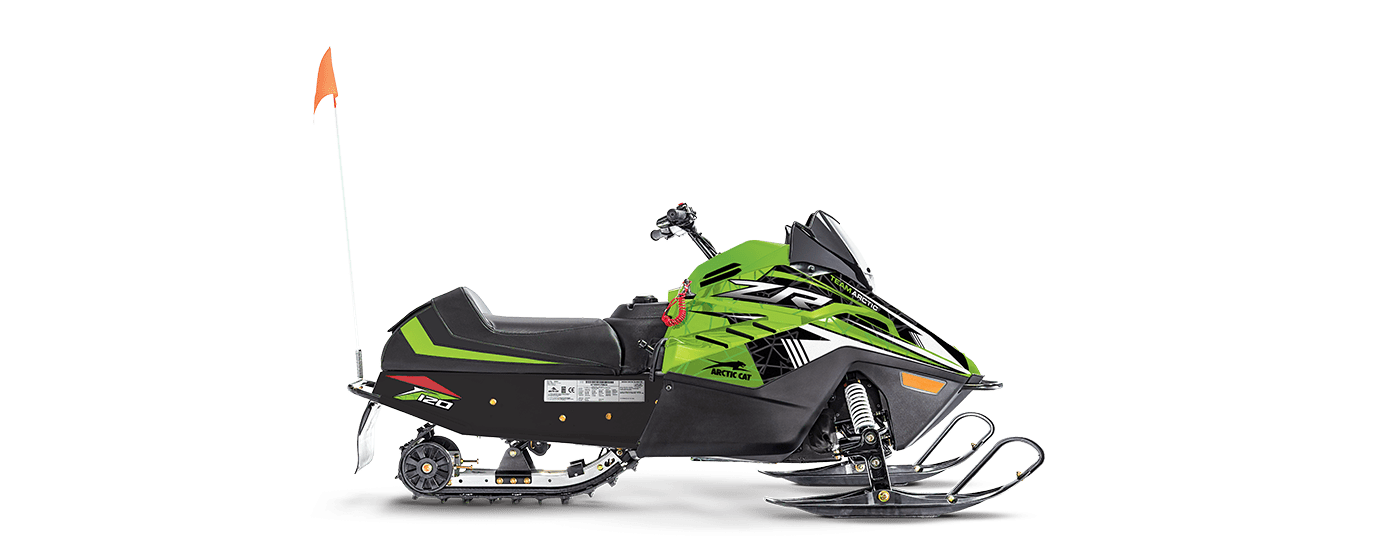

ZR 120

A Fun First Ride for Young Snowmobilers

ZR 120

ZR® 120’s compact frame packs enough power and excitement to make your young rider’s first experience unforgettable.

Highlights

123cc

4-Stroke Engine

Youth-Sized

Design

Handwarmers

with Comfort Grips

Safety Flag

and Tether Switch

In-Seat

Storage

ZR 120

Powerful 123cc engine for younger first-time riders.

ZR 120
ZR 120 Safety Flag and Tether Switch

Safety Flag and Tether Switch

A bright orange flag keeps young riders highly visible, while a tethered kill switch shuts the vehicle off when disconnected.

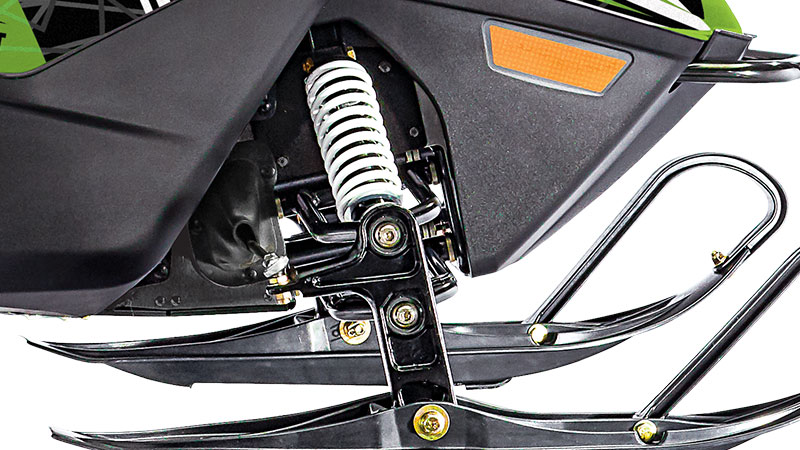

ZR 120 A Arm Suspension

A-Arm Front Suspension

Just like on our full-size snowmobiles, this reinforced front suspension design helps young riders tame the trail.

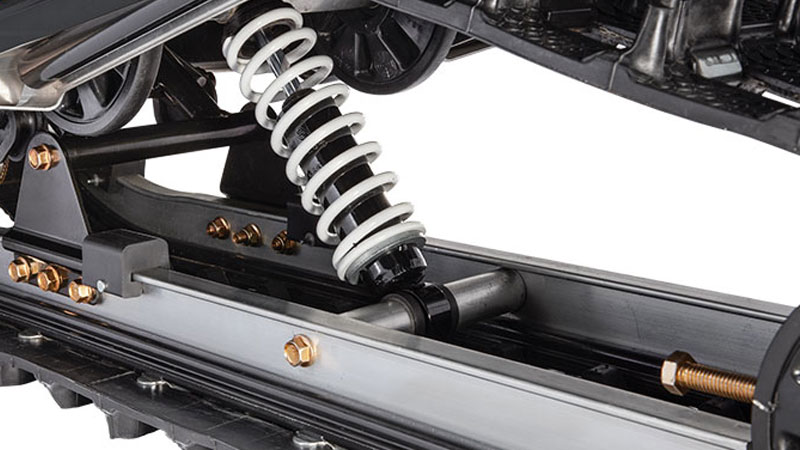

ZR 120 Slide-Rail Rear Suspension

Slide-Rail Rear Suspension

This responsive rear suspension handles any bump in the road to keep the ride stable, smooth and safe.

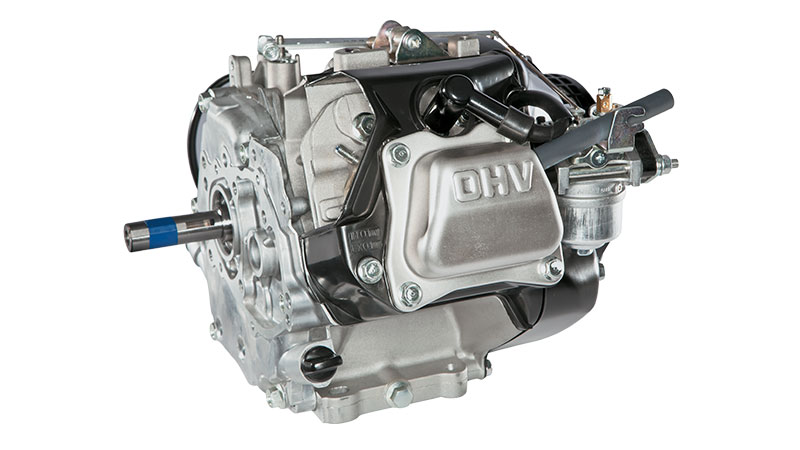

ZR 120 123cc 4-Stroke Engine

123cc 4-Stroke Engine

This fan-cooled 4-stroke engine starts easy and rides all day. And its governed to 8 mph to keep it safe but still packed full of all-day fun for your young rider.

ZR 120 Comfort Grips with Hand Warmers

Comfort Grips with Handwarmers

Ride all day, even when the wind chill dips down low.

ZR 120 In Seat Storage

In-Seat Storage

Pack it in. ZR 120 features in-seat storage in the rear so you can stay out until sunset.

ZR 120 Halogen Headlight

Halogen Headlight

With low and high beams, you can light up any ride at the flick of a switch.

ZR 120 Adjustable Ski Stance

29.5"-31.5" Adjustable Ski Stance

A 29.5-31.5-inch adjustable ski stance and deep-keel plastic skis lets you take your first corners confidently.

ZR 120 Cobra Track

Cobra Track

Cupped lugs give you better handling and control on soft terrain, and 1.0-inch paddles and traction teeth deliver all the grip you need.

60th Anniversary Decal

60th Anniversary Decal

Celebrate 60 years of Arctic Cat with this commemorative decal.

ZR 120

ZR 120

Vehicle Specs

Print Specs

Engine

ZR 120
Engine Type 120, 4-Stroke
Displacement 123cc
Cooling Air
Cylinders 1
Bore x Stroke 56 x 50 mm
Lubrication Oil Sump
Ignition CDI
Engine Stator Output 55 W @ 3600 RPM
Fuel Delivery B-18 Carburetor
Exhaust Muffler
Fuel Capacity 0.5 gal.
Oil System Capacity 0.6 qt.
Coolant System Capacity N/A
Minimum Octane 87

Powertrain

ZR 120
Drive Clutch Arctic Centrifugal
Driven Clutch N/A
Drive System N/A
Brakes Adjustable Band
Clutch Calibration 0-5,000 ft.
Gearing N/A
Chain Pitch N/A
Track Drive Sprocket 4 Tooth, 2.59 Pitch, Exvolute
Reverse N/A

Suspension

ZR 120
Front Suspension Arctic Wishbone Suspension (AWS)
Ski Shocks Hydraulic Twin Tube
Sway Bar N/A
Front Travel 4.5 in.
Rear Suspension Slide-Rail, Adjustable Torsion Spring
Front Track Shock N/A
Rear Track Shock N/A
Rear Travel 4.5 in.

Dimensions

ZR 120
Overall Chassis Length 73 in.
Overall Chassis Width 35-37 in.
Overall Chassis Height 34 in.
Track Type Cobra
Track Width 10 in.
Track Length 67 in.
Lug 0.75 in.
Pitch 2.59 in.
Ski Stance 29.5-31.5 in. - Adjustable
Ski Type/Width Youth - 5 in.
Runner Type Single Runner

Instrumentation

ZR 120
Type of Gauge N/A
Speedometer N/A
Tachometer N/A
Odometer N/A
Fuel N/A
Oil N/A
Coolant N/A
Clock N/A
Battery Voltage N/A
Altimeter N/A
Hours N/A

Features

ZR 120
Color Medium Green
Heat Exchanger N/A
Starter Manual
Handlebars Straight
Lighting Halogen 1-Bulb
Seating Youth 120
Storage Components In-Seat
Additional Accessories N/A
Standard Accessories Brake Disc, Hand Warmers, Safety Flag, Tether Switch, Youth Front Bumper
Windshield 4 in. Low-Height
