Alterra 90
The Next Generation of Riders Starts Here
Packed full of excitement, the Alterra 90 is the perfect introduction to the adventures of off roading for fearless first-timers. This compact ATV is designed for riders as young as 10-years old, and with parent-friendly controls, safety is just as important as fun.
Shopping Tools
Alterra 90
Vehicle Specs
Print SpecsEngine & Drivetrain
| Alterra 90 | |
|---|---|
|
Engine Type
|
Air-Cooled, Single Cylinder |
|
Displacement
|
90cc |
|
Drive Train
|
CVT |
|
Drive System
|
2WD Chain Drive |
|
Fuel System
|
Carburetor |
|
Gear Selection
|
F/N/R |
|
Rear Differential
|
Locked |
Steering & Suspension
| Alterra 90 | |
|---|---|
|
Steering
|
Standard |
|
Front Suspension
|
Single A-Arm with 2.8 in. (7.1 cm) Travel |
|
Rear Suspension
|
Swing Arm with 2.9 in. (7.3 cm) Travel |
|
Brake System
|
Dual Front Hydraulic Drum, Single Rear Hydraulic Disc |
|
Parking Brake
|
Lockable Hand Lever |
|
Front Tires
|
20 x 7 - 8 |
|
Rear Tires
|
19 x 8 - 8 |
|
Wheels
|
Steel |
Performance
| Alterra 90 | |
|---|---|
|
Total Capacity
|
175 lbs (79.5 kg) |
|

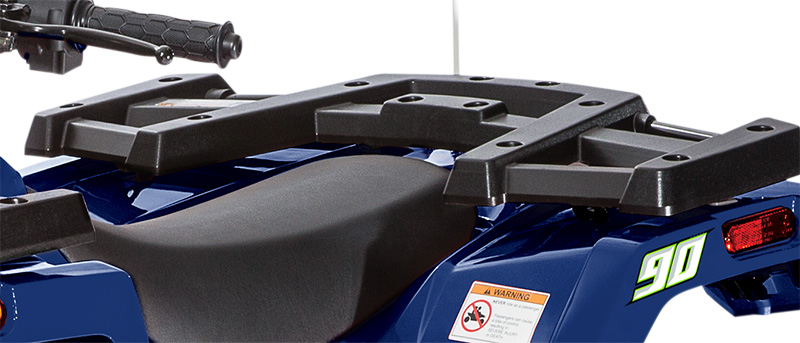

Front Rack
|
10 lbs (4.5 kg) |
|
Rear Rack
|
15 lbs (7 kg) |
Dimensions
| Alterra 90 | |
|---|---|
|
Overall Length
|
59 in. (150 cm) |
|
Overall Width
|
34.5 in. (87.5 cm) |
|
Overall Height
|
37.9 in. (96.2 cm) |
|
Overall Weight (Dry)
|
283 lbs (128.5 kg) |
|
Wheel Base
|
38 in. (96.5 cm) |
|
Ground Clearance
|
4.3 in. (10.9 cm) |
|
Fuel Capacity
|
1.4 gal (5.3 L) |
Features
| Alterra 90 | |
|---|---|
|
Standard Instrumentation
|
Neutral/Reverse Indicator |
|
Lighting
|
Dual Halogen Headlight / Taillights |
|
Start Method
|
Electric Start with Kickstart Backup |
Vehicle specifications are subject to change.
