Prowler Pro
Adventure At Your Fingertips
The Prowler Pro was built to perform to your standards with a class-leading quiet engine, optimized suspension and easy customization for your everyday needs.
Watch Video
Shopping Tools
Prowler Pro
Vehicle Specs
Print SpecsEngine & Drivetrain
| Prowler Pro EPS | Prowler Pro XT | Prowler Pro LTD | |
|---|---|---|---|
|
Engine Type
|
Liquid-Cooled 4-Stroke, 3 Cylinder | ||
|
Horsepower
|
50HP | ||
|
Displacement
|
812cc | ||
|
Drive Train
|
CVT | ||
|
Drive System
|
2WD / 4WD Electric Actuation, with Selectable Rear Diff Lock | ||
|
Fuel System
|
EFI (Electronic Fuel Injection) | ||
|
Gear Selection
|
H/L/N/R/P | ||
|
Front Differential
|
2WD / 4WD Open | ||
|
Rear Differential
|
Selectable Locking | ||
Steering & Suspension
| Prowler Pro EPS | Prowler Pro XT | Prowler Pro LTD | |
|---|---|---|---|
|
Steering
|
Electronic Power Steering | ||
|
Front Suspension
|
Double A-Arm with 10-in. (25.4 cm) Travel | ||
|
Rear Suspension
|
Double A-Arm with 9.5-in. (24 cm) Travel | ||
|
Shock Absorbers
|
Gas Charged Twin Tube | ||
|
Brake System
|
Park in Transmission | ||
|
Front Tires
|
26 x 9 x 14 | ||
|
Rear Tires
|
26 x 11 x 14 | ||
|

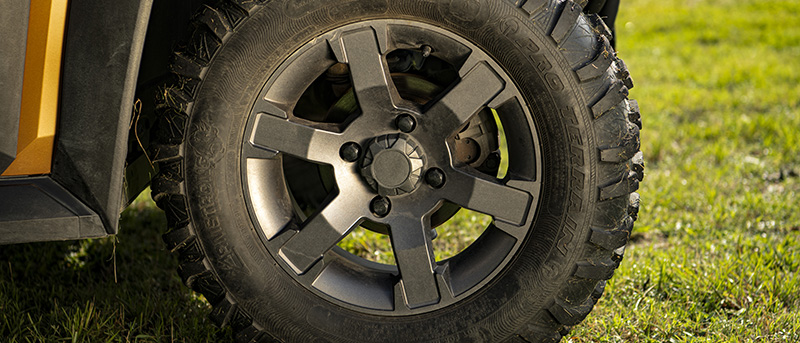

Wheels
|
Aluminum | ||
Performance
| Prowler Pro EPS | Prowler Pro XT | Prowler Pro LTD | |
|---|---|---|---|
|
Total Capacity
|
1,500 lbs (680.4 kg) | ||
|
Bed Capacity
|
1,000 lbs (453.6 kg) | ||
|
Towing Capacity
|
2,000 lbs (907.2 kg) | ||
Dimensions
| Prowler Pro EPS | Prowler Pro XT | Prowler Pro LTD | |
|---|---|---|---|
|
Overall Length
|
126 in. (320 cm) | 127.8 in. (324.6) cm | 127.8 in. (324.6) cm |
|
Overall Width
|
63 in. (160 cm) | ||
|
Overall Height
|
77 in (195.6 cm) | 78 in. (198 cm) | 78 in. (198 cm) |
|
Overall Weight (Dry)
|
1,605 lbs (728 kg) | 1,692 lbs (767.5 kg) | 1,723 lbs (781.5 kg) |
|
Wheelbase
|
85 in. (215.9 cm) | ||
|
Seat Height
|
32 in. (81.3 cm) | ||
|
Fuel Capacity
|
10 gal (37.9 L) | ||
|
Ground Clearance
|
12.5 in. (31.75 cm) | ||
|
Bed Dimensions (L x W x H)
|
40.5 x 54 x 11.5 in. (102.9 x 137.2 x 29.2 cm) | ||
|
Hitch
|
Standard 2-in. Receiver | ||
Color Options
| Prowler Pro EPS | Prowler Pro XT | Prowler Pro LTD | |
|---|---|---|---|
|
Standard Colors
|
Medium Green | Phantom Grey | Fossil |
Features
| Prowler Pro EPS | Prowler Pro XT | Prowler Pro LTD | |
|---|---|---|---|
|
Skid Plate
|
Full Length | ||
|
Standard Instrumentation
|
Multifunctional Digital Guage | ||
|
Lighting
|
Dual High/Low Beam Halogen Headlights and LED Taillights | Dual High/Low Beam Halogen Headlights with LED Accents and LED Taillights | Dual High/Low Beam Halogen Headlights with LED Accents and LED Taillights |
|
Start Method
|
Electric Start | ||
|
Seating
|
Bench Seat, 3-Passenger with Removable Passenger Seats, 3 Point Seat Belts | ||
|
Storage
|
Cargo Dump Bed, Glove Box, Behind-Seat Storage | ||
|
Additional Features
|
Premium Bumper, Standard Doors | Premium Bumper, Standard Doors, Color Matched Springs | Premium Bumper, Standard Doors, Color Matched Springs and ROPS, Color Matched Seat |
|
Standard Accessories
|
N/A | 4,500-lb Warn Winch, Roof | 4,500-lb Warn Winch, Roof, Overhead Console |
Vehicle specifications are subject to change.
