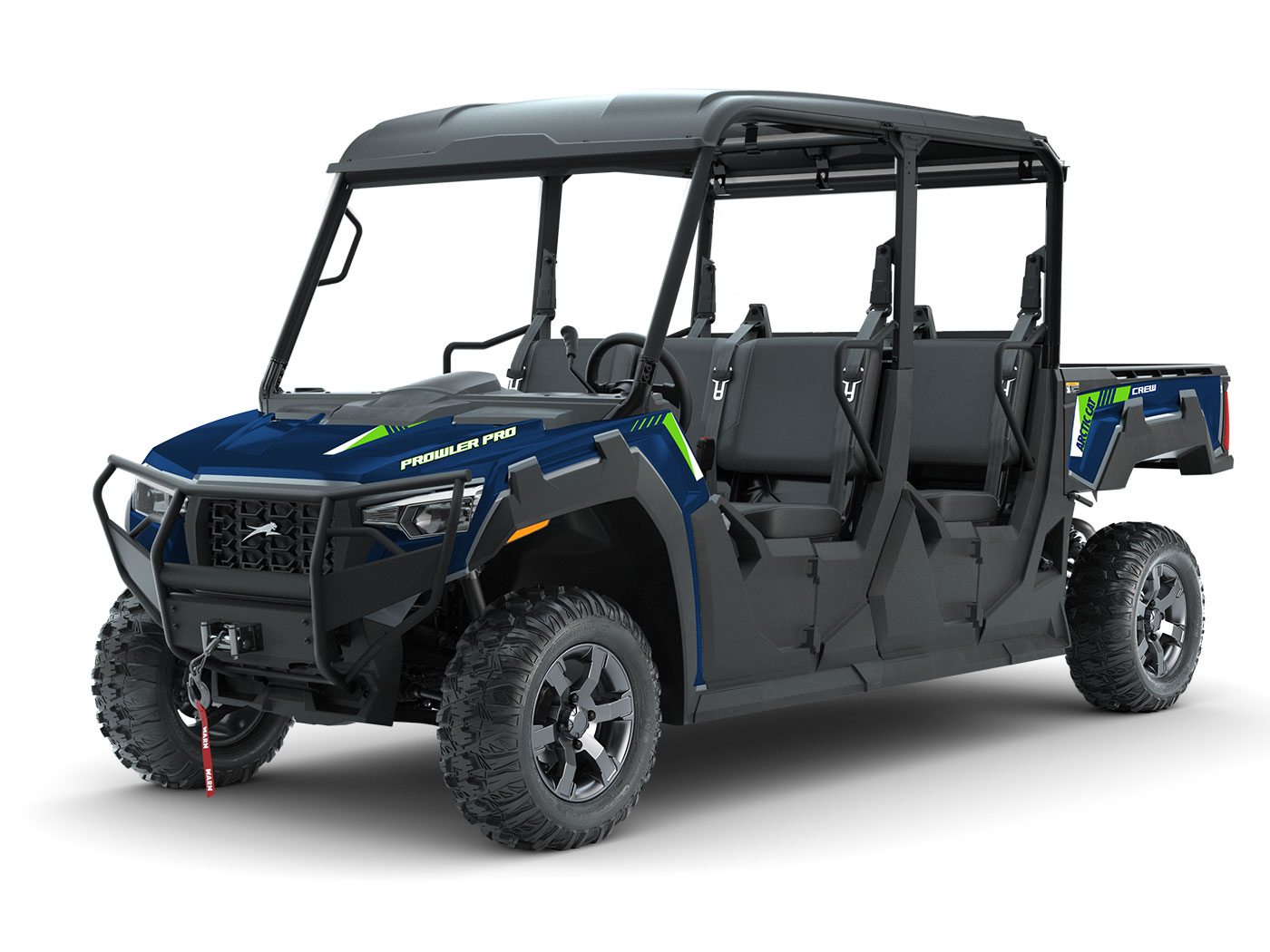

Prowler Pro Crew
The Quiet Workhorse
Prowler Pro Crew is ready to dig in - whether you're on the clock or on the trail.
Highlights
Noise-Reducing
Chassis Design
6-Passenger
Seating
Next-Level
Storage
Truck-Like
Driver Experience
Toolless
Access Panels
Noise-Reducing Design
Prowler Pro Crew features a whisper-quiet engine and vehicle design that we perfected and built right here in the U.S.
SEE MORE
Next-Level Storage
Whatever you need to take with you, Prowler Pro Crew has a spot for it with loads of built-in storage space.
SEE MORE

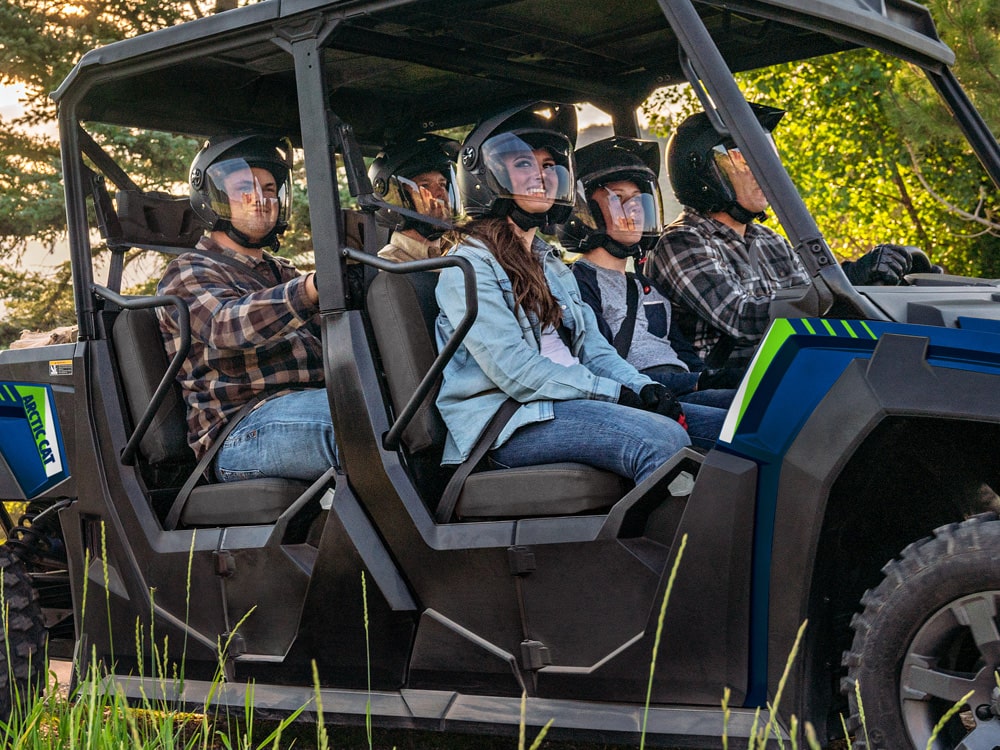

6-Passenger Seating
One, or two rows of bench seating can be removed for additional storage space.

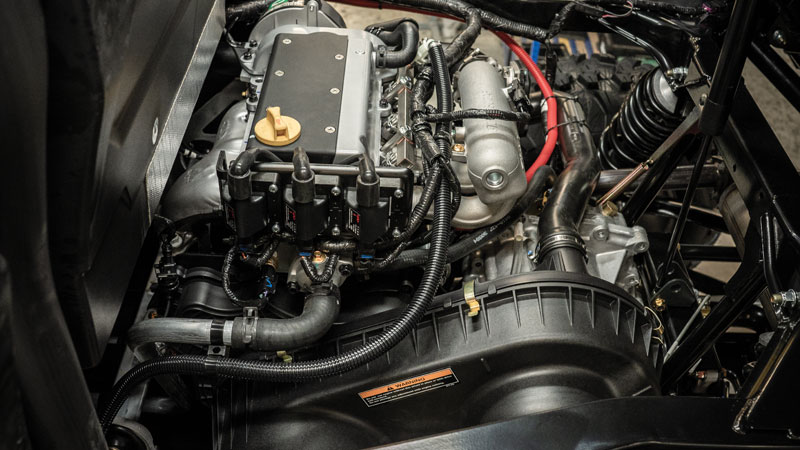

812cc 3-Cylinder EFI Engine
48 lb-ft of torque built to break free without bringing the noise.

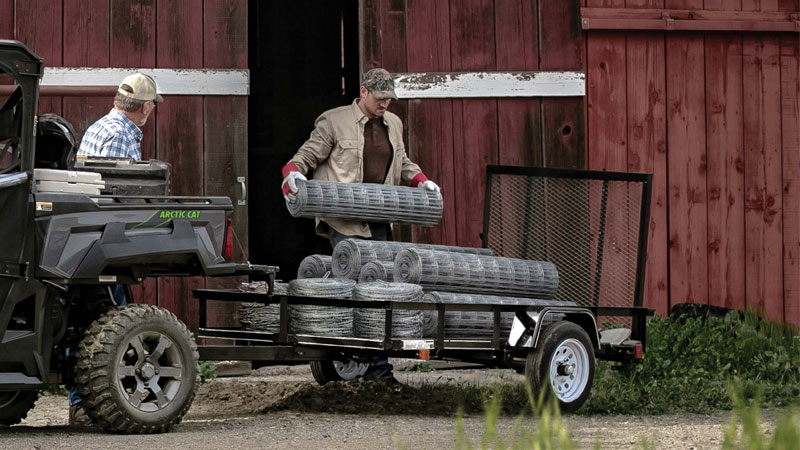

2000-lb Towing Capacity
Pull a ton behind you and tackle the biggest jobs on your to-do list.

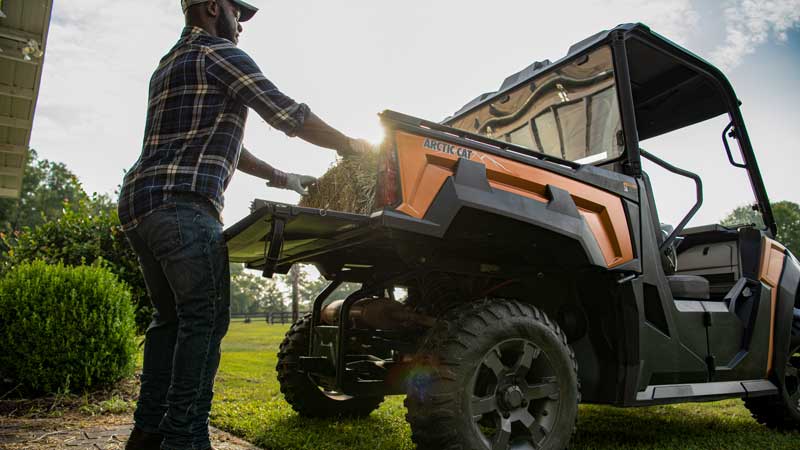

1000-lb Capacity Cargo Box with Tilt
Rocks, mulch, you name it — shovel 1,000 pounds in the back and drop it off with ease.

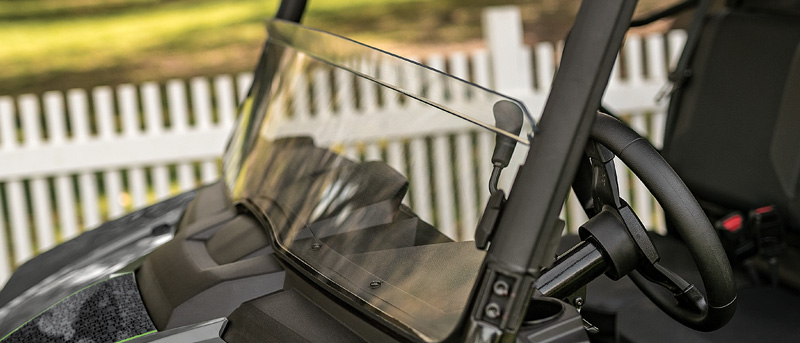

More than 50 Custom-Built Accessories
Prowler Pro Crew is made to make your own with countless ways to customize.

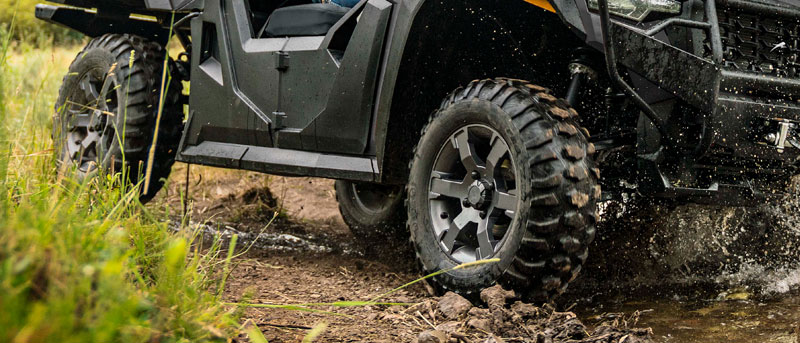

10-inch Front and 9.5-inch Rear Suspension Travel
Rock-solid suspension helps you handle off-road terrain with ease.

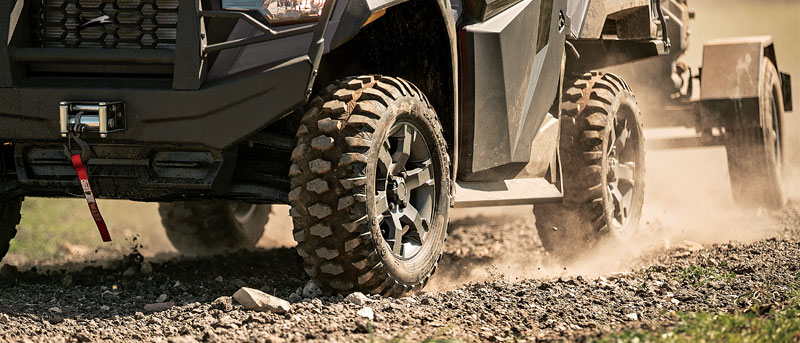

Selectable-Locking Rear Differential
Adjust the vehicle’s traction at any time from the driver’s seat.

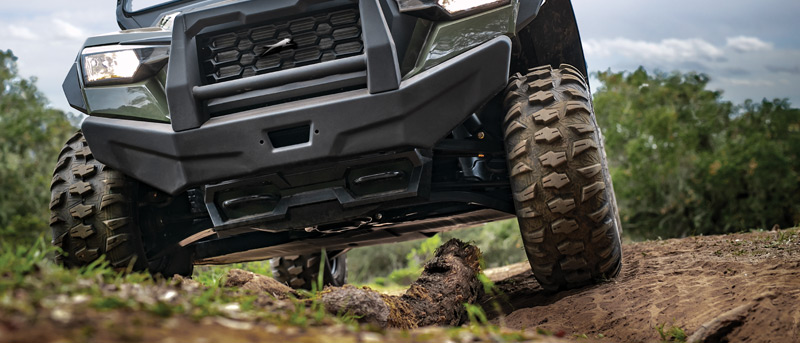

10-inch Ground Clearance
Plenty of ground clearance to help you avoid obstacles before they ever become an issue.
Aluminum Wheels and 27-inch Tires
Found on the Prowler Pro Crew Ranch, this lightweight and durable combo creates a sharp look and superior performance.

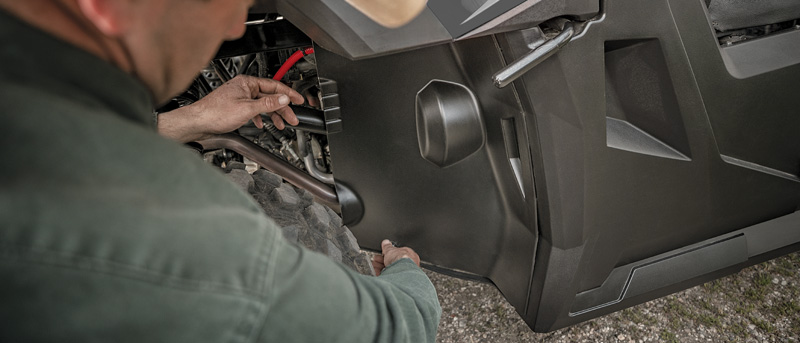

Toolless Access Panels
Panels can quickly be removed by hand, making vehicle maintenance and upgrades simple.
18-month Warranty
18 months of rock-solid coverage so you can have peace of mind at work and on the trail.
Accessory Kits
Prowler Pro Crew
Vehicle Specs
Print SpecsEngine & Drivetrain
| Prowler Pro Crew | Prowler Pro Crew Ranch Edition | |
|---|---|---|
| Engine Type | Liquid-Cooled 4-Stroke, 3 Cylinder Dual Overhead Cam, Gas Engine | |
| Horsepower | 50HP | |
| Displacement | 812cc | |
| Drive Train | CVT | |
| Drive System | Selectable 2WD/4WD | |
| Fuel System | Electronic Fuel Injection (EFI) | |
| Gear Selection | Column Shifter (P, R, N, H, L) | |
| Front Differential | Limited Slip Front Differential | |
| Rear Differential | Selectable Electronic Locking | |
Steering & Suspension
| Prowler Pro Crew | Prowler Pro Crew Ranch Edition | |
|---|---|---|
| Steering | Electronic Power Steering, Tilt Steering Wheel | |
| Front Suspension | Double A-Arm with 10 in. (25.4 cm) Travel | |
| Rear Suspension | Double A-Arm with 9.5 in. (24.1 cm) Travel | |
| Shock Absorbers | Gas Charged Twin Tube | |
| Brake System | Dual Piston Front Calipers and Single Piston Rear Calipers | |
| Front Tires | 26 x 9-14, Kenda K590 | 27 x 9-14, Kenda K590 |
| Rear Tires | 26 x 11-14, Kenda K590 | 27 x 11-14, Kenda K590 |
| Wheels | Aluminum | |
Performance
| Prowler Pro Crew | Prowler Pro Crew Ranch Edition | |
|---|---|---|
| Payload Capacity | 1,500 lbs (680.4 kg) | |
| Cargo Box Capacity | 1,000 lbs (453.6 kg) | |
| Towing Capacity | 2,000 lbs (907.2 kg) | |
Dimensions
| Prowler Pro Crew | Prowler Pro Crew Ranch Edition | |
|---|---|---|
| Overall Length | 160.5 in. (407.7 cm) | |
| Overall Width | 63 in. (160 cm) | |
| Overall Height | 74 in. (188 cm) | |
| Overall Weight | 1,856 lbs (841.9 kg) | 1,993 lbs (904 kg) |
| Wheelbase | 118.5 in. (301 cm) | |
| Seat Height | 31.25 in. (79.4 cm) | |
| Fuel Capacity | 10 gal (37.9 L) | |
| Ground Clearance | 10 in. (27.3 cm) | |
| Bed Dimensions (L x W x H) | 40.5 x 54 x 11.5 in. (102.9 x 137.2 x 29.2 cm) | |
| Hitch | Standard/2 in. (5 cm) Receiver | |
Color Options
| Prowler Pro Crew | Prowler Pro Crew Ranch Edition | |
|---|---|---|
| Standard Colors | Earth Blue | Atomic Copper |
Features
| Prowler Pro Crew | Prowler Pro Crew Ranch Edition | |
|---|---|---|
| Instrumentation | Digital Gauge, Digital Speedometer, Odometer, Techometer, Tripmeter, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet, On-Board Diagnostics | |
| Lighting | Dual High/Low Beam Halogen Headlights and LED Taillights | |
| Seating | Bench Seat, 6-Passenger with Removable Passenger Seats | |
| Storage Components | Cargo Dump Bed, Glove Box, Behind-Seat Storage, Cup Holders (5) | |
| Additional Features | 3-Point Seat Belts, Seat Belt Rev Limiter, Half Doors, Roll-Formed ROPS, Headlights, Brake Lights, Passenger Grab Handles, Customizable Speed Controller | |
| Standard Accessories | 4,500-lb Warn Winch, Roof, Premium Front Bumper, Standard Doors | 4,500-lb Warn Winch, Roof, Premium Front Bumper, Premium Rear Bumper, Standard Doors |
