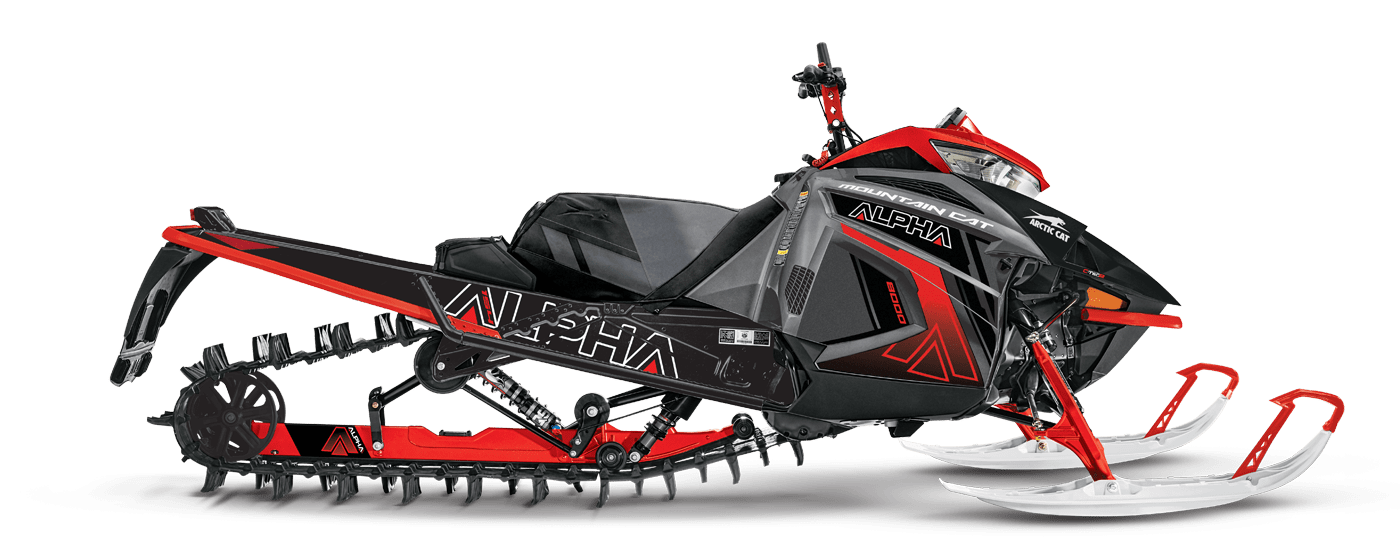

M Mountain Cat Alpha One

A Powerful Mountain Sled with ALPHA ONE Single-Beam Rear Suspension

The ultimate Mountain Cat features bold styling and bold moves, with ALPHA ONE™ Single-Beam Rear Suspension, fully-adjustable FOX® FLOAT 3 QS3 shocks, and now ATAC adjustable-on-the-fly suspension.

Highlights

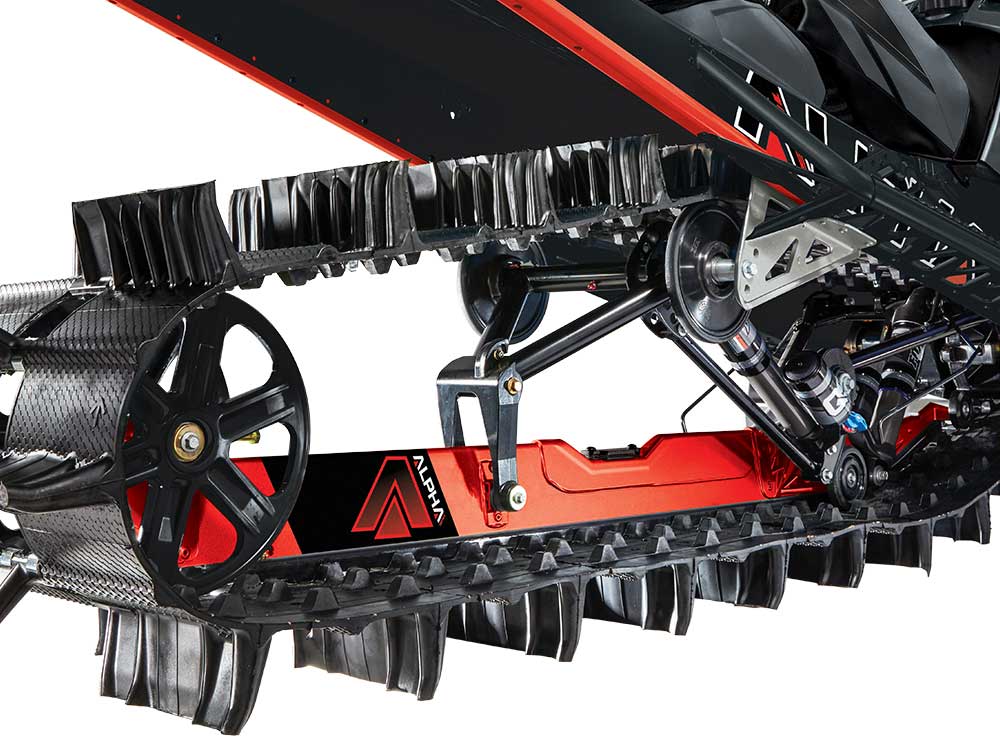

ALPHA ONE

Single-Beam Rear Suspension

FOX FLOAT 3 QS3

Ski Shocks and Front Arm Shock

Ascender

Platform

FOX FLOAT 3 QSL

Rear Arm Shock

ATAC

Adjustable on-the-Fly Suspension

M 8000 Mountain Cat Alpha One with ATAC

All the power of the 8000-Series C-TEC2™ engine and performance of ALPHA ONE™ Single-Beam Rear Suspension now with the versatility of ATAC adjustable on-the-fly suspension.

M 8000 Mountain Cat Alpha One with ATAC

Pro Kit-REd

Everything you need to tear up the backcountry including:

  • Pro Mountain Bumper (Red)
  • Mountain Pack
  • Handlebar Bag

M 8000 Mountain Cat Alpha One

A next-gen 8000-Series C-TEC2™ engine for clean, 2-stroke performance plus ALPHA ONE™ Single-Beam Rear Suspension

M 8000 Mountain Cat Alpha One

Pro Kit-REd

Everything you need to tear up the backcountry including:

  • Pro Mountain Bumper (Red)
  • Mountain Pack
  • Handlebar Bag
8000-Series C-TEC2 Engine

the next-generation 8000-Series-C-Tec2 engine delivers a new level of clean Arctic Cat 2-stroke engine performance and technology. This new 794cc C-TEC2 twin features:

  • New cylinders, pistons, combustion chamber, flywheel, and fuel rail.
  • New fuel calibration strategy and Arctic Power Valve system with 3-stage control of the auxiliary exhaust ports via side valves
  • ECM-controlled electronic oil pump
  • Batteryless EFI
  • Exhaust Pop Temperature Sensor (EPTS)
  • Knock Sensor
  • Engine Reverse Technology

This advanced new technology designed by Arctic Cat and built in St. Cloud, Minn delivers:

  • Ultra-clean, more responsive performance
  • Enhanced power in the 165-hp class of engines
  • Precision oil injection
  • Exceedingly robust and lightweight design
AMS Front Suspension

Arctic Mountain Suspension is tailor-made to maneuver in deep snow. The lightweight, forged-aluminum spindles sit at a 27 degree spindle caster angle, providing optimal ski camber for off-trail cornering and more predictable counter-steering when side-hilling. They’re built to reduce drag, while the dual-phase alloy-steel A-arms are lightweight and durable.

Power Claw Track

Power Claw Track is built lightweight, with a single-ply design and a 3.0-inch pitch — all so you can master deep snow runs. Its stagger-set, curved-forward paddle towers won't fold over or take a set, and Attack 20 paddles let you float over the deep stuff.

M Mountain Cat Alpha One

M Mountain Cat Alpha One

Vehicle Specs

Print Specs

Engine

M 8000 Mountain Cat Alpha One
Engine Type 8000 C-TEC2, 2-Stroke
Displacement 794cc
Cooling Liquid
Cylinders 2
Bore x Stroke 85 x 70 mm
Lubrication Electronic Injection
Ignition Digitally Controlled CDI
Engine Stator Output 270 W @ 3000 RPM
Fuel Delivery Next Generation C-TEC2
Exhaust APV with Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler
Fuel Capacity 10.4 or 11.7 gal. (varies by model)
Oil System Capacity 3.25 qt.
Coolant System Capacity 5 qt.
Minimum Octane 91

Powertrain

M 8000 Mountain Cat Alpha One
Drive Clutch TEAM Rapid Response II
Driven Clutch TEAM Rapid Reaction BOSS
Drive System Arctic Mountain Drive System
Brakes Stealth Hydraulic Master Cylinder with Lightweight Caliper
Clutch Calibration 0-5,000 ft. or 6,000-8,000 ft. (varied by model)
Gearing 19/50
Chain Pitch 96
Track Drive Sprocket 7 Tooth, 3.5 Pitch, Exvolute or 8 Tooth, 3.0 Pitch, Exvolute (varies by model)
Reverse Push-Button Engine

Suspension

M 8000 Mountain Cat Alpha One
Front Suspension Arctic Mountain Suspension (AMS)
Ski Shocks Fox FLOAT 3 QS3 or FOX FLOAT 3 iQS (varies by model)
Sway Bar N/A
Front Travel 7 in.
Rear Suspension ALPHA-ONE Rear Suspension
Front Track Shock FOX FLOAT 3 QS3 or Arctic Cat IFP 1.5 (varies by model)
Rear Track Shock FOX FLOAT 3 QSL or FOX FLOAT 3 iQSL (varies by model)
Rear Travel 14 or 15 in. (varies by model)

Dimensions

M 8000 Mountain Cat Alpha One
Overall Chassis Length 132 or 137 in. (varies by model)
Overall Chassis Width 42.5-44.5 in.
Overall Chassis Height 50 in.
Estimated Dry Weight 446, 451, 466 or 471 or 480 lbs. (varies by model)
Track Type Power Claw
Track Width 15 in.
Track Length 154 or 165 in. (varies by model)
Lug 3 in.
Pitch 3.50 in.
Ski Stance 35.5-37.5 in. - Adjustable
Ski Type/Width G2 ProClimb - 7 in.
Runner Type Single Runner with Carbide

Instrumentation

M 8000 Mountain Cat Alpha One
Type of Gauge Deluxe Digital
Speedometer Digital
Tachometer Digital
Odometer Digital
Fuel Digital
Oil Indicator Light
Coolant Digital/Indicator Light
Clock Digital (only available on select models)
Battery Voltage Digital (only available on select models)
Altimeter Digital (only available on select models)
Hours Digital

Features

M 8000 Mountain Cat Alpha One
Color Fire Red/Dynamic Charcoal
Heat Exchanger Front/Short Tunnel
Starter Manual or Electric Push-Button (varies by model)
Handlebars Hooked with Grab Handle, 4.5 in. Riser

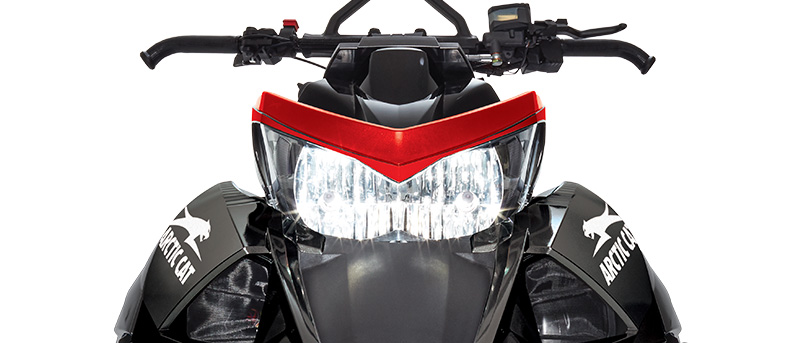

Lighting LED with Accent Light
Seating Lightweight Mountain or Mountain (varies by model)
Storage Components M Tunnel Bag
Additional Accessories Handguards, Heated Drivers Seat (only available on select models), Mirrors, Rear Racks, Side Panel Wind Deflectors, Sno Pro Hooked Brake Lever, Tow Hitch, Tunnel Flare, Visor Plug-Ins
Standard Accessories 12V Outlet, Goggle Holder, Hand and Thumb Warmers, Ice Scratchers, Lightweight Mountain Brake Disc, Sport Front Bumper, Tether Switch, Vertical Steering
Windshield 1 in. Mountain Height
