ZR Limited

Trail Blaze with Advanced Features like iACT Adjustable On-the-Fly Suspension

Some riders want to tame the trail. But for those who want to dominate it, ZR® Limited adds an easily adjustable suspension calibration to our legendary ZR.

Highlights

iACT

Adjustable On-the-Fly Suspension

FOX 1.5 ZERO QS3

Shocks

ARS II

Front Suspension

137" SLIDE-ACTION

Rear Suspension

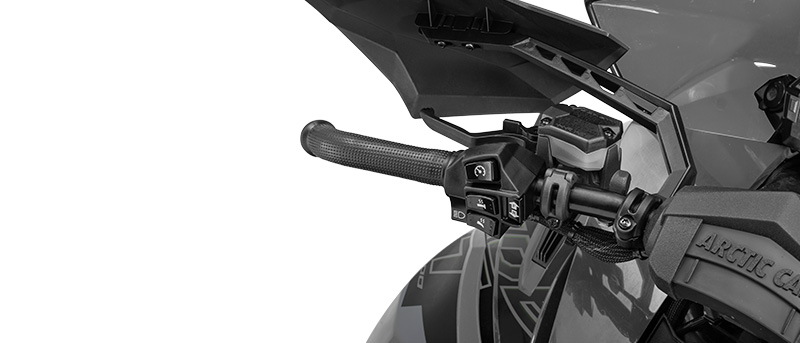

Push-Button

Electric Start

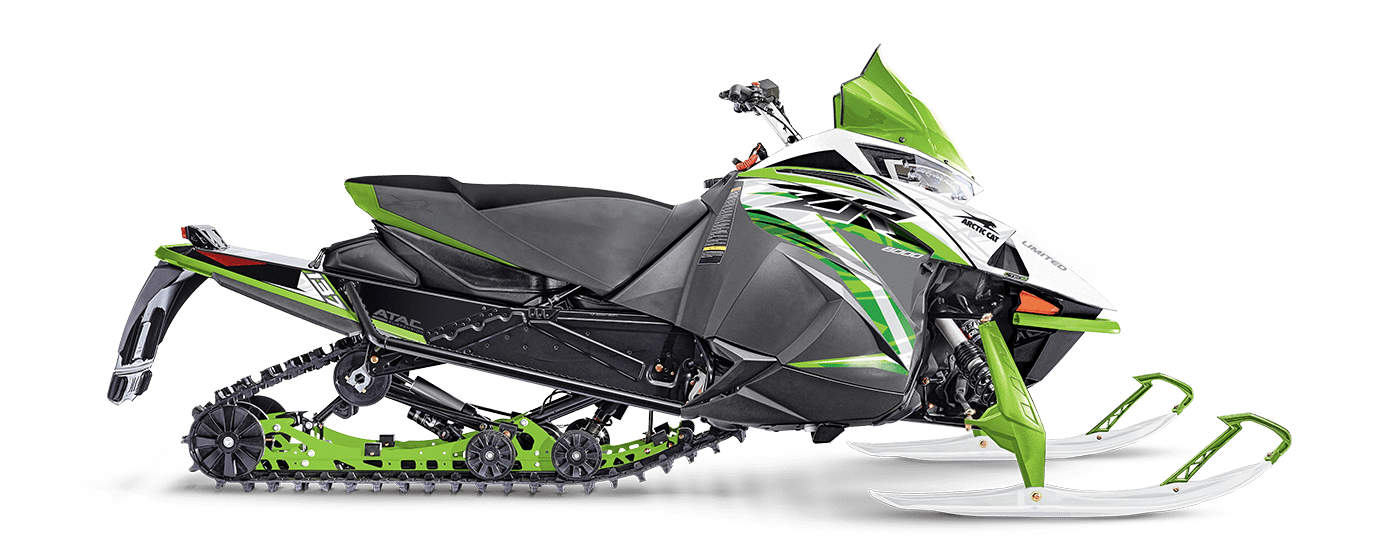

ZR 8000 Limited

A next-gen 8000-Series C-TEC2™ engine powers a trail ride with iACT™ Adjustable On-the-Fly Suspension.

ZR 8000 Limited

ZR 6000 Limited

The class-leading power of our 6000-Series C-TEC2™ engine with your choice of iACT™ Adjustable On-the-Fly Suspension or FOX® QS3 shocks.

ZR 6000 Limited
Fox Zero iQS Shocks

No matter your riding style — or what the day brings —  FOX ZERO iQS shocks will be ready.

Featuring three compression settings (Soft, Medium and Firm) that can be easily adjusted with a dial mounted on the remote reservoir, FOX ZERO iQS shocks are built for changing terrain. Their remote reservoir delivers fade-free runs, while coil-over springs even out the bumpiest rides. Available in 1.5- or 2.0-inch diameters.

Engine Lineup

Choose from two powerful, capable engine families for your ZR Limited. The new 8000-Series C-TEC2 delivers the next level of ultra-clean, ultra-responsive Arctic Cat 2-stroke engine performance with enhanced 165-hp class power and precision oil. Designed by Arctic Cat and built in St. Cloud, Minn, this new 794cc C-TEC2 twin also features new cylinders, pistons, combustion chamber, flywheel, and fuel rail, plus a new fuel calibration strategy and Arctic Power Valve system with 3-stage control of the auxiliary exhaust ports via side valves.

Or opt for the 6000-Series 599cc C-TEC2 Engine with Dual-Stage Injection (DSI)  the first clean technology Arctic Cat 2-stroke engine and the leader in 125-hp class performance.

Both engines feature:

  • ECM-controlled electronic oil pump
  • Batteryless EFI
  • Exhaust Pop Temperature Sensor (EPTS)
  • Knock Sensor
  • Engine Reverse Technology
  • An exceedingly robust, lightweight design
ARS II Front Suspension

The next level of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence on- or off-trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.

SLIDE-ACTION Rear Suspension

Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front arm won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, plus three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.

Vehicle Specs

ZR 6000 LTD ZR 8000 LTD
Engine Type 6000 C-TEC2, 2-Stroke 8000 C-TEC2, 2-Stroke
Displacement 599cc 794cc
Cooling Liquid
Cylinders 2
Bore x Stroke 73.8 x 70 mm 85 x 70 mm
Lubrication Electronic Injection
Ignition Digitally Controlled CDI
Engine Starter Output 270 W @ 3000 RPM
Fuel Delivery Dual Stage Injection
Exhaust APV with Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler
Fuel Capacity 11.7 gal.
Oil System Capacity 3.25 qt.
Coolant System Capacity 6 qt.
Minimum Octane 91
ZR 6000 LTD ZR 8000 LTD
Drive Clutch TEAM Rapid Response II
Driven Clutch TEAM Rapid Reaction BOSS
Drive System Arctic Drive System
Brakes Stealth Hydraulic Master Cylinder
Clutch Calibration 0-5,000 ft.
Gearing 22/48 21/41
Chain Pitch 90 86
Track Drive Sprocket 9 Tooth, 2.86 Pitch, Involute
Reverse Push-Button Engine
ZR 6000 LTD ZR 8000 LTD
Front Suspension Arctic Race Suspension (ARS) II or ARS II with iACT (varies by model)
Ski Shocks FOX 1.5 ZERO QS3 or FOX 1.5 ZERO iQS (varies by model)
Sway Bar Standard
Front Travel 10 in.
Rear Suspension SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm and Adjustable Torsion Springs. Interactive Arctic Cat Technology Suspension available on select models.
Front Track Shock Arctic Cat IFP 1.5
Rear Track Shock FOX 2.0 ZERO QS3 or FOX 2.0 ZERO iQS (varies by model)
Rear Travel 13.5 in.
ZR 6000 LTD ZR 8000 LTD
Overall Chassis Length 125 in.
Overall Chassis Width 48-49 in.
Overall Chassis Height 48 in.
Estimated Dry Weight 512 lbs. 527 lbs.
Track Type Ripsaw II
Track Width 15 in.
Track Length 137 in.
Lug 1.25 in.
Pitch 2.86 in.

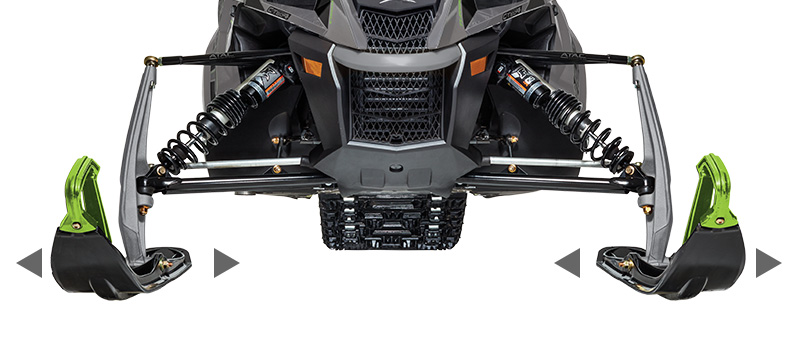

Ski Stance 42-43 in. - Adjustable
Ski Type/Width Trail - 6 in.
Runner Type Dual Deep Split Runner with Carbide
ZR 6000 LTD ZR 8000 LTD
Type of Gauge Deluxe Digital
Speedometer Digital
Tachometer Digital
Odometer Digital
Fuel Digital
Oil Indicator Light
Coolant Digital/Indicator Light
Clock Digital
Battery Voltage Digital
Altimeter Digital
Hours Digital
ZR 6000 LTD ZR 8000 LTD
Color Black/Medium Green
Heat Exchanger Front/Long Tunnel
Starter Electric Push Button
Handlebars Hooked, 5.5 in. Riser

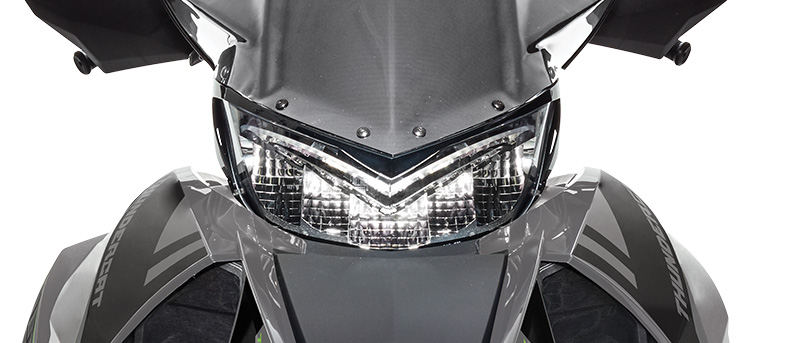

Lighting LED with Accent Light
Seating High Performance
Storage Components Tunnel Bag
Additional Accessories Heated Drivers Seat, Handguards, Ice Scratchers, Mirrors, Passenger Seat, Rear Rack, Side Panel Wind Deflectors, Sno Pro Hooked Brake Lever, Tow Hitch, Visor Plug-Ins Handguards, Heated Drivers Seat, Ice Scratchers, Mirrors, Passenger Seat, Rear Rack, Side Panel Wind Deflectors, Sno Pro Hooked Brake Lever, Tow Hitch, Visor Plug-Ins

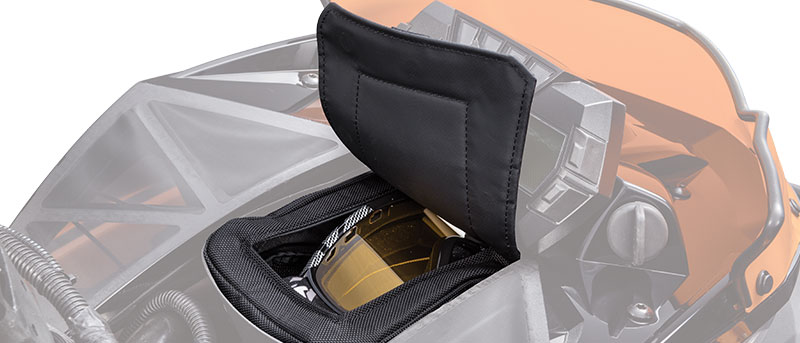

Standard Accessories 12V Outlet, Goggle Holder, Hand and Thumb Warmers, Sport Front Bumper, Standard Performance Brake Disc, Standard Steering, Tether Switch, Tunnel Flare 12V Outlet, Goggle Holder, Hand and Thumb Warmers, Sport Front Bumper, Standard Brake Disc, Standard Steering, Tether Switch, Tunnel Flare

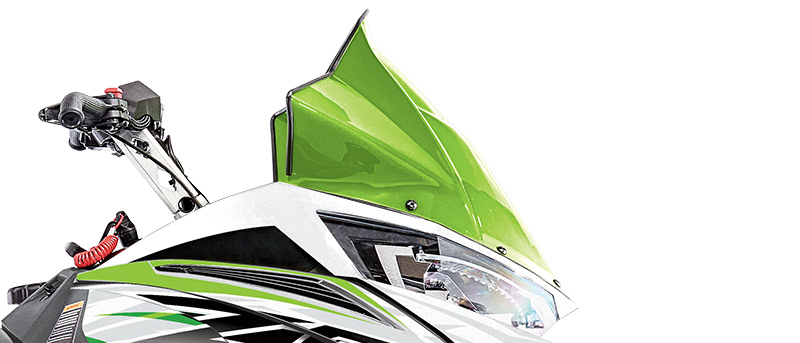

Windshield 11 in. Mid-Height
