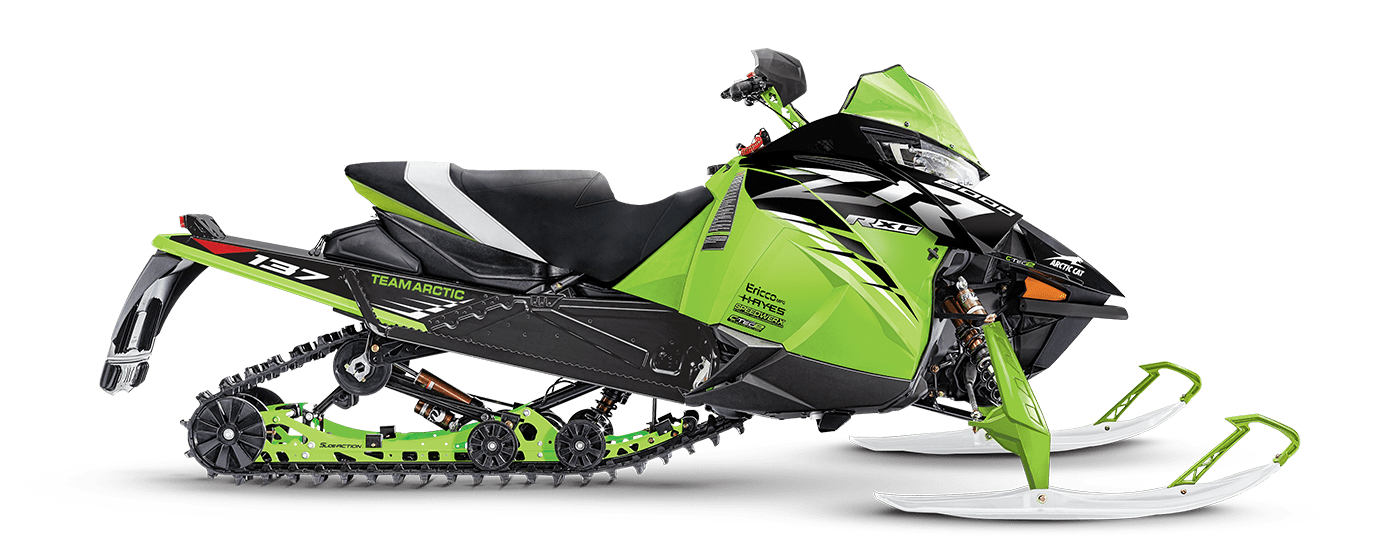

ZR R XC

ZR® R XC is a champion cross-country racing sled with a powerful engine, a race-developed seat and a low center of gravity that make it the most potent cross-country race snowmobile out there.

* Snowmageddon Price *

$10,995 Starting USD*

Was $13,595

*Price does not include freight or set-up fees.

Seat and Body

Kashima-Coated Rear Shock

Front Suspension

Kashima-Coated Front and Ski Shocks

Snowmageddon

Pre-Order your 2021 Arctic Cat by April 18 to get our best deal ever.

See Details

ZR 6000 R XC

A powerful cross-country racer with a 599cc 2-stroke engine and Kashima-Coated FOX® 1.5 ZERO RC shocks.

Trail Blazer Kit

Everything you need to hit the trails including:

Pro Mountain Bumper (Medium Green)
Trail Pack
Handlebar Bag
Mid-Touring Windshield (15")

137" SLIDE-ACTION Rear Suspension^™

Get the most out of a coupled suspension, with a unique design that keeps the front arm engaged while the rear arm compresses.

Learn More

SLIDE-ACTION Rear Suspension

Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front arm won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, plus three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.

FOX^® ZERO Kashima-Coated Shocks

These FOX ZERO shocks are Kashima-coated for seamless, smooth action and easily-adjustable with soft, medium and firm settings. Features 2.0-inch diameter rear shocks and 1.5-inch diameter front and ski shocks.

Learn More

FOX ZERO RC Kashima-Coated Shocks

No matter your riding style — or what the day brings — FOX ZERO RC shocks will be ready.

Featuring three compression settings (soft, medium and firm) that can be easily adjusted with a dial mounted on the remote reservoir, FOX ZERO RC shocks are built for changing terrain. Their remote reservoir delivers fade-free runs, while coil-over springs even out the bumpiest rides.

These 2.0-inch diameter rear shocks feature a Kashima coating for an even smoother ride.

6000-Series C-TEC2^™ Engine

ZR XC's race-inspired performance is powered by an 6000-Series 2-stroke engine that is built to thrill.

Learn More

6000-Series C-TEC2 Engine

The first clean technology Arctic Cat 2-stroke engine, the 6000-Series 599cc C-TEC2 with Dual-Stage Injection (DSI) leads the 125-hp class in performance. It features batteryless EFI; electric oil pump; APV electronic exhaust valves; Exhaust Pipe Temperature Sensor (EPTS); knock sensor; and engine reverse technology. It’s exceedingly robust and lightweight.

ARS^™ II Front Suspension

Designed to deliver the increased cornering bite and ground clearance you need for confidence-inspiring handling.

Learn More

ARS II Front Suspension

The next level of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence on- or off-trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.

LED Headlight

When the high beam is activated, the low beam also stays on to deliver an LED light pattern with great range and width.

Reinforced Running Boards

The most potent cross-country racer deserves competition-calibrated, reinforced running boards. And ZR XC's got 'em.

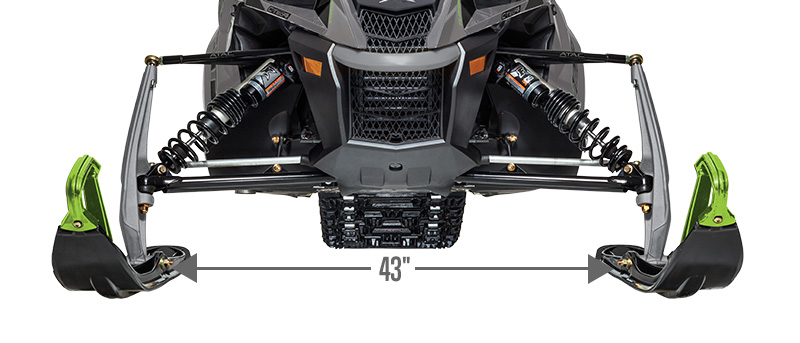

43" Ski Stance

Provides the control you need for any ride.

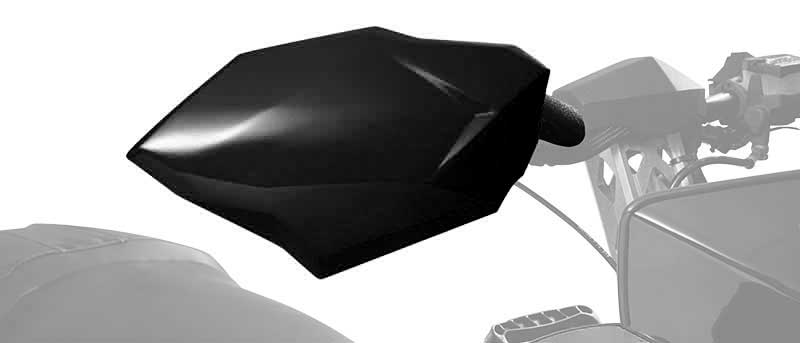

Handguards

The durable, injection-molded plastic guards keep your hands safe from debris and warm on the trail.

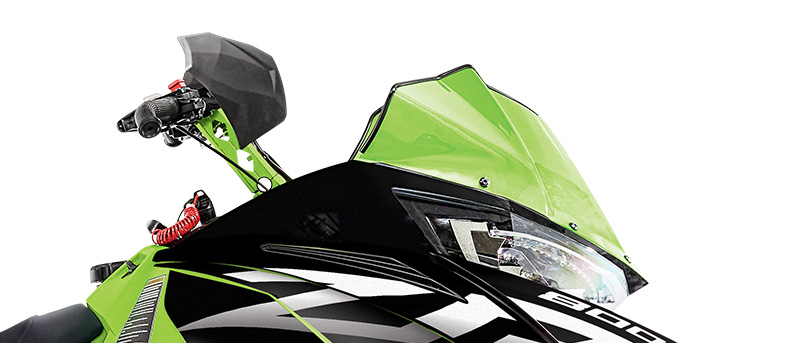

5.5" Race-Height Windshield

A lower-profile, race-ready windshield gives you a new level of visibility.

Vehicle Specs

Print Specs

	ZR 6000 R XC
Engine Type	6000 C-TEC2, 2-Stroke
Displacement	599cc
Cooling	Liquid
Cylinders	2
Bore x Stroke	73.8 x 70 mm
Lubrication	Electronic Injection
Ignition	Digitally Controlled CDI
Engine Stator Output	270 W @ 3000 RPM
Fuel Delivery	Dual Stage Injection
Exhaust	APV with Tuned Pipe, Pipe Sensor and Lightweight Muffler
Fuel Capacity	11.7 gal.
Oil System Capacity	3.25 qt.
Coolant System Capacity	6 qt.
Minimum Octane	91

	ZR 6000 R XC
Drive Clutch	TEAM Rapid Response II
Driven Clutch	TEAM TS-273
Drive System	Arctic Drive System
Brakes	Stealth Hydraulic Master Cylinder
Clutch Calibration	0-5,000 ft.
Gearing	21/41
Chain Pitch	86
Track Drive Sprocket	9 Tooth, 2.86 Pitch, Exvolute
Reverse	Push-Button Engine

	ZR 6000 R XC
Front Suspension	Arctic Race Suspension (ARS) II
Ski Shocks	FOX 1.5 ZERO QS3R KASHIMA
Sway Bar	Standard
Front Travel	9 in.
Rear Suspension	SLIDE-ACTION with 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm and Adjustable Torsion Springs
Front Track Shock	FOX 1.5 ZERO QS3 KASHIMA
Rear Track Shock	FOX 1.5 ZERO QS3R KASHIMA
Rear Travel	13.5 in.

	ZR 6000 R XC
Overall Chassis Length	127 in.
Overall Chassis Width	48.75
Overall Chassis Height	46.5 in.
Estimated Dry Weight	487 lbs.
Track Type	Cobra
Track Width	15 in.
Track Length	137 in.
Lug	1.35 in.
Pitch	2.86 in.
Ski Stance	42.5-43.5 in.- Adjustable
Ski Type/Width	Trail - 5 in.
Runner Type	Single Runner with Carbide

	ZR 6000 R XC
Type of Gauge	Deluxe Digital
Speedometer	Digital
Tachometer	Digital
Odometer	Digital
Fuel	Digital
Oil	Indicator Light
Coolant	Digital/Indicator Light
Clock	Digital
Battery Voltage	Digital
Altimeter	Digital
Hours	Digital

	ZR 6000 R XC
Color	Medium Green
Heat Exchanger	Front/Long Tunnel
Starter	Manual
Handlebars	Hooked, 5.5 in. Riser
Lighting	LED with Accent Light
Seating	High Performance Race
Storage Components	Tunnel Bag
Additional Accessories	Goggle Holder, Heated Drivers Seat, Ice Scratchers, Mirrors, Passenger Seat, Rear Rack, Side Panel Wind Deflectors, Sno Pro Hooked Brake Lever, Tow Hitch, Tunnel Flare, Visor Plug-Ins
Standard Accessories	12V Outlet, Handguards, Hand and Thumb Warmers, Sport Front Bumper, Lightweight Performance Brake Disc, Standard Steering, Tether Switch, Tunnel Bag, Hand Guards
Windshield	5.5 in. Race Height

Vehicle specifications are subject to change.

*Price includes a one year warranty. Price does not include freight or set-up fees.

WARNING: Arctic Cat snowmobiles can be hazardous to operate. For your safety, all riders should read and understand their owner’s manual and safety instructions. Always wear an approved helmet and other safety apparel. Be aware of natural hazards you may encounter and don’t drink and ride. All scenes depicted or described were performed by professional riders under carefully controlled conditions. Never attempt to duplicate these maneuvers or encourage others to do so. Arctic Cat recommends that all operators take a safety training course. For safety and training information, please see your local dealer.

ZR R XC

Highlights

Race-Developed

FOX 2.0 ZERO RC

ARS II

FOX 1.5 ZERO
