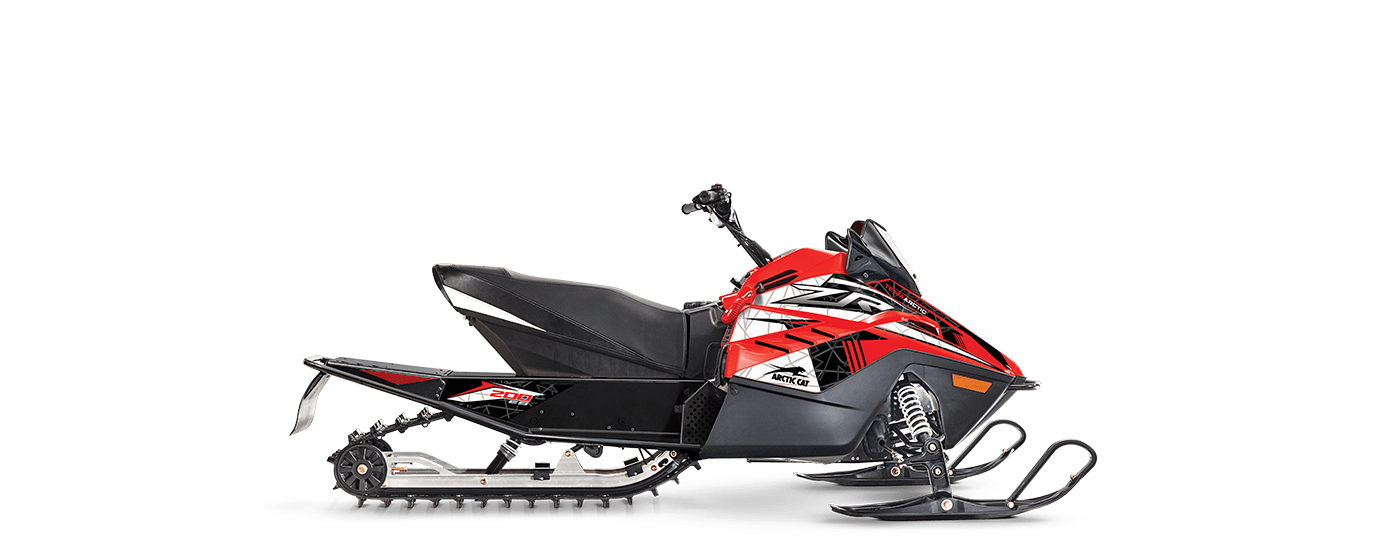

ZR 200

Trail-Certified, High-Performance Youth Snowmobile

For young riders who are ready to hit the trail with their parents, tackle deep snow or cruise the backyard, ZR® 200 is the ultimate ride. It’s SSCC trail-certified and features electric start to deliver the next level of snowmobile experience.

Highlights

Trail-Certified

Performance

192cc

4-Stroke Engine

Cobra Track

For Unparalleled Control

Slide-Rail

Rear Suspension

Turn-Key

Electric Start

ZR 200

Trail-certified youth sled with a 192cc engine and electric start.

ZR 200

Vehicle Specs

ZR 200 ES
Engine Type 200, 4-Stroke
Displacement 192cc
Cooling Air
Cylinders 1
Bore x Stroke 70 x 50 mm
Lubrication Oil Sump
Ignition CDI
Engine Starter Output 96 W @ 3000 RPM
Fuel Delivery BS-25 Carburetor
Exhaust Muffler
Fuel Capacity 2.2 gal.
Oil System Capacity 0.6 qt.
Coolant System Capacity N/A
Minimum Octane 87
ZR 200 ES
Drive Clutch Arctic 5.25 in. diameter (RPM Sensing)
Driven Clutch 6.75 in. diameter Arctic (Roller Cam)
Drive System Arctic 200 Drive System
Brakes Hydraulic Brake/Disc on Driveshaft
Clutch Calibration 0-5,000 ft.
Gearing N/A
Chain Pitch N/A
Track Drive Sprocket 5 Tooth, 2.59 Pitch, Exvolute
Reverse N/A
ZR 200 ES

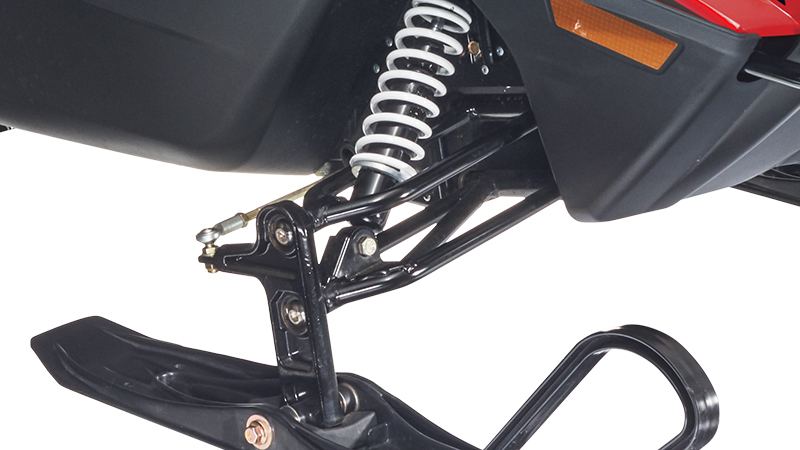

Front Suspension Arctic Wishbone Suspension (AWS)
Ski Shocks Hydraulic Twin Tube
Sway Bar N/A
Front Travel 4.5 in.
Rear Suspension Slide-Rail, Adjustable Torsion Spring, Coil-Over Rear Shock
Front Track Shock N/A
Rear Track Shock Hydraulic Twin Tube
Rear Travel 8.5 in.
ZR 200 ES
Overall Chassis Length 84 in.
Overall Chassis Width 35-37 in.
Overall Chassis Height 36 in.
Estimated Dry Weight 210 lbs.
Track Type Cobra™
Track Width 10 in.
Track Length 93 in.
Lug 1 in.
Pitch 2.59 in.
Ski Stance 29.5-31.5 in. - Adjustable
Ski Type/Width Youth - 5 in.
Runner Type Single Runner
ZR 200 ES
Type of Gauge N/A
Speedometer N/A
Tachometer N/A
Odometer N/A
Fuel N/A
Oil N/A
Coolant N/A
Clock N/A
Battery Voltage N/A
Altimeter N/A
Hours N/A
ZR 200 ES
Color Charcoal/Black, Charcoal/Lime, Fire Red
Heat Exchanger N/A
Starter Electric - Key
Handlebars Straight
Lighting Halogen 1-Bulb
Seating Youth 200
Storage Components Accessory
Additional Accessories Handguards, Rear Rack
Standard Accessories Brake Disc, Hand Warmers, Steering, Tether Switch, Youth Front Bumper
Windshield 4 in. Low-Height
