In-Season Model

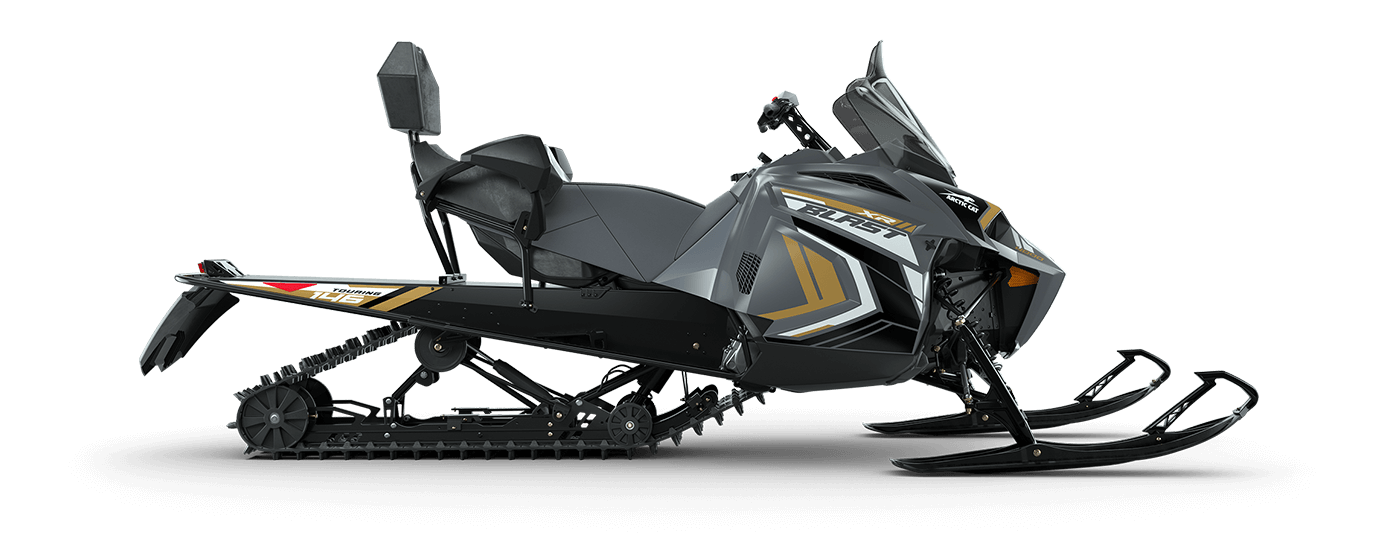

BLAST XR TOURING

A Mid-Sized Touring Sled Built for Two

BLAST XR TOURING

BLAST XR comes standard with crossover versatility. Equipped with slide-rail, dual shock rear suspension, and a non-articulating twin rail frame, it makes it easier for all types of riders to face the most challenging of terrain. Overload springs help support an additional passenger with standard 2-up seating.

Highlights

Lightweight, Mid-Sized

Chassis

Single-Cylinder

2 EFI Engine

2-Up

Seating

Turn-Key

Electric Start

Slide-Rail

Suspension

BLAST XR 4000 Touring

The same features as the BLAST XR 4000 (a 400cc single-engine EFI 2-stroke engine), but with a 40" wide front suspension and sway bar giving it added stability for 2-up seating and higher windshield that allows you to take the scenic route.

BLAST XR 4000 Touring
SINGLE CYLINDER 2-STROKE EFI ENGINE

With an industry-first design that's compact and lightweight (under 50 pounds), this EFI engine brings 65-hp (397cc) performance to every ride. A 3-stage exhaust valve system take this power to the next level, delivering improved throttle response and better overall engine performance. As a liquid-cooled engine, it thrives in low-snow conditions -- and a counterbalance shaft eliminates most engine vibration. The result -- a lightweight-but-mighty power source that fuels a ride like no other

BLAST XR Touring Slide Rail Suspension
BLAST XR Mid Size Chassis
Blast XR Overload Springs
BLAST XR Touring Windshield
BLAST XR Digital Gauge
60th Anniversary Decal
BLAST XR Electric Start
Best In Class Power to Weight Ratio Blast XR

BLAST XR Touring

BLAST XR Touring

Vehicle Specs

Print Specs

Engine

BLAST XR BLAST XR TOURING
Engine Type 4000 Series, 2-Stroke
Displacement 397cc
Cooling Liquid
Cylinders 1
Bore x Stroke 85 x 70 mm
Lubrication Electronic Injection
Ignition Digitially Controlled CDI
Engine Stator Output 270W @ 3000 RPM
Fuel Delivery Electronic Fuel Injected (EFI)
Exhaust APV with Tuned Pipe, Pipe Sensor, Manifold and Stainless Steel Muffler
Fuel Capacity 11.7 gal.
Oil System Capacity 3.25 qt.
Coolant System Capacity 5.0 qt.
Minimum Octane 91

Powertrain

BLAST XR BLAST XR TOURING
Drive Clutch CVTech Trailbloc
Driven Clutch CVTech Invance
Drive System Arctic Drive System
Brakes Stealth Hydraulic Master Cylinder w/ Lightweight Caliper
Clutch Calibration 0-5,000 ft.
Gearing 19/50
Chain Pitch 90
Track Drive Sprocket 8 Tooth, 2.86 pitch, Involute
Reverse Push-Button Engine

Suspension

BLAST XR BLAST XR TOURING
Front Suspension Arctic Mountain Suspension (AMS)
Ski Shocks Hydraulic Twin Tube
Sway Bar N/A Standard
Front Travel 7.2 in.
Rear Suspension Slide-Rail, Dual Shock and Adjustable Torsion Springs Slide-rail, dual shock, adjustable torsion springs and overload springs
Front Track Shock Hydraulic Twin Tube
Rear Track Shock Hydraulic Twin Tube
Rear Travel 12.5 in.

Dimensions

BLAST XR BLAST XR TOURING
Overall Chassis Length 128 in.
Overall Chassis Width 44-45 in. 46-47 in.
Overall Chassis Height 50.5 in.
Track Type Cobra Ripsaw
Track Width 15 in.
Track Length 146 in.
Lug 1.60 in. 1.25 in.
Pitch 2.86 in.
Ski Stance 37.5-38.5 in. Adjustable 39.5-40.5 in. Adjustable
Ski Type/Width Trail - 6 in.
Runner Type Single Runner

Instrumentation

BLAST XR BLAST XR TOURING
Type of Gauge Digital
Speedometer Digital
Tachometer Digital
Odometer Digital
Fuel Digital
Oil Indicator Light
Coolant Indicator Light
Clock N/A
Battery Voltage N/A
Altimeter N/A
Hours Digital

Features

BLAST XR BLAST XR TOURING
Color Black/Gold
Heat Exchanger Front/ Long Tunnel
Starter Turnkey Electric Start
Handlebars Hooked with Grab Handle, 4.5 in. Riser
Lighting Halogen 1-Bulb
Seating Mid-Size
Storage Components
Additional Accessories Front Bumper, Goggle Holder, Handguards, Ice Scratchers, Mirrors, Rear Rack, Rear Storage, Sno Pro Brake Lever, Tow Hitch
Standard Accessories Hand & Thumb Warmer, Tether Switch
Windshield 4 in. Low-Height 15.5 in. High Height
