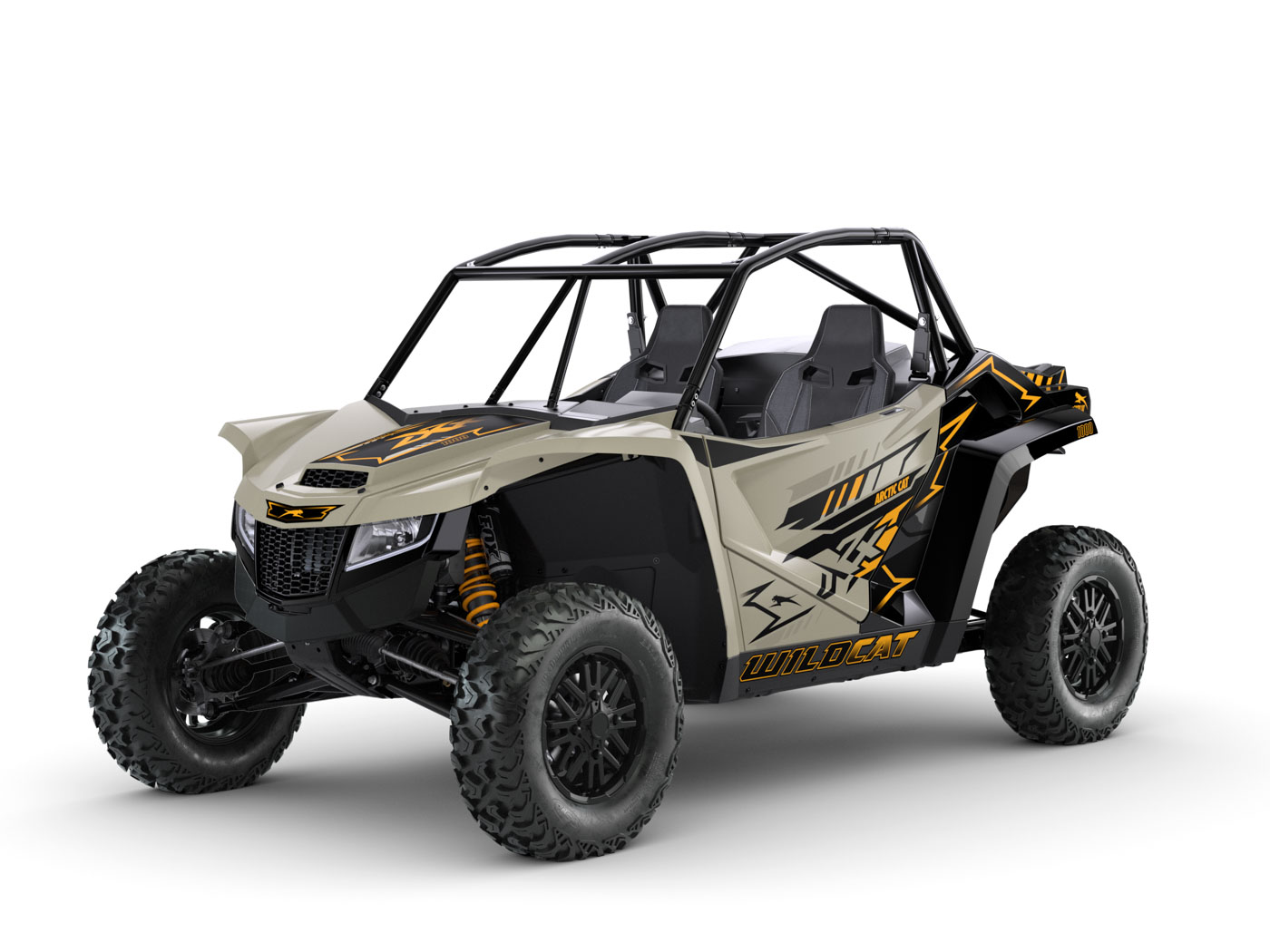

Wildcat XX
High-Octane Thrills Await
Your side-by-side should be able to match your love of tight turns, big bumps, and rough roads. Luckily, the Wildcat XX was built to conquer it all. Take your ride to the next level with a side-by-side ready to tackle extreme terrain and built for effortless handling and maneuverability.
Watch Video
DOMINATE ANY TERRAIN
OFF-ROAD RACING INSPIRED SUSPENSION SYSTEM
The Wildcat XX utilizes a unique suspension system built specifically to dominate uneven terrain. With unequal length A-Arms that neutralize camber and the industry's only true trailing arms, this side-by-side is able to gain more traction and stabilize easier through tough turns and tougher trails.
SUPPORT FOR ALL RIDES
PREMIUM FOX 2.5 PODIUM QS3 SHOCKS WITH BOTTOM-OUT CONTROL
With the Wildcat XX, you won't have to compromise between shocks that can absorb big bumps and shocks that offer a more comfortable ride- we gave the side-by-side both. A three-position shock dial control lets you switch from soft, medium, and firm settings depending on the terrain, and with bottom-out control, you'll get an extra 3,000 lbs of damping force when you hit bumps in the trail.
RACE-WORTHY POWER
CLASS-LEADING 130HP ENGINE
Equipped with a class-leading 998cc, three cylinder, 4-stroke EFI engine producing 130HP, the Arctic Cat Wildcat XX is built to push the limits. The powerful DOHC engine allows for better airflow with fewer obstructions and offers more efficient, consistent performance. With power like this, prepare for exhilaration.
SMOOTH POWER DELIVERY
ADAPT CVT CLUTCH
New Drive and Driven clutches are lighter-weight and employ a compact design with advanced idler system. ADAPT maintains constant belt tension throughout the RPM range resulting in minimized wear, maximum throttle response and longer belt life for your Wildcat XX.
UNBEATABLE STRENGTH
DURABLE COMPONENTS
Rocks and dunes aren’t for the weak. That’s why we loaded Wildcat XX with unstoppable features to help you get the most out of every ride.
ADAPTABLE CONTROL

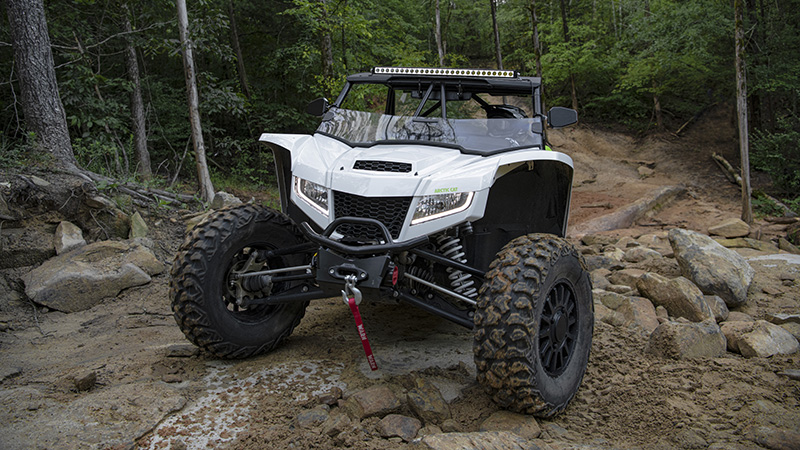

SHIFT ON THE FLY 4WD WITH LOCKING FRONT DIFFERENTIAL
With Arctic Cat's proven 2/4-Wheel Drive selectability, navigating the world's boldest terrain is a cinch. Need more? 4WD Diff Lock can aid in the Wildcat's superior rock-crawling prowess.
INCREASED STRENTH AND PERFORMANCE
NEW TRANSAXLE
With our new transaxle offering increased strength and durability, your Wildcat XX will be ready to conquer dunes, dirt, mud and rocks without sacrificing rider confidence or maneuverability.
ELEVATE YOUR RIDE
14-INCH GROUND CLEARANCE
You want a side-by-side that will stay high above any terrain, so you can leave obstacles, and the competition, in the dust. The Wildcat XX is ready with 14-inch ground clearance to avoid unwanted debris and keep you above the rest.
KEEP COOL
DUAL CVT AIR-INTAKE
Those long days of riding can get warm, but that doesn't mean your vehicle has to. The Wildcat XX's dual CVT air-intake will keep your CVT belt cool and extend its life, even on the hottest days.
SAFETY FIRST
RACE-INSPIRED ROPS
You want to take on the toughest challenges with your Wildcat XX. Luckily, we've got you covered with our durable roll-over protection system. Take your side-by-side to the extremes while staying safe with safety features that keep up with your riding style.
STAY PROTECTED

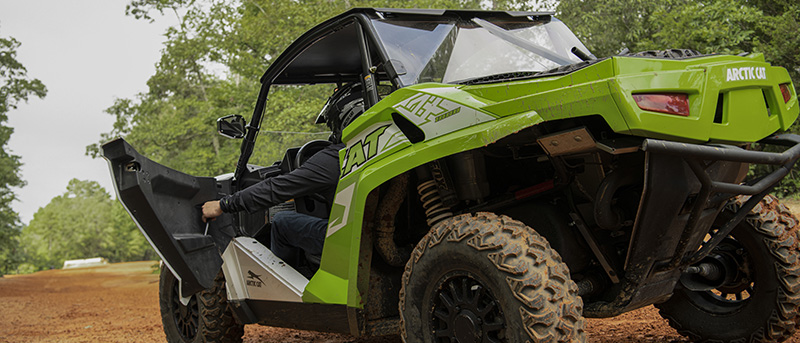

STANDARD FULL DOORS
The Wildcat XX gives you added protection from the elements with its full-length hard doors. Give your ride the added measures it needs to block rocks, dirt, and other debris from reaching the cab.
BLOCK OUT DEBRIS
OVERSIZED FENDERS
We know as well as anyone that you don't want a ton of dust and debris in the cab of your side-by-side. Our oversized fenders over each wheel prevent that from happening, keeping you covered while you ride.
NO ROUGH RIDES
18 INCHES OF FRONT AND REAR TRAVEL
Wildcat XX doesn’t flinch at a bump in the road. It has more than enough travel to tame any terrain by dampening the impact of uneven trails.
KEEP YOUR GRIP
PREMIUM TIRES AND WHEELS
Equipped with 30-inch Behemoth tires, the Wildcat XX is designed to keep hold as you navigate all kinds of terrain. Combined with 15-inch custom wheels, this side-by-side gives ample ground clearance and plenty of traction while you hit the trails.
STORE MORE
300-LB BED CAPACITY
Nobody wants to be caught without the essentials on a long riding day. The Wildcat XX allows you to fit everything you need with a bed large enough to fit a full-sized spare tire.
Easy to Service
REMOVABLE COMPONENTS
We're making it easier than ever to service your Wildcat XX. Toolless and removable components give you quick access for easy serviceability to get you back out on your unit faster than ever before.
PROTECT YOUR RIDE
6-MONTH WARRANTY
We want you to be prepared for anything, so we've equipped you with a robust 6-month warranty.
Shopping Tools
Wildcat XX
Vehicle Specs
Print Specs- Engine & Drivetrain
- Steering & Suspension
- Performance
- Electrical
- Dimensions
- Color Options
- Features
- Warranty
Engine & Drivetrain
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Engine Type
|
Liquid-Cooled, 3 Cylinder | ||
|
Horsepower
|
130HP | ||
|
Displacement
|
998cc | ||
|
Drive Train
|
ADAPT CVT | ||
|
Drive System
|
2WD / 4WD Electric Actuation, with Selectable Front Diff Lock | ||
|
Fuel System
|
EFI (Electronic Fuel Injection) | ||
|
Gear Selection
|
H/L/N/R/P | ||
|
Front Differential
|
2WD / 4WD Selectable Locker | ||
|
Rear Differential
|
Locked | ||
Steering & Suspension
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Steering
|
Electronic Power Steering | ||
|
Front Suspension
|
Double A-Arm with 18-in. (46 cm) Travel | ||
|
Rear Suspension
|
Trailing Arm with 18-in. (46 cm) Travel | ||
|
Shock Absorbers
|
FOX 2.5 PODIUM QS3 with Compression Adjustment (Front) FOX 2.5 PODIUM QS3 with Compression Adjustment and Bottom-Out Control (Rear) | ||
|
Brake System
|
4 Wheel Hydraulic Disc, Dual Piston Caliper Front, Single Piston Caliper Rear | ||
|
Parking Brake
|
Park in Transmission | ||
|
Front Tires
|
CST Behemoth / 30x10-15 | ||
|
Rear Tires
|
CST Behemoth / 30x10-15 | ||
|
Wheels
|
15" Aluminum | ||
Performance
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Total Capacity
|
730 lbs (331 kg) | ||
|
Bed Capacity
|
300 lbs (136 kg) | ||
Electrical
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Alternator (Electrical Charging System)
|
470 Watt Stator and 65 Amp Alternator | ||
|
Accessory Connection System
|
Pre-Wired Connections for up to 8 Accessories (4 Switch & 4 Key-on) | ||
Dimensions
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Overall Length
|
136 in. (345.4 cm) | ||
|
Overall Width
|
64 in. (162.6 cm) | ||
|
Overall Height
|
67.5 in. (171.5 cm) | ||
|
Overall Weight (Dry)
|
1,816 lbs (823.7 kg) | ||
|
Wheelbase
|
95 in. (241.3 cm) | ||
|
Ground Clearance
|
15 in. (38.1 cm) | ||
|
Fuel Capacity
|
10 gal (37.9 L) | ||
|
Hitch
|
Not Equipped | ||
|
Glove Box Capacity
|
4 gal (15.1 L) | ||
|
Bed Dimensions (L x W x H)
|
34 x 32 x 9 in. (86.4 x 81.3 x 22.9 cm) | ||
Color Options
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Standard Colors
|
Fossil | Black | Phantom Grey |
Features
| Wildcat XX | Wildcat XX LTD | Wildcat XX SE | |
|---|---|---|---|
|
Skid Plate
|
Full Length, 2 Piece | ||
|
Standard Instrumentation
|
Multifunction Digital Gauge | ||
|
Lighting
|
Halogen with LED Accetn, Dual LED Tail Lights | ||
|
Start Method
|
Electric Start | ||
|
Seating
|
Stitched, Two-Tone, Contoured Bucket Seats, 3 Point Seat Belts | ||
|
Storage Components
|
Cargo Bed, Glove Box | ||
|
Additional Features
|
Standard Full Doors, Race Inspired ROPS with Front and Rear Intrusion Bars | ||
|
Standard Accessories
|
Color Matched Suspension | Front and Rear Bumpers, Color Matched ROPS and Suspension | Front Bumper, Rear Bumper, Rock Sliders, Color Matched Rops and Suspension |
